Groupset
SRAM GX
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
17,7 kg
Front travel
203mm
Rear travel
200mm

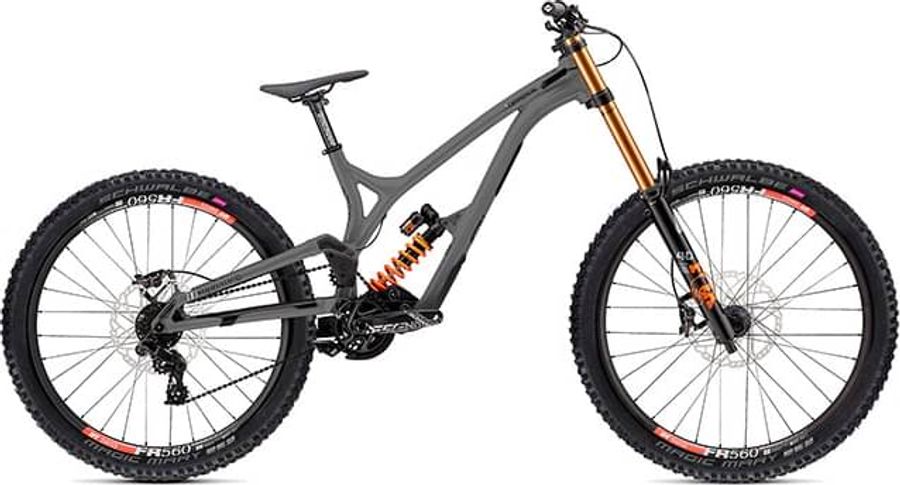

About the Commençal SUPREME DH TEAM 2022
The Commençal SUPREME DH TEAM 2022 is a Full suspension Downhill Mountain Bike with a alloy frame. Equipped with a SRAM GX drivetrain of 7 gears (1x7). Its features include boost 110 e hydraulic disc brakes. The bike weighs approximately 17,7 kg.
Features
Boost 110
More info
Boost 110
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Grip
|
ODI Elite Motion, Soft pro compound, single clamp, black
|
|---|
|
Steam
|
RIDE ALPHA DH 40, 40 mm extension, direct mount, 31.8 mm
|
|---|---|
|
Saddle
|
FIZIK Gravita Alpaca X5, MG rails, flexible "wings"
|
|
Headset
|
ACROS ZS56 / ZS56, Alloy cups, sealed bearings
|
|
Seatpost
|
TRUVATIV Descendant DH, 31.6 mm, 250 mm, Alloy 7075
|
|
Handlebar
|
RIDE ALPHA R27, 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on S / M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL
|
|
Brakes
|
Shimano Deore XT BR-M8000
403 (BL-M8000) g
Hydraulic disc brake
2 piston
|
|
G03A Resin J03A Resin BL-T8000 SM-RT86 |
|
|
Crankset
|
TRUVATIV Descendant DH, 165 mm crank arms, DUB, Chainring: TRUVATIV Descendant DH X-Sync, 34t
|
|---|---|
|
Shifter
|
SRAM GX DH, 7 sp
|
|
Chain guide
|
E13 LG1 + Bottom Guide, 28-34t
|
|
Bottom bracket
|
SRAM DUB, Pressfit
|
|
Rear derailleur
|
SRAM GX DH
7s
|
|
|
|
|
Cassette
|
SRAM GX DH
|
|
Chain
|
KMC X11
|
|
Frame
|
2022 Supreme DH 29/27, 200 mm travel on S / M / L - 2022 Supreme DH 29, 200 mm travel on XL, 29'', Alloy 6066, triple butted tubes, T4, T6. Enduro bearings
|
|---|---|
|
Front suspension
|
Fox 40 Factory
|
|
Rear suspension
|
Fox DHX2 Factory
|
|
Rims
|
DT SWISS FR560, REAR: 27.5'', 32h, 30 mm inner width on S / M / L - 29'', 32h, 30 mm inner width on XL - FRONT: 29'', 32h, 30 mm inner width on S/M/L/XL
|
|---|---|
|
Tires
|
Rear: SCHWALBE Magic Mary - Front: SCHWALBE Magic Mary, REAR: 27.5'' x 2.4'', Super DH, Addix Ultra Soft on S / M / L - 29" x 2.4", Super DH, Addix Ultra Soft on XL - FRONT: 29" x 2.4", Super DH, Addix Ultra Soft on S / M / L / XL
|
|
Rear hub
|
Rear: DT SWISS 350 - Front: DT SWISS 350, Rear: 32h, sealed bearings, 12 x 150 mm, black - Front: 32h, sealed bearings, 20 x 110 mm Boost, black
|
|
Front hub
|
Rear: DT SWISS 350 - Front: DT SWISS 350, Rear: 32h, sealed bearings, 12 x 150 mm, black - Front: 32h, sealed bearings, 20 x 110 mm Boost, black
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
400,0
|
400,0
|
400,0
|
400,0
|
|
b
Seat tube angle
|
65,5º
|
65,5º
|
65,5º
|
66,5º
|
|
c
Top tube length
|
596,0
|
614,0
|
645,0
|
665,0
|
|
d
Head tube length
|
112,0
|
112,0
|
112,0
|
112,0
|
|
e
Head tube angle
|
62,7º
|
62,2º
|
62,2º
|
63,8º
|
|
f
Rake
|
51,0
|
51,0
|
49,0
|
56,0
|
|
g
Trail
|
126,0
|
130,0
|
132,0
|
113,0
|
|
h
Wheelbase
|
1256,0
|
1290,0
|
1320,0
|
1301,0
|
|
i
Chainstay length
|
448,0
|
456,0
|
456,0
|
433,0
|
|
j
Bottom bracket drop
|
3,0
|
2,0
|
2,0
|
11,5
|
|
k
Stack height
|
634,0
|
631,0
|
631,0
|
632,0
|
|
l
Reach
|
425,0
|
445,0
|
477,0
|
500,0
|
|
m
Standover height
|
-
|
-
|
-
|
-
|
|
x
Bottom bracket height
|
352,0
|
353,0
|
353,0
|
344,0
|
|
y
Front center
|
808,0
|
834,0
|
864,0
|
868,0
|
