Commençal SUPREME DH V4.2 ESSENTIAL 2018

MTB Downhill
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Weight
17,5 kg
Front travel
200mm
Rear travel
220mm

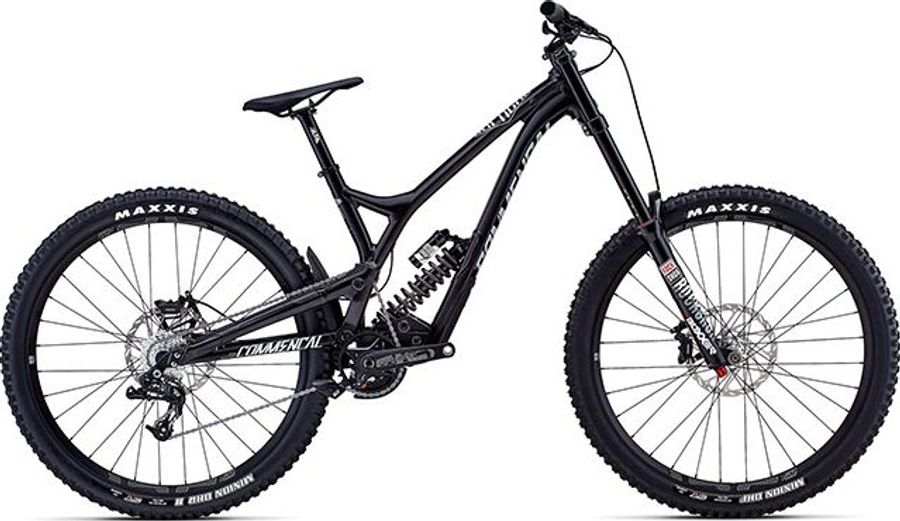

Commençal SUPREME DH V4.2 ESSENTIAL 2018

About the Commençal SUPREME DH V4.2 ESSENTIAL 2018

The Commençal SUPREME DH V4.2 ESSENTIAL 2018 is a Full suspension Downhill Mountain Bike with a alloy frame. Its features include hydraulic disc brakes. The bike weighs approximately 17,5 kg.

Features

The Commençal SUPREME DH V4.2 ESSENTIAL 2018 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
RIDE ALPHA, ergonomic grips, plastic one lock, super soft compound
Components
Steam
RIDE ALPHA DH Direct Mount, 50 mm, 31.8 mm
Saddle
RIDE ALPHA 245 mm saddle, CrMo rails
Headset
RIDE ALPHA, semi integrated, COMMENCAL standard
Seatpost
NEW RIDE ALPHA DH, 31.6 mm, no offset, 300 mm
Handlebar
RIDE ALPHA, Alloy 7075, double butted, 30 mm rise, 780 mm, 31.8 mm
Brakes
SRAM Guide RE Hydraulic 415 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-RE-A1
Name
Guide RE
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor (TARGET)
Weight
415
Drivetrain
Chain
YABAN S9
Crankset
E13 LG1, 34T
Shifter
SRAM X5, 9 speed
Chain guide
E13 LG1+ WideGuide, Alloy
Bottom bracket
E13 Pressfit BB 92
Cassette
SRAM PG-950 9s
Cog finish cassete
Silver
Cog sizes
11-26t:11,13,14,15,17,19,21,23,26
11-28t:11,12,13,14,16,18,21,24,28
11-32t:11,12,14,16,18,21,24,28,32
11-34t:11,13,15,17,20,23,26,30,34
12-23t:12,13,14,15,16,17,19,21,23
12-26t:12,13,14,15,17,18,21,23,26
Gearing
11-26t
11-28t
11-32t
11-34t
12-23t
12-26t
Model
CS-PG-950-A1
Name
PG-950 Cassette
Speed
9s
Technology cassete
PG
Rear derailleur
SRAM X7 Rear Derailleur 10s, 9s
Cable pull ratio
1:1, Exact actuation
Cage
Long, Medium, Short
Cage material
Aluminum, Carbon
Color
Black, Grey, Silver, Storm Grey
Max tooth
36
Model
RD-X7-A1
Name
X7 Rear Derailleur
Pulley bearings material
Standard, Steel
Speed
10s, 9s
Frameset
Frame
2018 SUPREME V4.2 650B alloy 6066 hydroformed 220 mm travel
Rear suspension
RockShox Vivid R2C 468 g
Body eyelet
Standard
Compression tune
H, L, L3, M
Eye to eye stroke
200x57, 216x63, 222x70, 240x76, 267x89
Model
RS-VIVC-R2C-B3
Name
Vivid R2C
Shaft eyelet
Standard
Weight based on
216x63, no coil, no hardware
Weight
468
Front suspension
RockShox Boxxer Team Coil
Color
Diffusion Black, Gloss Black, Gloss White
fork offset
42mm, 48mm
Maximum rotor size
210mm
Minimum rotor size
160mm, 200mm
Model
FS-BXR-TEAM-A2
Name
BoXXer Team
Spring
Coil
Travel (mm)
200mm
Upper tube type
35mm tapered aluminum
Wheel size
26", 27.5"
Wheels
Rims
E13 LG1 Alloy 32h, 30 mm inner width
Tires
MAXXIS MINION DHF 27.5" x 2.5" WT, 2 compound DH Casing front and MAXXIS MINION DHRII 27.5" x 2.4" WT 2 compound DH Casing rear
Rear hub
FORMULA DH, 32 holes, sealed bearings
Front hub
FORMULA DH, 32 holes, sealed bearings

Geometry

Size SM MD LG XL XXL
a
Seat tube length
400,0
400,0
400,0
400,0
400,0
b
Seat tube angle
66,0º
66,0º
66,0º
66,0º
66,0º
c
Top tube length
548,0
575,0
600,0
625,0
665,0
d
Head tube length
108,0
108,0
118,0
118,0
118,0
e
Head tube angle
63,0º
63,0º
63,0º
63,0º
63,0º
f
Rake
46,0
49,0
54,0
54,0
54,0
g
Trail
139,0
136,0
130,0
130,0
130,0
h
Wheelbase
1163,0
1192,0
1222,0
1247,0
1272,0
i
Chainstay length
425,0
425,0
425,0
425,0
425,0
j
Bottom bracket drop
5,0
5,0
5,0
5,0
5,0
k
Stack height
607,0
607,0
607,0
607,0
607,0
l
Reach
380,0
405,0
430,0
455,0
480,0
m
Standover height
703,0
703,0
703,0
703,0
703,0
x
Bottom bracket height
369,0
369,0
369,0
369,0
369,0
y
Front center
738,0
767,0
797,0
822,0
847,0
