Commençal SUPREME DH V4.2 RACE FOX 2018

MTB Downhill
Groupset
SRAM GX
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Weight
16,4 kg
Front travel
200mm
Rear travel
220mm

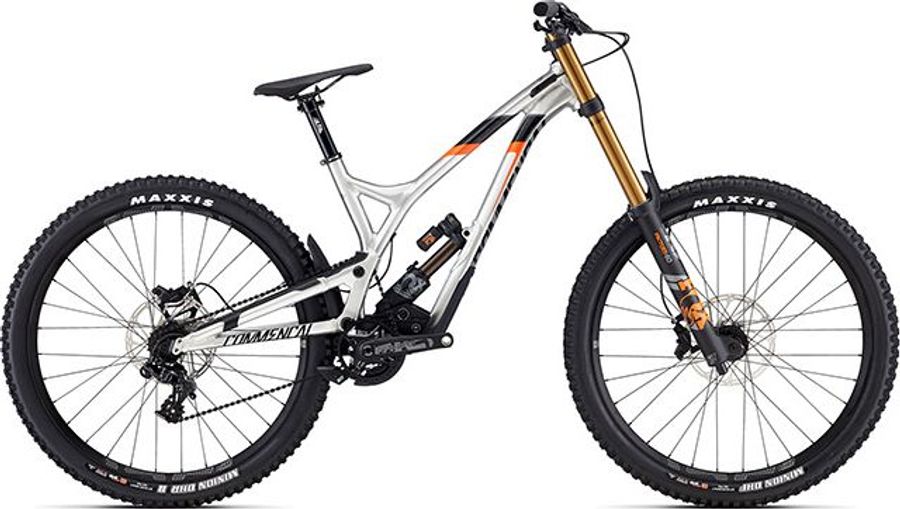

Commençal SUPREME DH V4.2 RACE FOX 2018

About the Commençal SUPREME DH V4.2 RACE FOX 2018

The Commençal SUPREME DH V4.2 RACE FOX 2018 is a Full suspension Downhill Mountain Bike with a alloy frame. Equipped with a SRAM GX drivetrain. Its features include hydraulic disc brakes. The bike weighs approximately 16,4 kg.

Features

The Commençal SUPREME DH V4.2 RACE FOX 2018 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
RIDE ALPHA, ergonomic grips, alloy one lock, super soft compound
Components
Steam
RIDE ALPHA DH Direct Mount, 50 mm, 31.8 mm
Saddle
RIDE ALPHA 245 mm saddle, Ti-Alloy rails
Headset
RIDE ALPHA, semi integrated, COMMENCAL standard
Seatpost
NEW RIDE ALPHA DH, 31.6 mm, no offset, ultra light, 300 mm
Handlebar
RIDE ALPHA, Alloy 7075, double butted, 30 mm rise, 780 mm, 31.8 mm
Brake lever
SRAM Code R
Brakes
SRAM Code R Hydraulic
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (203mm DIR to 220mm Rotor - 17mm bracket) 17P, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Dark Grey Paint, Diffusion Black
Model
DB-CODE-R-B1
Name
Code R
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Drivetrain
Crankset
E13 LG1, 34T
Cassette
E13, 7 speed, 9–21T
Shifter
SRAM GX DH, 7 speed
Chain guide
E13 LG1+ WideGuide
Bottom bracket
E13 Pressfit BB 92
Rear derailleur
SRAM GX DH 7s
Cable pull ratio
Exact actuation
Cage
Medium
Cage material
Aluminum
Color
Black
Max tooth
28
Model
RD-GX-1DH-A3
Name
GX DH 1x X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
7s
Chain
KMC X11
Frameset
Frame
2018 SUPREME V4.2 650B alloy 6066 hydroformed 220 mm travel
Front suspension
Fox 40 Float Factory
Rear suspension
Fox Float X2 Factory
Wheels
Rims
E13 LG1 WHEELSET, 32 holes, 30 mm inner width, with integrated cassette
Tires
MAXXIS MINION DHF 27.5" x 2.5" WT, 3C/TR DH Casing front and MAXXIS MINION DHRII 27.5" x 2.4" WT 3C/TR DH Casing rear
Spokes
e*thirteen
Rear hub
e*thirteen LG1 wheelset, integrated cassette
Front hub
e*thirteen LG1 wheelset, integrated cassette

Geometry

Size SM MD LG XL XXL
a
Seat tube length
400,0
400,0
400,0
400,0
400,0
b
Seat tube angle
66,0º
66,0º
66,0º
66,0º
66,0º
c
Top tube length
548,0
575,0
600,0
625,0
665,0
d
Head tube length
108,0
108,0
118,0
118,0
118,0
e
Head tube angle
63,0º
63,0º
63,0º
63,0º
63,0º
f
Rake
46,0
49,0
54,0
54,0
54,0
g
Trail
139,0
136,0
130,0
130,0
130,0
h
Wheelbase
1163,0
1192,0
1222,0
1247,0
1272,0
i
Chainstay length
425,0
425,0
425,0
425,0
425,0
j
Bottom bracket drop
5,0
5,0
5,0
5,0
5,0
k
Stack height
607,0
607,0
607,0
607,0
607,0
l
Reach
380,0
405,0
430,0
455,0
480,0
m
Standover height
703,0
703,0
703,0
703,0
703,0
x
Bottom bracket height
369,0
369,0
369,0
369,0
369,0
y
Front center
738,0
767,0
797,0
822,0
847,0
