BikeWise

CUBE ACCESS HYBRID ONE 400 2019

E-Bike
MTB Cross Country
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
27,5" / 29"
Suspension type
Hardtail
Weight
21,9 kg
Front travel
100mm

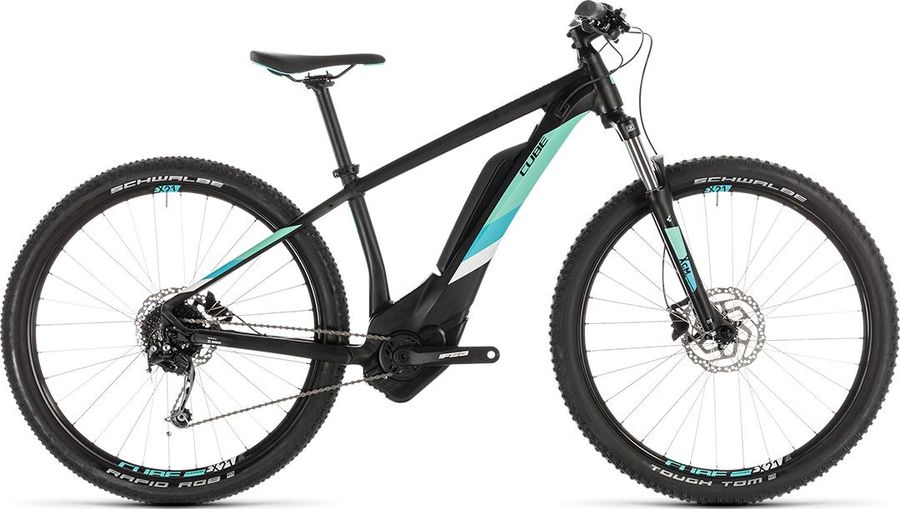

CUBE ACCESS HYBRID ONE 400 2019

About the CUBE ACCESS HYBRID ONE 400 2019

The CUBE ACCESS HYBRID ONE 400 2019 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 9 gears (1x9). Its features include internal routing, hydraulic disc brakes, and tapered head tube. The bike weighs approximately 21,9 kg.

Features

The CUBE ACCESS HYBRID ONE 400 2019 has 4 features listed below.
cabeamento-interno
Internal routing More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Natural Fit GRIP All Terrain
Pedals
CUBE PP MTB
Remote
Bosch Purion
Components
Steam
CUBE Performance Stem Pro, 31.8mm
Saddle
Natural Fit Active WS
Battery
Bosch PowerPack 400
Charger
Bosch 2A
Headset
FSA Orbit 1.5B ZS, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
Seatpost
CUBE Performance Post, 30.9mm
Handlebar
CUBE Rise Trail Bar, 680mm
Brakes
Shimano BR-MT200 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT200
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT201
BL-MT200
Recommended disc brake rotor
SM-RT10*
SM-RT26*
Drivetrain
Crankset
FSA CK-745, 15T, 175mm
Motor
Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt)
Shifter
Shimano SL-M3000, Rapidfire-Plus
Cassette
Shimano Altus CS-HG200-9 HG
Combination names
11-32T
11-34T
11-36T
Compatible chain
HG 9-speed
Lock ring finish
Phosphate coated
Lock ring material
Steel
Model
CS-HG200-9
Steel gear finish
Phosphate coated
Steel gear pieces
9
Type
HG
Rear derailleur
Shimano Deore RD-M592 SGS 9s
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Cable fixing bolt finish
Plated
Cable fixing bolt material
Steel
Compatible chain
HG 9-speed
Lower pulley max
36T
Lower pulley min
32T
Model
RD-M592-SGS
P axle material
Steel
Pulley bolts material
Stainless steel
Sunken type pulley bolt
Pulley teeth
11T
Pulley cage
SGS
Speeds
9
Upper pulley max
12T
Upper pulley min
11T
Total capacity
45T
Chain
KMC X9
Frameset
Frame
Aluminium Superlite, Gravity Casting, Agile Ride Geometry, Tapered Headtube, Internal Cable Routing, Semi-Integrated Battery
Front suspension
SR Suntour XCM
Wheels
Rims
CUBE EX21, 32H, Disc, Tubeless Ready
Tires
Schwalbe Tough Tom, Active, 2.25
Rear hub
Shimano FH-TX505, QR, Centerlock
Front hub
Shimano HB-TX505, QR, Centerlock

Geometry

Size 14" 16" 17" 19"
a
Seat tube length
365,0
395,0
405,0
450,0
b
Seat tube angle
73,5º
73,0º
73,0º
73,0º
c
Top tube length
549,0
554,0
574,0
594,0
d
Head tube length
105,0
115,0
115,0
120,0
e
Head tube angle
68,0º
68,0º
69,5º
70,0º
f
Rake
45,0
29,0
51,0
51,0
g
Trail
95,0
112,0
86,0
82,0
h
Wheelbase
1101,0
1085,0
1118,0
1133,0
i
Chainstay length
462,0
462,0
474,0
474,0
j
Bottom bracket drop
48,0
48,0
65,0
65,0
k
Stack height
587,0
596,0
634,0
641,0
l
Reach
374,0
371,0
380,0
398,0
m
Standover height
-
-
-
-
x
Bottom bracket height
307,0
307,0
309,0
309,0
y
Front center
643,0
627,0
652,0
667,0
