CUBE ACCESS HYBRID Race 500 2019

E-Bike
Women's Bike
MTB Cross Country
Groupset
Shimano XT
Frame material
Alloy
Wheel size
27,5" / 29"
Suspension type
Hardtail
Weight
21,7 kg
Front travel
100mm

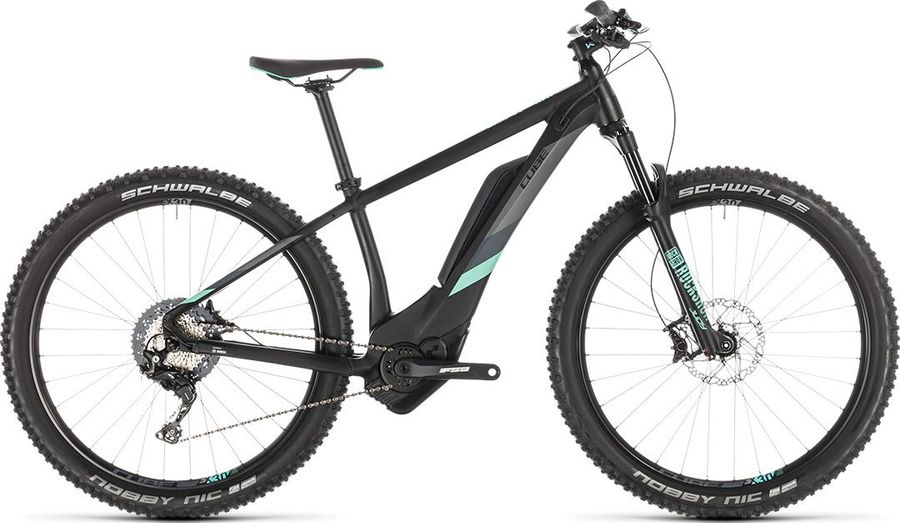

CUBE ACCESS HYBRID Race 500 2019

About the CUBE ACCESS HYBRID Race 500 2019

The CUBE ACCESS HYBRID Race 500 2019 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 11 gears (1x11). Its features include internal routing, boost 110 , and hydraulic disc brakes. The bike weighs approximately 21,7 kg.

Features

The CUBE ACCESS HYBRID Race 500 2019 has 5 features listed below.
cabeamento-interno
Internal routing More info
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Natural Fit GRIP All Terrain
Pedals
CUBE PP MTB
Remote
Bosch Purion
Components
Steam
Newmen Evolution 318.4, 31.8mm
Saddle
Natural Fit Active WS
Battery
Bosch PowerPack 500
Charger
Bosch 2A
Headset
FSA Orbit 1.5B ZS, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
Seatpost
CUBE Performance Post, 30.9mm
Handlebar
Newmen Evolution 318.10, 720mm
Brakes
Shimano Deore XT BR-M8000 403 (BL-M8000) g Hydraulic disc brake 2 piston
Average weight (g)
403 (BL-M8000)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SB
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
Model
BR-M8000
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
G04S Metal
Pad option
J04C Metal
Pad standard
G02A Resin
G03A Resin
Pad standard
J02A Resin
J03A Resin
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended brake lever
BL-M8000
BL-T8000
Recommended disc brake rotor
RT-MT800
SM-RT86
Drivetrain
Crankset
FSA CK-745, 15T, 175mm
Motor
Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt)
Shifter
Shimano SLX SL-M7000-I, Direct Attach
Rear derailleur
Shimano Deore XT RD-M8000-GS 271 g GS 11s
Average weight (g)
271
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-GS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
GS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
39T
Cassette
Shimano SLX CS-M7000-11 HG
Aluminum gear pieces
1 (11-40T)
1 (11-42T)
2 (11-46T)
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M7000-11
Steel gear finish
Shot-Ni
Steel gear pieces
10 (11-40T)
10 (11-42T)
9 (11-46T)
Type
HG
Weights
11-40T: 450g
11-42T: 476g
11-46T: 482g
Chain
KMC X11
Frameset
Frame
Aluminium Superlite, Gravity Casting, Agile Ride Geometry, Tapered Headtube, Internal Cable Routing, Semi-Integrated Battery
Front suspension
RockShox Judy Silver TK Solo Air
Color
Diffusion Black, Gloss Black
Damper type
TurnKey
fork offset
42mm (27.5"), 51mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-JDYS-TK-A2
Name
Judy Silver TK
Spring
Solo Air
Travel (mm)
100mm, 120mm, 130mm, 80mm
Upper tube type
30mm straight wall steel
Wheel size
27.5", 29"
Wheels
Rims
CUBE EX30, 32H, Disc, Tubeless Ready
Tires
Schwalbe Nobby Nic, PerfL, 2.60
Rear hub
Shimano FH-TX505, QR, Centerlock
Front hub
Shimano HB-MT400-B, 15QR, Boost, Centerlock

Geometry

Size 14" 16" 17" 19"
a
Seat tube length
365,0
395,0
405,0
450,0
b
Seat tube angle
73,5º
73,0º
73,0º
73,0º
c
Top tube length
549,0
554,0
574,0
594,0
d
Head tube length
105,0
115,0
115,0
120,0
e
Head tube angle
68,0º
68,0º
69,5º
70,0º
f
Rake
45,0
29,0
51,0
51,0
g
Trail
95,0
112,0
86,0
82,0
h
Wheelbase
1101,0
1085,0
1118,0
1133,0
i
Chainstay length
462,0
462,0
474,0
474,0
j
Bottom bracket drop
48,0
48,0
65,0
65,0
k
Stack height
587,0
596,0
634,0
641,0
l
Reach
374,0
371,0
380,0
398,0
m
Standover height
-
-
-
-
x
Bottom bracket height
307,0
307,0
309,0
309,0
y
Front center
643,0
627,0
652,0
667,0
