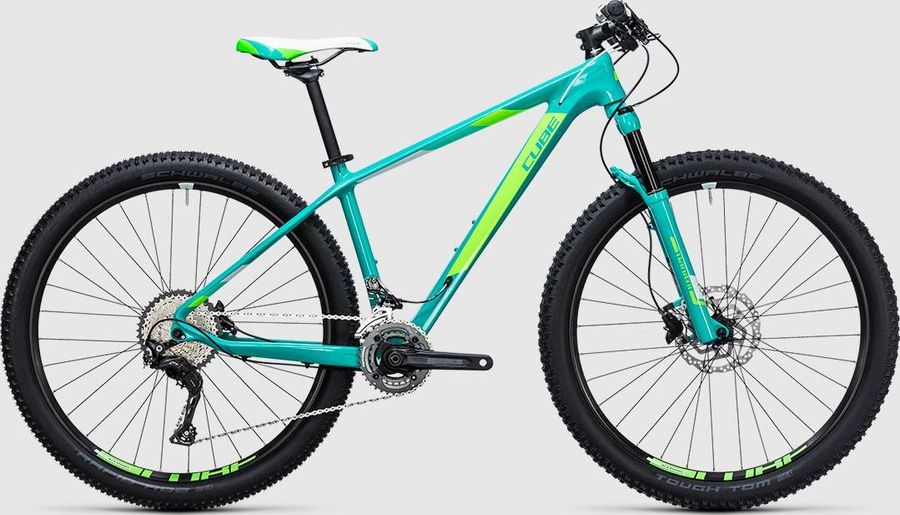

CUBE ACCESS WLS GTC Pro 2017

Women's Bike
MTB Cross Country
Groupset
Shimano XT
Frame material
Carbon
Wheel size
27,5" / 29"
Suspension type
Hardtail
Weight
11,7 kg
Front travel
100mm
CUBE ACCESS WLS GTC Pro 2017

About the CUBE ACCESS WLS GTC Pro 2017

The CUBE ACCESS WLS GTC Pro 2017 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a Shimano XT drivetrain of 22 gears (2x11). Its features include hydraulic disc brakes, tapered head tube, and remote lockout. The bike weighs approximately 11,7 kg.

Features

The CUBE ACCESS WLS GTC Pro 2017 has 4 features listed below.
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
trava-remota-guidao
Remote lockout More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
CUBE Natural Fit Race
Components
Steam
CUBE Performance Stem Pro, 31.8mm
Saddle
CUBE WLS Active 1.1
Headset
FSA Orbit I-t-R, Integrated, Top 1 1/8", Bottom 1 1/8"
Seatpost
CUBE Performance Post, 27.2mm
Handlebar
CUBE Flat Race Bar, 720mm
Brakes
Shimano Altus BR-M315
Drivetrain
Crankset
Race Face Æffect SL, 36x26T, 165mm
Shifter
Shimano SLX SL-M7000
Front derailleur
Shimano XT FD-M8020-D, Direct Mount, Side Swing
Cassette
Shimano SLX CS-M7000-11 HG
Aluminum gear pieces
1 (11-40T)
1 (11-42T)
2 (11-46T)
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M7000-11
Steel gear finish
Shot-Ni
Steel gear pieces
10 (11-40T)
10 (11-42T)
9 (11-46T)
Type
HG
Weights
11-40T: 450g
11-42T: 476g
11-46T: 482g
Chain
KMC X11
Rear derailleur
Shimano RD-M8000-SGS 275 g SGS 11s
Average weight (g)
275
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
40T(3x11-speed),
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
47T
Frameset
Frame
GTC Twin Mold Monocoque Technology, ARG2, Tapered Head Tube, PressFit BB, X12, Integrated Cable Routing
Front suspension
Manitou M30
Wheels
Rims
CUBE EX21, 32H, Disc, Tubeless Ready
Tires
Schwalbe Tough Tom Active, 2.25
Rear hub
Shimano Deore FH-M618, Centerlock, 142x12mm
Front hub
Shimano Deore HB-M615, Centerlock

Geometry

Size 13" 16" 17" 19"
a
Seat tube length
355,0
405,0
420,0
470,0
b
Seat tube angle
73,5º
73,5º
73,0º
73,0º
c
Top tube length
554,0
576,0
593,5
615,0
d
Head tube length
95,0
95,0
105,0
115,0
e
Head tube angle
69,0º
70,0º
70,0º
70,0º
f
Rake
44,0
44,0
50,0
51,0
g
Trail
89,0
83,0
83,0
82,0
h
Wheelbase
1053,0
1065,0
1091,0
1113,0
i
Chainstay length
430,0
430,0
441,0
441,0
j
Bottom bracket drop
51,5
51,5
65,0
65,0
k
Stack height
587,0
591,0
624,0
633,0
l
Reach
382,0
403,0
406,0
424,0
m
Standover height
-
-
-
-
x
Bottom bracket height
304,0
304,0
309,0
309,0
y
Front center
628,0
640,0
658,0
680,0
