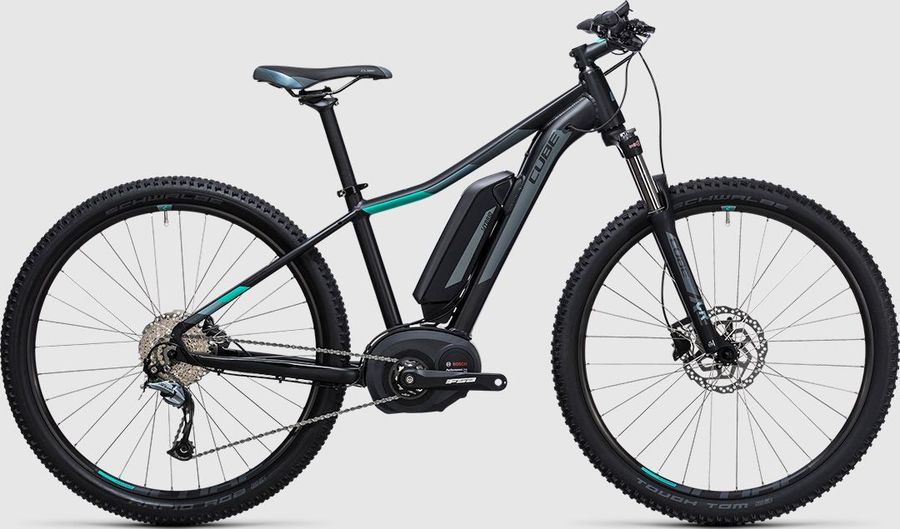

CUBE ACCESS WLS HYBRID ONE 500 2017
The CUBE ACCESS WLS HYBRID ONE 500 2017 is an electric-bike. E-bikes are bicycles with a battery-powered assist that comes via pedaling, so when you push the pedals a motor engages and gives you a boost.
E-Bike
Groupset
Shimano Acera
Frame material
Alloy
Wheel size
27,5" / 29"
Suspension type
Hardtail
Weight
20,8 kg
Front travel
100mm
About the CUBE ACCESS WLS HYBRID ONE 500 2017
The CUBE ACCESS WLS HYBRID ONE 500 2017 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Acera drivetrain of 9 gears (1x9). Its features include hydraulic disc brakes. The bike weighs approximately 20,8 kg.
Features
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Grip
|
CUBE Natural Fit Comfort
|
|---|---|
|
Remote
|
Bosch Intuvia
|
|
Steam
|
CUBE Performance Stem Pro, 31.8mm
|
|---|---|
|
Saddle
|
CUBE WLS Active 1.1
|
|
Battery
|
Bosch PowerPack 500
|
|
Headset
|
FSA Orbit 1.5E ZS, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
|
|
Seatpost
|
CUBE Perfomance Post, 30.9mm
|
|
Handlebar
|
CUBE Rise Trail Bar, 680mm
|
|
Brakes
|
Shimano Altus BR-M315
|
|
Crankset
|
FSA CK-745, 15T
|
|---|---|
|
Motor
|
Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt)
|
|
Shifter
|
Shimano SL-M370, Rapidfire-Plus
|
|
Rear derailleur
|
Shimano Acera RD-M3000
|
|
Cassette
|
Shimano CS-HG300
|
|
Chain
|
KMC X9
|
|
Frame
|
Aluminium Superlite, ARG, Double Butted, Disc Only
|
|---|---|
|
Front suspension
|
SR Suntour XCM 32
|
|
Rims
|
CUBE ZX20, 32H, Disc
|
|---|---|
|
Tires
|
Schwalbe Tough Tom, Active, 2.25
|
|
Rear hub
|
Shimano FH-TX505, QR
|
|
Front hub
|
Shimano HB-TX505, QR
|
Geometry
| Size | 13" | 16" | 17" | 19" |
|---|---|---|---|---|
|
a
Seat tube length
|
355,0
|
405,0
|
420,0
|
470,0
|
|
b
Seat tube angle
|
73,5º
|
73,5º
|
73,0º
|
73,0º
|
|
c
Top tube length
|
528,0
|
551,0
|
571,0
|
591,0
|
|
d
Head tube length
|
110,0
|
110,0
|
115,0
|
125,0
|
|
e
Head tube angle
|
69,0º
|
69,0º
|
69,5º
|
70,0º
|
|
f
Rake
|
45,0
|
45,0
|
50,0
|
51,0
|
|
g
Trail
|
88,0
|
88,0
|
87,0
|
82,0
|
|
h
Wheelbase
|
1032,0
|
1055,0
|
1091,0
|
1106,0
|
|
i
Chainstay length
|
433,0
|
433,0
|
456,0
|
456,0
|
|
j
Bottom bracket drop
|
51,5
|
51,5
|
60,0
|
60,0
|
|
k
Stack height
|
603,0
|
603,0
|
628,0
|
640,0
|
|
l
Reach
|
351,0
|
374,0
|
381,0
|
397,0
|
|
m
Standover height
|
-
|
-
|
-
|
-
|
|
x
Bottom bracket height
|
304,0
|
304,0
|
314,0
|
314,0
|
|
y
Front center
|
604,0
|
627,0
|
642,0
|
657,0
|
