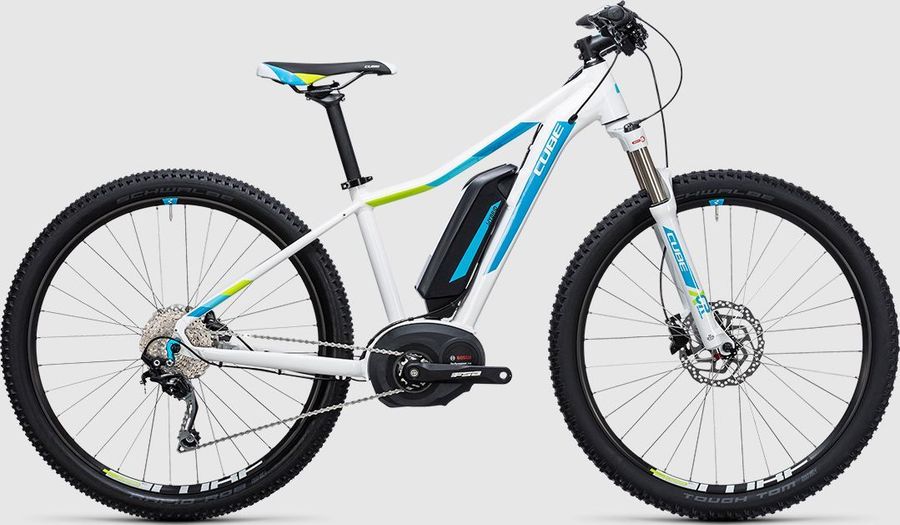

CUBE ACCESS WLS HYBRID Pro 400 2017
The CUBE ACCESS WLS HYBRID Pro 400 2017 is an electric-bike. E-bikes are bicycles with a battery-powered assist that comes via pedaling, so when you push the pedals a motor engages and gives you a boost.
E-Bike
The CUBE ACCESS WLS HYBRID Pro 400 2017 is a women’s bike. In general, women’s bikes are designed to fit better on women's body proportions.
Women's Bike
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
27,5" / 29"
Suspension type
Hardtail
Weight
20,6 kg
Front travel
100mm
About the CUBE ACCESS WLS HYBRID Pro 400 2017
The CUBE ACCESS WLS HYBRID Pro 400 2017 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 10 gears (1x10). Its features include hydraulic disc brakes, remote lockout, and tubeless ready. The bike weighs approximately 20,6 kg.
Features
Hydraulic disc brakes
More info
Hydraulic disc brakes
Remote lockout
More info
Remote lockout
Tubeless ready
More info
Tubeless ready
Specifications
|
Grip
|
CUBE Natural Fit Comfort
|
|---|---|
|
Remote
|
Bosch Purion
|
|
Steam
|
CUBE Performance Stem Pro, 31.8mm
|
|---|---|
|
Saddle
|
CUBE WLS Active 1.1
|
|
Battery
|
Bosch PowerPack 400
|
|
Headset
|
FSA Orbit 1.5E ZS, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
|
|
Seatpost
|
CUBE Performance Post, 30.9mm
|
|
Handlebar
|
CUBE Rise Trail Bar, 680mm
|
|
Brakes
|
Shimano Altus BR-M315
|
|
Crankset
|
FSA CK-745, 15T
|
|---|---|
|
Motor
|
Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt)
|
|
Shifter
|
Shimano Deore SL-M610, Rapidfire-Plus
|
|
Chain
|
KMC X10
|
|
Cassette
|
Shimano Deore CS-HG50-10
HG
|
|
|
|
|
Rear derailleur
|
Shimano Deore RD-M610-SGS
SGS
10s
|
|
|
|
|
Frame
|
Aluminium Superlite, ARG, Double Butted, Disc Only
|
|---|---|
|
Front suspension
|
SR Suntour XCR 32
|
|
Rims
|
CUBE EX21, 32H, Disc, Tubeless Ready
|
|---|---|
|
Tires
|
Schwalbe Tough Tom, Active, 2.25
|
|
Rear hub
|
Shimano FH-TX505, QR
|
|
Front hub
|
Shimano HB-TX505, QR
|
Geometry
| Size | 14" | 16" | 17" | 19" |
|---|---|---|---|---|
|
a
Seat tube length
|
365,0
|
395,0
|
420,0
|
470,0
|
|
b
Seat tube angle
|
73,5º
|
73,0º
|
73,0º
|
73,0º
|
|
c
Top tube length
|
526,0
|
550,0
|
574,0
|
594,0
|
|
d
Head tube length
|
115,0
|
115,0
|
115,0
|
120,0
|
|
e
Head tube angle
|
69,0º
|
69,0º
|
70,0º
|
70,0º
|
|
f
Rake
|
45,0
|
45,0
|
51,0
|
51,0
|
|
g
Trail
|
88,0
|
88,0
|
82,0
|
82,0
|
|
h
Wheelbase
|
1068,0
|
1092,0
|
1125,0
|
1145,0
|
|
i
Chainstay length
|
469,0
|
469,0
|
487,0
|
487,0
|
|
j
Bottom bracket drop
|
51,5
|
51,5
|
65,0
|
65,0
|
|
k
Stack height
|
600,0
|
600,0
|
628,0
|
633,0
|
|
l
Reach
|
342,0
|
366,0
|
382,0
|
400,0
|
|
m
Standover height
|
-
|
-
|
-
|
-
|
|
x
Bottom bracket height
|
304,0
|
304,0
|
309,0
|
309,0
|
|
y
Front center
|
604,0
|
628,0
|
646,0
|
666,0
|
