CUBE ACCESS WLS HYBRID SL 500 2017

E-Bike
MTB Cross Country
Groupset
Shimano XT
Frame material
Alloy
Wheel size
27,5" / 29"
Suspension type
Hardtail
Weight
20,8 kg
Front travel
100mm

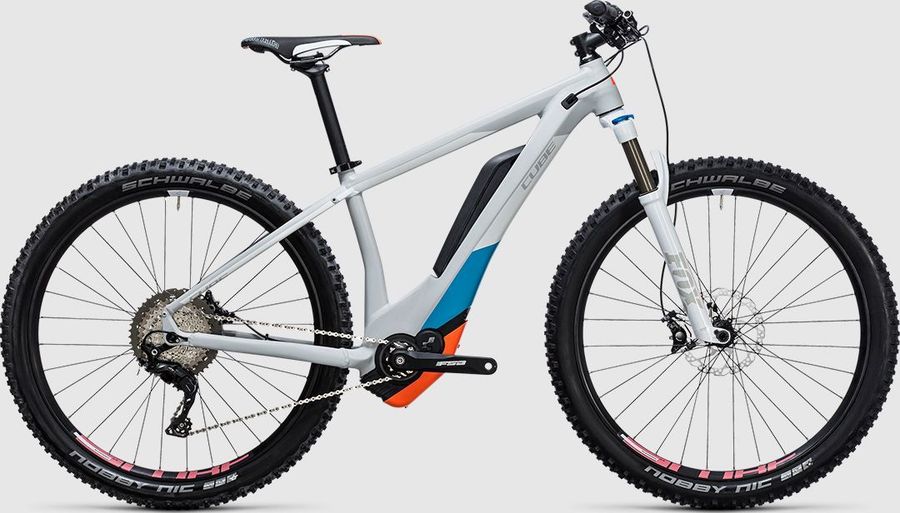

CUBE ACCESS WLS HYBRID SL 500 2017

About the CUBE ACCESS WLS HYBRID SL 500 2017

The CUBE ACCESS WLS HYBRID SL 500 2017 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 11 gears (1x11). Its features include internal routing, hydraulic disc brakes, and tapered head tube. The bike weighs approximately 20,8 kg.

Features

The CUBE ACCESS WLS HYBRID SL 500 2017 has 4 features listed below.
cabeamento-interno
Internal routing More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
CUBE Natural Fit Tour
Remote
Bosch Purion
Components
Steam
CUBE Performance Stem Pro, 31.8mm
Saddle
Selle Italia WLS Performance
Battery
Bosch PowerPack 500
Headset
FSA 1.5E ZS, Tapered, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
Seatpost
CUBE Performance Post, 30.9mm
Handlebar
CUBE Rise Trail Bar Pro, 720mm
Brakes
Shimano Deore XT BR-M8000 403 (BL-M8000) g Hydraulic disc brake 2 piston
Average weight (g)
403 (BL-M8000)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SB
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
Model
BR-M8000
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
G04S Metal
Pad option
J04C Metal
Pad standard
G02A Resin
G03A Resin
Pad standard
J02A Resin
J03A Resin
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended brake lever
BL-M8000
BL-T8000
Recommended disc brake rotor
RT-MT800
SM-RT86
Drivetrain
Crankset
FSA CK-745, 16T
Motor
Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt)
Shifter
Shimano XT SL-M8000-I, Direct Attach
Rear derailleur
Shimano Deore XT RD-M8000-GS 271 g GS 11s
Average weight (g)
271
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-GS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
GS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
39T
Cassette
Shimano Deore XT CS-M8000 HG
Aluminum gear pieces
2
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
2
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M8000
Steel gear finish
Shot-Ni
Steel gear pieces
9
Type
HG
Weights
11-40T: 411g
11-42T: 434g
11-46T: 437g
Chain
KMC X11
Frameset
Frame
Aluminium Superlite, Gravity Casting, ARG, Double Butted, Disc Only, Tapered Headtube, Boost, X12, Internal Cable Routing
Front suspension
Fox 34 Rhythm
Wheels
Rims
CUBE EX30, 32H, Disc, Tubeless Ready
Tires
Schwalbe Nobby Nic Kevlar 2.6, TrailStar, Tubeless Easy
Rear hub
Shimano XT FH-M8010-B, X12, Boost
Front hub
Shimano XT FH-M8010-B, 15QR, Boost

Geometry

Size 14" 16" 17" 19"
a
Seat tube length
365,0
405,0
405,0
450,0
b
Seat tube angle
73,5º
73,5º
73,0º
73,0º
c
Top tube length
549,0
555,0
579,0
599,0
d
Head tube length
105,0
105,0
105,0
110,0
e
Head tube angle
68,0º
69,0º
69,5º
70,0º
f
Rake
44,0
36,0
39,0
39,0
g
Trail
96,0
98,0
98,0
95,0
h
Wheelbase
1101,0
1088,0
1111,0
1125,0
i
Chainstay length
462,0
462,0
474,0
474,0
j
Bottom bracket drop
48,0
48,0
62,0
65,0
k
Stack height
586,0
591,0
622,0
632,0
l
Reach
375,0
380,0
389,0
406,0
m
Standover height
-
-
-
-
x
Bottom bracket height
307,0
307,0
312,0
309,0
y
Front center
643,0
630,0
644,0
659,0
