BikeWise

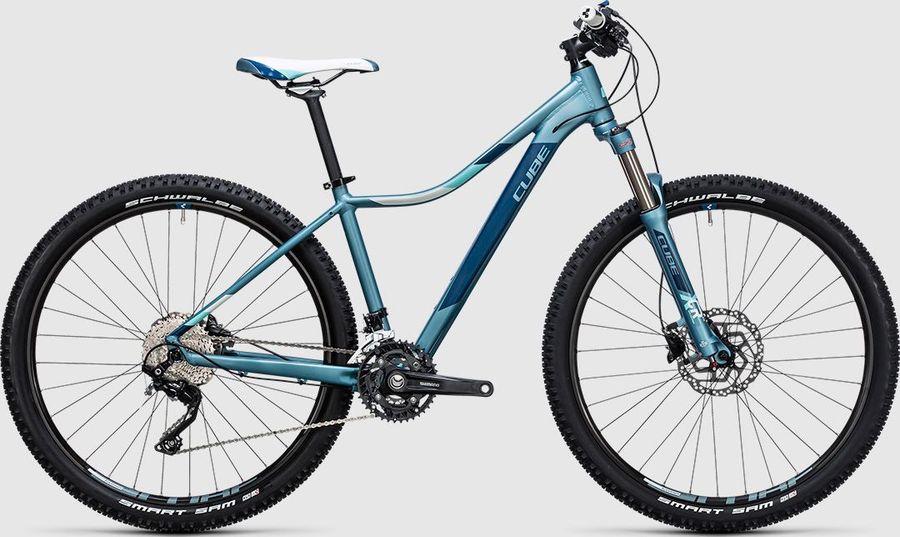

CUBE ACCESS WLS Race 2017

Women's Bike
MTB Cross Country
Groupset
Shimano XT
Frame material
Alloy
Wheel size
27,5" / 29"
Suspension type
Hardtail
Weight
13,3 kg
Front travel
100mm
CUBE ACCESS WLS Race 2017

About the CUBE ACCESS WLS Race 2017

The CUBE ACCESS WLS Race 2017 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 30 gears (3x10). Its features include internal routing, hydraulic disc brakes, and remote lockout. The bike weighs approximately 13,3 kg.

Features

The CUBE ACCESS WLS Race 2017 has 3 features listed below.
cabeamento-interno
Internal routing More info
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info

Specifications

Acessories
Grip
CUBE Performance Grip
Pedals
CUBE Aluminium MTB
Components
Steam
CUBE Performance Stem Pro, 31.8mm
Saddle
CUBE WLS Active 1.1
Headset
FSA No.10, Semi-Integrated
Seatpost
CUBE Performance Post, 27.2mm
Handlebar
CUBE Rise Trail Bar, 680mm
Brakes
Shimano Altus BR-M315
Drivetrain
Crankset
Shimano FC-MT500-3, 10-Speed, 40x30x22T, 170mm
Shifter
Shimano Deore SL-M610, Rapidfire-Plus
Front derailleur
Shimano Deore FD-M611 Downswing, 31,8mm
Chain
Shimano CN-HG54 273 g
Average weight (g)
273
Chromizing treatment roller link pin
Model
CN-HG54
Pin link plate
Gray
Roller link plate
Brown
Type
HG-X 10-speed
Cassette
Shimano Deore CS-HG50-10 HG
Combination names
11-36T
Compatible chain
HG-X 10-speed
Lock ring finish
Cr plated
Lock ring material
Steel
Model
CS-HG50-10
Steel gear finish
Ni plated
Steel gear pieces
10
Type
HG
Rear derailleur
Shimano Deore XT RD-M781 238 g SGS 10s
Average weight (g)
238
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Cable fixing bolt material
Stainless steel
Compatible chain
HG-X 10-speed
Lower pulley max
36T
Lower pulley min
32T
Model
RD-M781-SGS
P axle material
Steel
Pulley bolts material
Stainless steel
G pulley bearing
Sealed bearing
Sunken type pulley bolt
T pulley bearing
Sealed bearing
Pulley teeth
11T
Pulley cage
SGS
Speeds
10
Upper pulley max
11T
Upper pulley min
11T
Total capacity
43T
Frameset
Frame
Aluminium Lite, AMF, Internal Cable Routing, Easy Mount Kickstand Ready
Front suspension
SR Suntour XCR 32 AIR
Wheels
Rims
CUBE ZX 20, Disc
Tires
Schwalbe Smart Sam, Active, 2.25"
Rear hub
Shimano FH-M3050
Front hub
Shimano HB-M3050

Geometry

Size 13" 16" 17" 19"
a
Seat tube length
355,0
405,0
420,0
470,0
b
Seat tube angle
73,5º
73,5º
73,0º
73,0º
c
Top tube length
528,0
551,0
571,0
591,0
d
Head tube length
110,0
110,0
115,0
125,0
e
Head tube angle
69,0º
69,0º
69,5º
70,0º
f
Rake
45,0
45,0
50,0
51,0
g
Trail
88,0
88,0
87,0
82,0
h
Wheelbase
1032,0
1055,0
1091,0
1106,0
i
Chainstay length
433,0
433,0
456,0
456,0
j
Bottom bracket drop
51,5
51,5
60,0
60,0
k
Stack height
603,0
603,0
628,0
640,0
l
Reach
351,0
374,0
381,0
397,0
m
Standover height
-
-
-
-
x
Bottom bracket height
304,0
304,0
314,0
314,0
y
Front center
604,0
627,0
642,0
657,0
