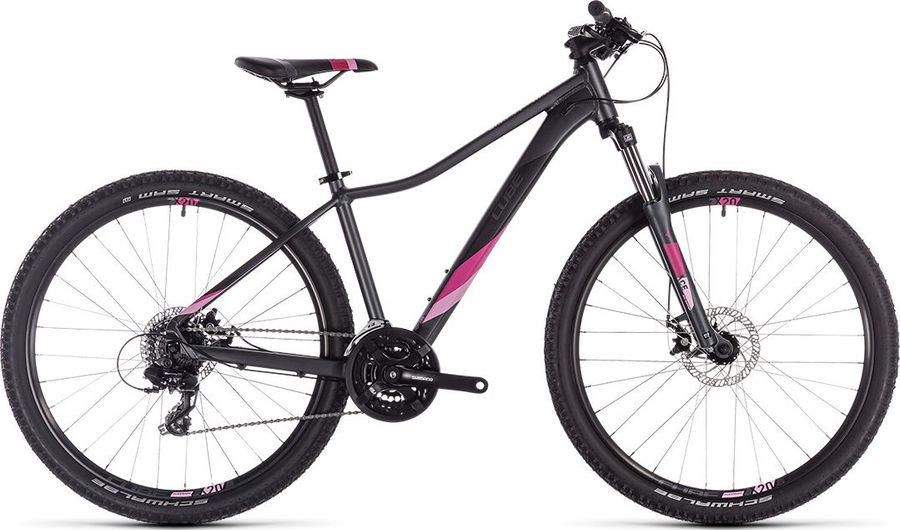

CUBE ACCESS WS 2019
The CUBE ACCESS WS 2019 is a women’s bike. In general, women’s bikes are designed to fit better on women's body proportions.
Women's Bike
Groupset
Shimano Tourney
Frame material
Alloy
Wheel size
27,5" / 29"
Suspension type
Hardtail
Weight
14,1 kg
Front travel
100mm
About the CUBE ACCESS WS 2019
The CUBE ACCESS WS 2019 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Tourney drivetrain of 24 gears (3x8). Its features include internal routing. The bike weighs approximately 14,1 kg.
Features
Internal routing
More info
Internal routing
Specifications
|
Grip
|
CUBE Performance Grip
|
|---|---|
|
Pedals
|
CUBE HPP MTB
|
|
Steam
|
CUBE Performance Stem, 31.8mm
|
|---|---|
|
Saddle
|
CUBE WS Active 1.1
|
|
Headset
|
CUBE No.10 Semi-Integrated
|
|
Seatpost
|
CUBE Performance Post, 27.2mm
|
|
Handlebar
|
CUBE Rise Trail Bar, 680mm
|
|
Brakes
|
Tektro HD-M280
|
|
Crankset
|
Shimano FC-T501, 42x34x24T, 170mm
|
|---|---|
|
Shifter
|
Shimano ST-TX800, EZ Fire Plus
|
|
Front derailleur
|
Shimano FD-TY700-TS6, Downswing, 31.8mm
|
|
Rear derailleur
|
Shimano Tourney RD-TX800
SGS
8/7s
|
|
|
|
|
Chain
|
KMC Z7
|
|
Cassette
|
Shimano Altus CS-HG200-8
HG
|
|
|
|
|
Frame
|
Aluminium Lite, AMF, Internal Cable Routing, Easy Mount Kickstand Ready
|
|---|---|
|
Front suspension
|
SR Suntour XCE
|
|
Rims
|
CUBE SD20, 32H, Disc
|
|---|---|
|
Tires
|
Schwalbe Smart Sam, Active, 2.1
|
|
Rear hub
|
CUBE Aluminium
|
|
Front hub
|
CUBE Aluminium
|
Geometry
| Size | 13" | 16" | 17" | 19" |
|---|---|---|---|---|
|
a
Seat tube length
|
355,0
|
405,0
|
420,0
|
470,0
|
|
b
Seat tube angle
|
74,0º
|
73,5º
|
73,0º
|
73,0º
|
|
c
Top tube length
|
546,0
|
562,0
|
576,0
|
596,0
|
|
d
Head tube length
|
111,0
|
114,0
|
114,0
|
125,0
|
|
e
Head tube angle
|
69,0º
|
69,0º
|
69,5º
|
70,0º
|
|
f
Rake
|
43,0
|
42,0
|
56,0
|
62,0
|
|
g
Trail
|
90,0
|
91,0
|
80,0
|
70,0
|
|
h
Wheelbase
|
1053,0
|
1064,0
|
1106,0
|
1127,0
|
|
i
Chainstay length
|
433,0
|
433,0
|
456,0
|
456,0
|
|
j
Bottom bracket drop
|
51,5
|
51,5
|
65,0
|
65,0
|
|
k
Stack height
|
603,0
|
609,0
|
634,0
|
644,0
|
|
l
Reach
|
374,0
|
383,0
|
390,0
|
407,0
|
|
m
Standover height
|
-
|
-
|
-
|
-
|
|
x
Bottom bracket height
|
304,0
|
304,0
|
309,0
|
309,0
|
|
y
Front center
|
625,0
|
636,0
|
658,0
|
679,0
|
