CUBE ACCESS WS 27.5 2018

Women's Bike
MTB Cross Country
Groupset
Shimano Tourney
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Weight
14,1 kg
Front travel
100mm

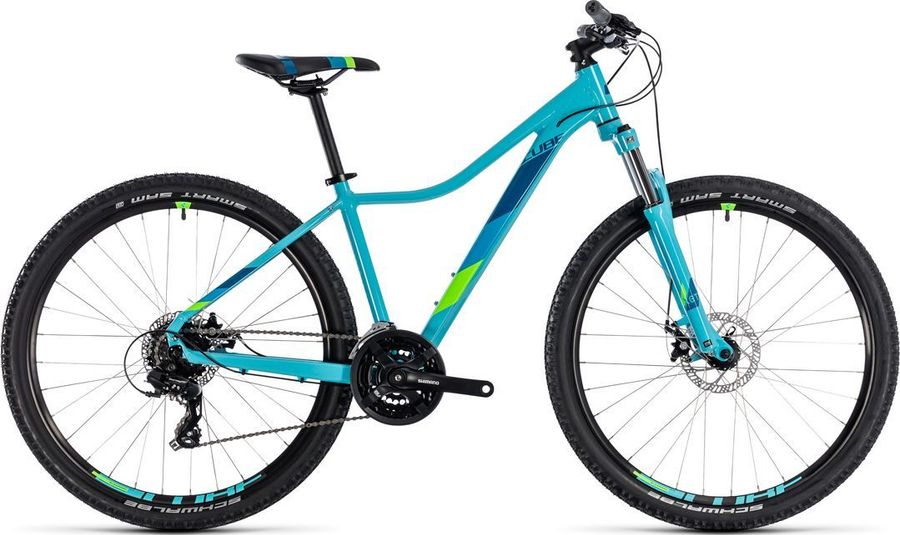

CUBE ACCESS WS 27.5 2018

About the CUBE ACCESS WS 27.5 2018

The CUBE ACCESS WS 27.5 2018 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Tourney drivetrain of 24 gears (3x8). Its features include internal routing. The bike weighs approximately 14,1 kg.

Features

The CUBE ACCESS WS 27.5 2018 has 1 features listed below.
cabeamento-interno
Internal routing More info

Specifications

Acessories
Grip
CUBE Performance Grips
Pedals
CUBE HPP MTB
Components
Steam
CUBE Performance Stem, 31.8mm
Saddle
CUBE WS Active 1.1
Headset
CUBE No.10 Semi-Integrated
Seatpost
CUBE Performance Post, 27.2mm
Handlebar
CUBE Rise Trail Bar, 680mm
Brakes
Tektro HD-M280
Drivetrain
Crankset
Shimano FC-T501, 42x32x22T, 170mm
Shifter
Shimano ST-EF51, EZ Fire Plus
Front derailleur
Shimano FD-T700-TS6, Downswing, 31.8mm
Rear derailleur
Shimano Tourney RD-TX800 SGS 8/7s
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Resin
Compatible chain
HG 8/7-speed
Lower pulley max
34T
Lower pulley min
28T
Model
RD-TX800
P axle finish
Zinc plated
P axle material
Steel
pulley.screws_material
Steel
Pulley teeth
13/13T
Pulley cage
SGS
Speeds
8/7
Upper pulley max
14T
Upper pulley min
11T
Total capacity
43T
Chain
KMC Z7
Cassette
Shimano Altus CS-HG200-8 HG
Combination names
12-32T
Compatible chain
HG 8-speed
Lock ring finish
Painted
Lock ring material
Steel
Model
CS-HG200-8
Steel gear finish
Phosphate coated
Steel gear pieces
8
Type
HG
Frameset
Frame
Aluminium Lite, AMF, Internal Cable Routing, Easy Mount Kickstand Ready
Front suspension
SR Suntour XCT
Wheels
Rims
CUBE SD20, 32H, Disc
Tires
Schwalbe Smart Sam, Active, 2.1
Rear hub
CUBE Aluminium
Front hub
CUBE Aluminium

Geometry

Size 16"
a
Seat tube length
405,0
b
Seat tube angle
73,5º
c
Top tube length
550,0
d
Head tube length
110,0
e
Head tube angle
69,0º
f
Rake
45,0
g
Trail
88,0
h
Wheelbase
1054,0
i
Chainstay length
432,0
j
Bottom bracket drop
51,5
k
Stack height
602,0
l
Reach
373,0
m
Standover height
-
x
Bottom bracket height
304,0
y
Front center
627,0
