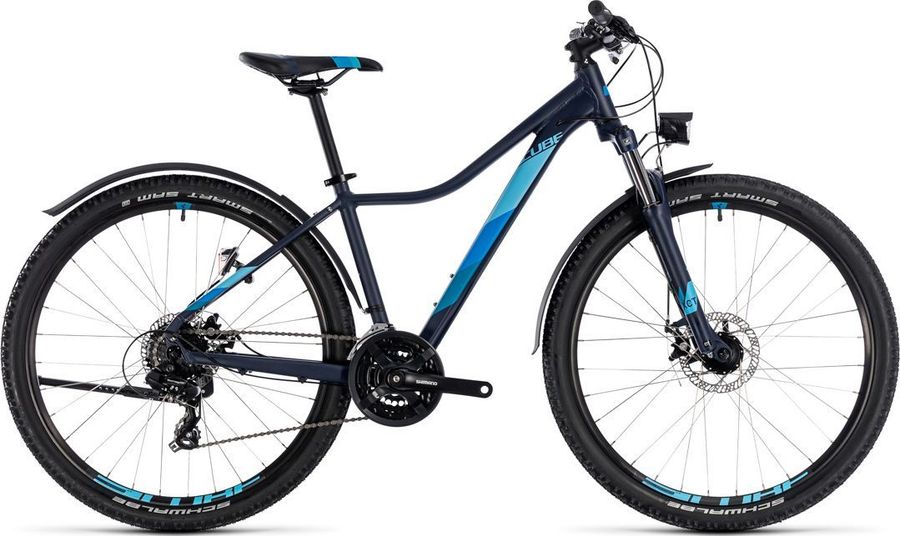

CUBE ACCESS WS Allroad 27.5 2018
The CUBE ACCESS WS Allroad 27.5 2018 is a women’s bike. In general, women’s bikes are designed to fit better on women's body proportions.
Women's Bike
Groupset
Shimano Tourney
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Weight
15,5 kg
Front travel
100mm
About the CUBE ACCESS WS Allroad 27.5 2018
The CUBE ACCESS WS Allroad 27.5 2018 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Tourney drivetrain of 24 gears (3x8). Its features include internal routing. The bike weighs approximately 15,5 kg.
Features
Internal routing
More info
Internal routing
Specifications
|
Grip
|
Cube Performance grips
|
|---|---|
|
Pedals
|
CUBE HPP MTB
|
|
Steam
|
CUBE Performance Stem, 31.8mm
|
|---|---|
|
Saddle
|
CUBE WS Active 1.1
|
|
Headset
|
CUBE No. 10 Semi-Integrated
|
|
Seatpost
|
CUBE Performance Post, 27.2mm
|
|
Handlebar
|
CUBE Rise Trail Bar, 680mm
|
|
Brakes
|
Tektro HD-M280
|
|
Crankset
|
Shimano FC-TX801, 42x32x22T
|
|---|---|
|
Shifter
|
Shimano ST-EF51, EZ Fire Plus
|
|
Front derailleur
|
Shimano FD-T700-TS6, Downswing, 31.8mm
|
|
Rear derailleur
|
Shimano Tourney RD-TX800
SGS
8/7s
|
|
|
|
|
Chain
|
KMC Z7
|
|
Cassette
|
Shimano Altus CS-HG200-8
HG
|
|
|
|
|
Frame
|
Aluminium Lite, AMF, Internal Cable Routing, Easy Mount Kickstand Ready
|
|---|---|
|
Front suspension
|
SR Suntour XCT
|
|
Rims
|
CUBE SD20, 32H, DISC
|
|---|---|
|
Tires
|
Schwalbe Smart Sam, Active, 2.1
|
|
Rear hub
|
CUBE Aluminium
|
|
Front hub
|
Shimano DH-3D32 Hub Dynamo
|
Geometry
| Size | 16" |
|---|---|
|
a
Seat tube length
|
405,0
|
|
b
Seat tube angle
|
73,5º
|
|
c
Top tube length
|
550,0
|
|
d
Head tube length
|
110,0
|
|
e
Head tube angle
|
69,0º
|
|
f
Rake
|
45,0
|
|
g
Trail
|
88,0
|
|
h
Wheelbase
|
1054,0
|
|
i
Chainstay length
|
432,0
|
|
j
Bottom bracket drop
|
51,5
|
|
k
Stack height
|
602,0
|
|
l
Reach
|
373,0
|
|
m
Standover height
|
-
|
|
x
Bottom bracket height
|
304,0
|
|
y
Front center
|
627,0
|
