CUBE ACCESS WS Pro Allroad 2019

Women's Bike
MTB Cross Country
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
27,5" / 29"
Suspension type
Hardtail
Weight
16,2 kg
Front travel
100mm

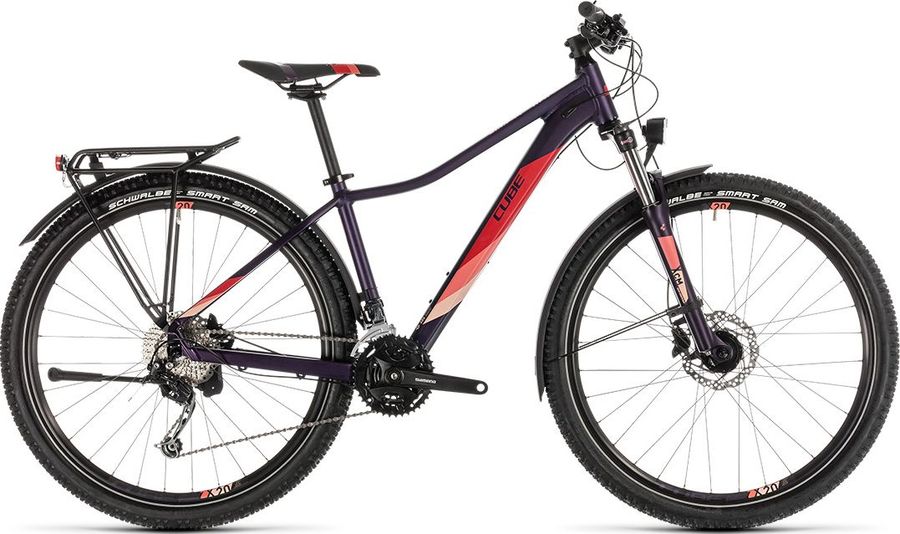

CUBE ACCESS WS Pro Allroad 2019

About the CUBE ACCESS WS Pro Allroad 2019

The CUBE ACCESS WS Pro Allroad 2019 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 27 gears (3x9). Its features include internal routing, hydraulic disc brakes, and remote lockout. The bike weighs approximately 16,2 kg.

Features

The CUBE ACCESS WS Pro Allroad 2019 has 3 features listed below.
cabeamento-interno
Internal routing More info
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info

Specifications

Acessories
Grip
CUBE Performance Grip
Pedals
CUBE PP MTB
Components
Steam
CUBE Performance Stem Pro, 31.8mm
Saddle
CUBE Active WS 1.1
Headset
CUBE No.10 Semi-Integrated
Seatpost
CUBE Performance Post, 27.2mm
Handlebar
CUBE Rise Trail Bar, 680mm
Brakes
Shimano BR-MT200 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT200
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT201
BL-MT200
Recommended disc brake rotor
SM-RT10*
SM-RT26*
Drivetrain
Crankset
Shimano FC-MT100, 9-Speed, 40x30x22T, 170mm
Shifter
Shimano SL-M2000, Rapidfire-Plus
Front derailleur
Shimano FD-M4000, Downswing, 31.8mm Clamp
Rear derailleur
Shimano Deore RD-M592 SGS 9s
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Cable fixing bolt finish
Plated
Cable fixing bolt material
Steel
Compatible chain
HG 9-speed
Lower pulley max
36T
Lower pulley min
32T
Model
RD-M592-SGS
P axle material
Steel
Pulley bolts material
Stainless steel
Sunken type pulley bolt
Pulley teeth
11T
Pulley cage
SGS
Speeds
9
Upper pulley max
12T
Upper pulley min
11T
Total capacity
45T
Chain
Shimano CN-HG53 299 g
Average weight (g)
299
Chromizing treatment roller link pin
Model
CN-HG53
Pin link plate
Gray
Roller link plate
Brown
Type
HG 9-speed
Cassette
Shimano Alivio CS-HG400-9 HG
Combination names
11-28T
11-32T
11-34T
12-36T
11-36T
Compatible chain
HG 9-speed
Lock ring finish
Ni-Ni plated
Lock ring material
Steel
Model
CS-HG400-9
Steel gear finish
Ni-Ni plated
Steel gear pieces
9
Type
HG
Frameset
Frame
Aluminium Lite, AMF, Internal Cable Routing, Easy Mount Kickstand Ready
Front suspension
SR Suntour XCM-RL
Wheels
Rims
CUBE ZX20, 32H, Disc
Tires
Schwalbe Smart Sam, Active, 2.25
Rear hub
Shimano FH-TX505, QR, Centerlock
Front hub
Shimano DH-3D37, Hub Dynamo, QR, Centerlock

Geometry

Size 13" 16" 17" 19"
a
Seat tube length
355,0
405,0
420,0
470,0
b
Seat tube angle
74,0º
73,5º
73,0º
73,0º
c
Top tube length
546,0
562,0
576,0
596,0
d
Head tube length
111,0
114,0
114,0
125,0
e
Head tube angle
69,0º
69,0º
69,5º
70,0º
f
Rake
43,0
42,0
56,0
62,0
g
Trail
90,0
91,0
80,0
70,0
h
Wheelbase
1053,0
1064,0
1106,0
1127,0
i
Chainstay length
433,0
433,0
456,0
456,0
j
Bottom bracket drop
51,5
51,5
65,0
65,0
k
Stack height
603,0
609,0
634,0
644,0
l
Reach
374,0
383,0
390,0
407,0
m
Standover height
-
-
-
-
x
Bottom bracket height
304,0
304,0
309,0
309,0
y
Front center
625,0
636,0
658,0
679,0
