CUBE ACCESS WS RACE 2020

Women's Bike
MTB Cross Country
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
27,5" / 29"
Suspension type
Hardtail
Weight
13,4 kg
Front travel
100mm

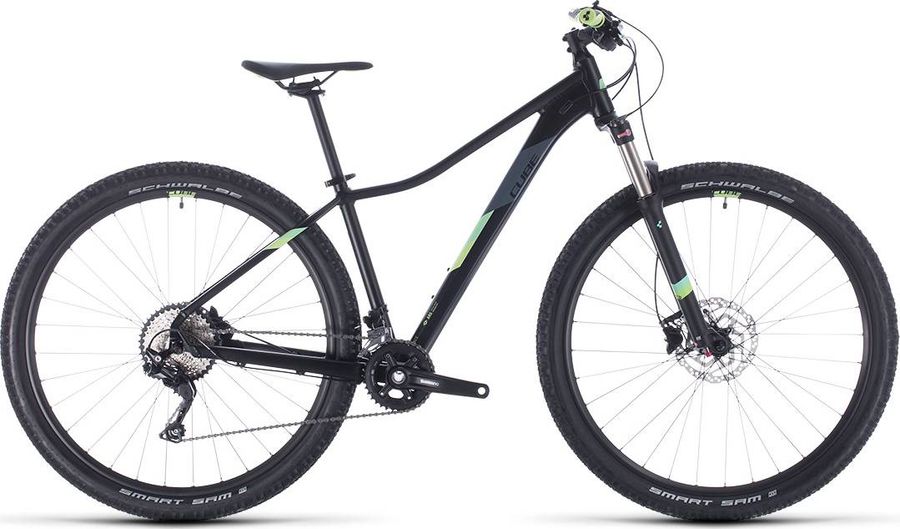

CUBE ACCESS WS RACE 2020

About the CUBE ACCESS WS RACE 2020

The CUBE ACCESS WS RACE 2020 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 20 gears (2x10). Its features include hydraulic disc brakes e remote lockout. The bike weighs approximately 13,4 kg.

Features

The CUBE ACCESS WS RACE 2020 has 2 features listed below.
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info

Specifications

Acessories
Grip
CUBE Performance Grip
Pedals
CUBE PP MTB
Components
Steam
CUBE Performance Stem Pro, 31.8mm
Saddle
Natural Fit Venec Lite WS
Headset
CUBE FPH863, Semi-Integrated
Seatpost
CUBE Performance Post, 27.2mm
Handlebar
CUBE Rise Trail Bar, 680mm
Brakes
Shimano BR-MT200 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT200
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT201
BL-MT200
Recommended disc brake rotor
SM-RT10*
SM-RT26*
Drivetrain
Crankset
Shimano FC-MT500, 36x26T
Shifter
Shimano Deore SL-M6000, Rapidfire-Plus
Front derailleur
Shimano Deore FD-M6025-H, Downswing, 31.8mm Clamp
Rear derailleur
Shimano Deore RD-M6000-GS GS 10s
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 10-speed
Lower pulley max
42T
Lower pulley min
42T
Model
RD-M6000-GS
P axle finish
Painted
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
Pulley cage
GS
Speeds
10
Upper pulley max
11T
Upper pulley min
11T
Total capacity
41T
Chain
Shimano CN-HG54 273 g
Average weight (g)
273
Chromizing treatment roller link pin
Model
CN-HG54
Pin link plate
Gray
Roller link plate
Brown
Type
HG-X 10-speed
Cassette
Shimano Deore CS-HG500-10
Frameset
Frame
HPA, High Performance Aluminium
Front suspension
SR Suntour XCR 32 AIR
Wheels
Rims
CUBE SD20, 32H, Disc
Tires
Schwalbe Smart Sam, Active, 2.25
Rear hub
Shimano FH-M3050, Centerlock
Front hub
Shimano HB-M3050, Centerlock

Geometry

Size 13" 16" 17" 19"
a
Seat tube length
355,0
405,0
420,0
470,0
b
Seat tube angle
74,0º
73,5º
73,0º
73,0º
c
Top tube length
546,0
562,0
576,0
596,0
d
Head tube length
111,0
114,0
113,5
124,5
e
Head tube angle
69,0º
69,0º
69,5º
70,0º
f
Rake
43,0
42,0
56,0
62,0
g
Trail
90,0
91,0
80,0
70,0
h
Wheelbase
1053,0
1064,0
1106,0
1127,0
i
Chainstay length
433,0
433,0
456,0
456,0
j
Bottom bracket drop
51,5
51,5
65,0
65,0
k
Stack height
603,05
608,85
633,6
643,87
l
Reach
373,94
383,43
390,1
407,06
m
Standover height
677,0
713,0
723,0
753,0
x
Bottom bracket height
304,0
304,0
309,0
309,0
y
Front center
625,0
636,0
658,0
679,0
