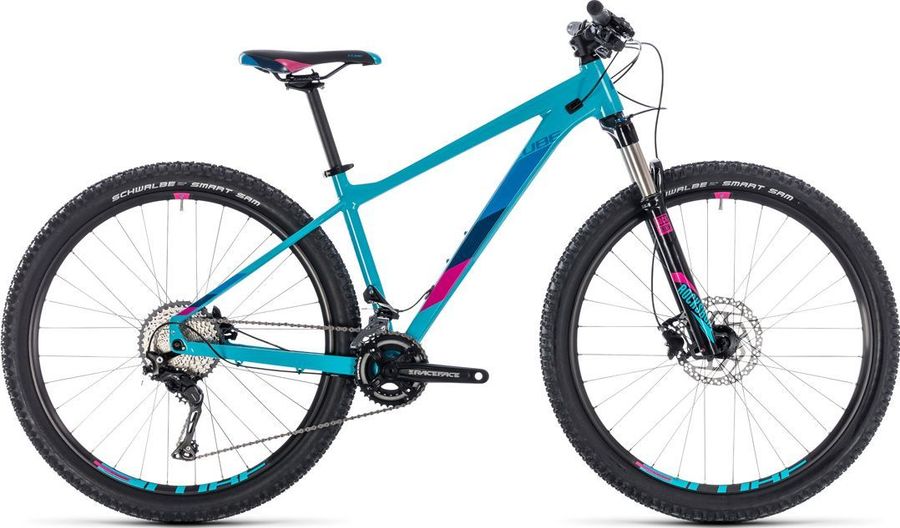

CUBE ACCESS WS SL 2018

Women's Bike

MTB Cross Country

Groupset

Shimano XT

Frame material

Alloy

Wheel size

27,5"

Suspension type

Hardtail

Weight

13,2 kg

Front travel

100mm

About the CUBE ACCESS WS SL 2018

The CUBE ACCESS WS SL 2018 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 22 gears (2x11). Its features include internal routing, hydraulic disc brakes, and tapered head tube. The bike weighs approximately 13,2 kg.

Features

The CUBE ACCESS WS SL 2018 has 3 features listed below.

Internal routing More info

Hydraulic disc brakes More info

Tapered head tube More info

Specifications

Acessories
Grip	CUBE Performance Grip
Pedals	CUBE PP MTB

Components
Steam	CUBE Performance Stem Pro, 31.8mm
Saddle	CUBE WLS Active 1.1
Seatpost	CUBE Performance Post, 27.2mm
Handlebar	CUBE Rise Trail Bar, 700mm
Brakes	Shimano Altus BR-M315

Drivetrain
Crankset	Race Face Ride 34x24T, 170mm
Shifter	Shimano SLX SL-M7000
Front derailleur	Shimano SLX FD-M7020-D, Direct Mount, Side Swing
Cassette	Shimano SLX CS-M7000-11 HG
Aluminum gear pieces 1 (11-40T) 1 (11-42T) 2 (11-46T) Aluminum spider arm finish Anodized Aluminum spider arm pieces 1 Combination names 11-40T 11-42T 11-46T Compatible chain HG 11-speed, LG Lock ring finish Plated Lock ring material Steel Model CS-M7000-11 Steel gear finish Shot-Ni Steel gear pieces 10 (11-40T) 10 (11-42T) 9 (11-46T) Type HG Weights 11-40T: 450g 11-42T: 476g 11-46T: 482g
Chain	KMC X11
Rear derailleur	Shimano RD-M8000-SGS 275 g SGS 11s
Average weight (g) 275 B axle hollow B axle material Stainless steel Bracket finish Painted Bracket material Aluminum Bracket body finish Painted Bracket body material Aluminum Compatible chain HG-X 11-speed Lower pulley max 40T(3x11-speed), 42T(2x11-speed), 46T(1x11-speed) Lower pulley min 40T Model RD-M8000-SGS P axle material Steel pulley.guide_pulley_bearing Sealed bearing pulley.screws_material Stainless steel pulley.sunken_type_pulley_screw Pulley teeth 11T pulley.tension_pulley_bearing Sealed bearing Pulley cage SGS Speeds 11 Upper pulley max 11T Upper pulley min 11T Total capacity 47T

Frameset
Frame	Aluminium Lite, Triple Butted, Advanced Hydroforming, Internal Cable Routing, Easy Mount Kickstand Ready, Tapered Headtube, Press Fit BB
Front suspension	RockShox Recon Silver TK Coil, Solo Air 2166 g
Color Diffusion Black, Gloss Black, Gloss White fork offset 40mm (26"), 42mm (27.5"), 46mm (29"), 51mm (29") Max tire width (mm) 62, n/a Maximum rotor size 200mm Minimum rotor size 160mm Model FS-RCNS-TK-C1 Name Recon Silver TK Spring Coil, Solo Air Travel (mm) 100mm, 80mm Upper tube type 32mm straight wall steel Weight based on 27.5", Tapered AL steerer, 9mm QR lower leg, Coil Weight 2166 Wheel size 26", 27.5", 29"

Wheels
Rims	CUBE ZX20, 32H, Disc
Tires	Schwalbe Smart Sam, Active, 2.25"
Rear hub	CUBE MS5R
Front hub	CUBE K68F

Follow your favorite drivers

Receive notifications when your favorite riders finish UCI races.

XT 2 × 11

Crank: 34-24T

Cassette: 11-42T

Speeds: 22s

Gearing

Average

0,58

Average

3,1

Compared to similar bikes, the CUBE ACCESS WS SL 2018 has an excellent uphill performance and a good downhill performance.

Report incorrect information

Geometry

Size	13"	16"	17"	19"
a Seat tube length	355,0	405,0	420,0	470,0
b Seat tube angle	73,5º	73,5º	73,5º	73,5º
c Top tube length	551,0	567,0	581,0	601,0
d Head tube length	106,5	109,5	113,5	124,5
e Head tube angle	69,0º	69,0º	69,0º	69,0º
f Rake	44,0	44,0	51,0	51,0
g Trail	89,0	89,0	82,0	82,0
h Wheelbase	1040,0	1056,2	1085,4	1106,0
i Chainstay length	416,0	416,0	429,0	429,0
j Bottom bracket drop	51,5	51,5	65,0	65,0
k Stack height	597,59	600,39	627,34	637,61
l Reach	378,87	393,96	399,21	415,87
m Standover height	-	-	-	-
x Bottom bracket height	304,0	304,0	290,0	290,0
y Front center	629,0	646,0	665,0	685,0
