CUBE ACCESS WS SL Eagle 2019

Women's Bike
MTB Cross Country
Groupset
SRAM NX Eagle
Frame material
Alloy
Wheel size
27,5" / 29"
Suspension type
Hardtail
Weight
12,9 kg
Front travel
100mm
CUBE ACCESS WS SL Eagle 2019

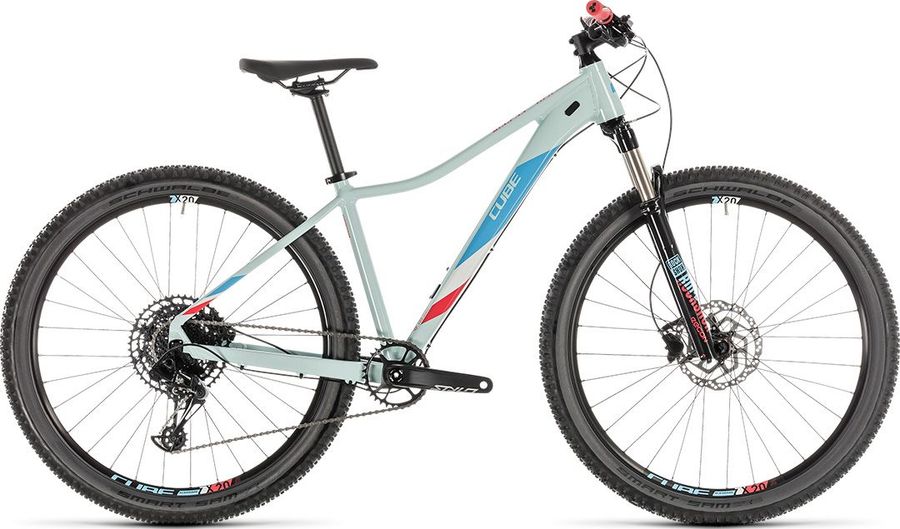

About the CUBE ACCESS WS SL Eagle 2019

The CUBE ACCESS WS SL Eagle 2019 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a SRAM NX Eagle drivetrain of 12 gears (1x12). Its features include internal routing, hydraulic disc brakes, and tapered head tube. The bike weighs approximately 12,9 kg.

Features

The CUBE ACCESS WS SL Eagle 2019 has 3 features listed below.
cabeamento-interno
Internal routing More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info

Specifications

Acessories
Grip
CUBE Performance Grip
Pedals
CUBE PP MTB
Components
Steam
CUBE Performance Stem Pro, 31.8mm
Saddle
Natural Fit Active WS
Headset
CUBE No.10 Semi-Integrated
Seatpost
CUBE Performance Post, 27.2mm
Handlebar
CUBE Rise Trail Bar, 680mm
Brakes
Shimano BR-MT200 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT200
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT201
BL-MT200
Recommended disc brake rotor
SM-RT10*
SM-RT26*
Drivetrain
Crankset
SRAM Stylo Eagle™ DUB, 32T, 170mm
Shifter
SRAM NX Eagle™
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Rear derailleur
SRAM NX Eagle 12s 339 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-NX-1-B1
Name
NX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Weight
339
Cassette
SRAM PG-1230 Eagle 12s 615 g
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1230-A1
Name
PG-1230 Eagle Cassette
Speed
12s
Technology cassete
PG
Weight
615
Frameset
Frame
Aluminium Lite, Triple Butted, Advanced Hydroforming, Internal Cable Routing, Easy Mount Kickstand Ready, Tapered Headtube, Press Fit BB
Front suspension
RockShox Recon Silver TK Coil, Solo Air 2166 g
Color
Diffusion Black, Gloss Black, Gloss White
fork offset
40mm (26"), 42mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
62, n/a
Maximum rotor size
200mm
Minimum rotor size
160mm
Model
FS-RCNS-TK-C1
Name
Recon Silver TK
Spring
Coil, Solo Air
Travel (mm)
100mm, 80mm
Upper tube type
32mm straight wall steel
Weight based on
27.5", Tapered AL steerer, 9mm QR lower leg, Coil
Weight
2166
Wheel size
26", 27.5", 29"
Wheels
Rims
CUBE ZX20, 32H, Disc
Tires
Schwalbe Smart Sam, Active, 2.25
Rear hub
Shimano Deore FH-M6000, Centerlock
Front hub
Shimano Deore HB-M6000, Centerlock

Geometry

Size 13" 16" 17" 19"
a
Seat tube length
355,0
405,0
420,0
470,0
b
Seat tube angle
74,0º
73,5º
73,0º
73,0º
c
Top tube length
546,0
562,0
576,0
596,0
d
Head tube length
111,0
114,0
114,0
125,0
e
Head tube angle
69,0º
69,0º
69,5º
70,0º
f
Rake
43,0
42,0
56,0
62,0
g
Trail
90,0
91,0
80,0
70,0
h
Wheelbase
1053,0
1064,0
1106,0
1127,0
i
Chainstay length
433,0
433,0
456,0
456,0
j
Bottom bracket drop
51,5
51,5
65,0
65,0
k
Stack height
603,0
609,0
634,0
644,0
l
Reach
374,0
383,0
390,0
407,0
m
Standover height
-
-
-
-
x
Bottom bracket height
304,0
304,0
309,0
309,0
y
Front center
625,0
636,0
658,0
679,0
