CUBE ACID HYBRID ONE 500 Allroad 29 2019

E-Bike
MTB Cross Country
Groupset
Shimano Altus
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Weight
22,7 kg
Front travel
100mm

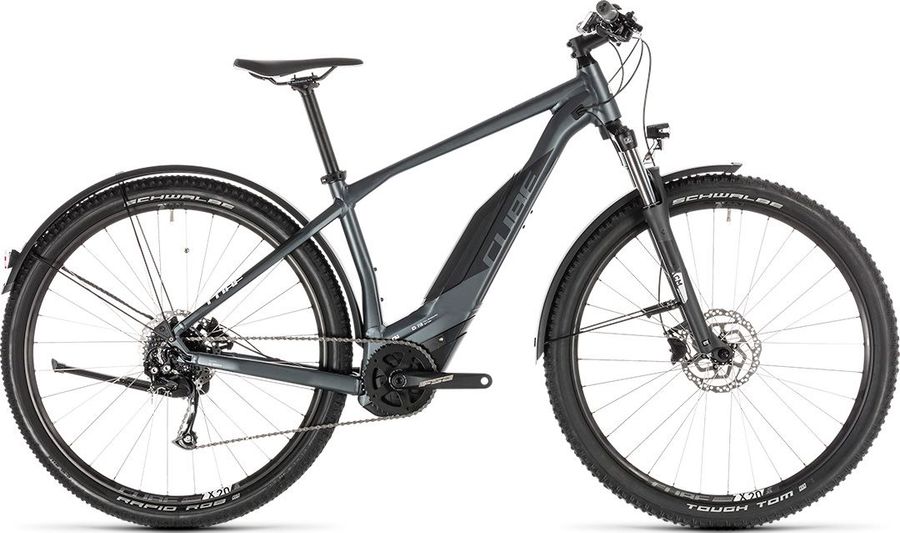

CUBE ACID HYBRID ONE 500 Allroad 29 2019

About the CUBE ACID HYBRID ONE 500 Allroad 29 2019

The CUBE ACID HYBRID ONE 500 Allroad 29 2019 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Altus drivetrain of 9 gears (1x9). Its features include internal routing, hydraulic disc brakes, and tapered head tube. The bike weighs approximately 22,7 kg.

Features

The CUBE ACID HYBRID ONE 500 Allroad 29 2019 has 3 features listed below.
cabeamento-interno
Internal routing More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info

Specifications

Acessories
Grip
CUBE Performance Grip
Pedals
CUBE PP MTB
Remote
Bosch Purion
Components
Steam
CUBE Performance Stem Pro, 31.8mm
Saddle
Natural Fit Active
Battery
Bosch PowerPack 500
Charger
Bosch 2A
Headset
FSA Orbit 1.5B ZS-R, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
Seatpost
CUBE Performance Post, 30.9mm
Handlebar
CUBE Rise Trail Bar, 680mm
Brakes
Shimano BR-MT200 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT200
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT201
BL-MT200
Recommended disc brake rotor
SM-RT10*
SM-RT26*
Drivetrain
Crankset
FSA CK-602, 38T, 175mm
Motor
Bosch Drive Unit Active Plus (50Nm) Cruise (250Watt)
Shifter
Shimano SL-M2000, Rapidfire-Plus
Cassette
Shimano Altus CS-HG200-9 HG
Combination names
11-32T
11-34T
11-36T
Compatible chain
HG 9-speed
Lock ring finish
Phosphate coated
Lock ring material
Steel
Model
CS-HG200-9
Steel gear finish
Phosphate coated
Steel gear pieces
9
Type
HG
Chain
KMC X9
Rear derailleur
Shimano Altus RD-M2000 SGS 9s
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 9-speed
Lower pulley max
36T
Lower pulley min
32T
Model
RD-M2000
P axle finish
Zinc plated
P axle material
Steel
pulley.screws_material
Steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
Pulley cage
SGS
Speeds
9
Upper pulley max
12T
Upper pulley min
11T
Total capacity
45T
Frameset
Frame
Aluminium Superlite, Advanced Hydroforming, Agile Ride Geometry, Double Butted, Tapered Headtube, Internal Cable Routing, Full Integrated Battery
Front suspension
SR Suntour XCM ATB
Wheels
Rims
CUBE ZX20, 32H, Disc
Tires
Schwalbe Tough Tom, Active, 2.25
Rear hub
Shimano FH-TX505, QR, Centerlock
Front hub
Shimano HB-TX505, QR, Centerlock

Geometry

Size 15" 17" 19" 21" 23"
a
Seat tube length
370,0
405,0
450,0
495,0
545,0
b
Seat tube angle
73,5º
73,5º
73,5º
73,5º
73,5º
c
Top tube length
564,0
579,0
599,0
619,0
639,0
d
Head tube length
105,0
112,0
123,0
133,0
148,0
e
Head tube angle
69,0º
69,0º
69,0º
69,0º
69,0º
f
Rake
51,0
51,0
51,0
51,0
51,0
g
Trail
89,0
89,0
89,0
89,0
89,0
h
Wheelbase
1113,0
1129,0
1150,0
1170,0
1192,0
i
Chainstay length
474,0
474,0
474,0
474,0
474,0
j
Bottom bracket drop
65,0
65,0
65,0
65,0
65,0
k
Stack height
619,0
626,0
636,0
645,0
659,0
l
Reach
382,0
395,0
412,0
429,0
445,0
m
Standover height
-
-
-
-
-
x
Bottom bracket height
309,0
309,0
309,0
309,0
309,0
y
Front center
647,0
663,0
684,0
704,0
725,0
