CUBE AIM 2021
Groupset
Shimano Tourney
Frame material
Alloy
Wheel size
27,5" / 29"
Suspension type
Hardtail
Weight
14,7 kg
Front travel
100mm

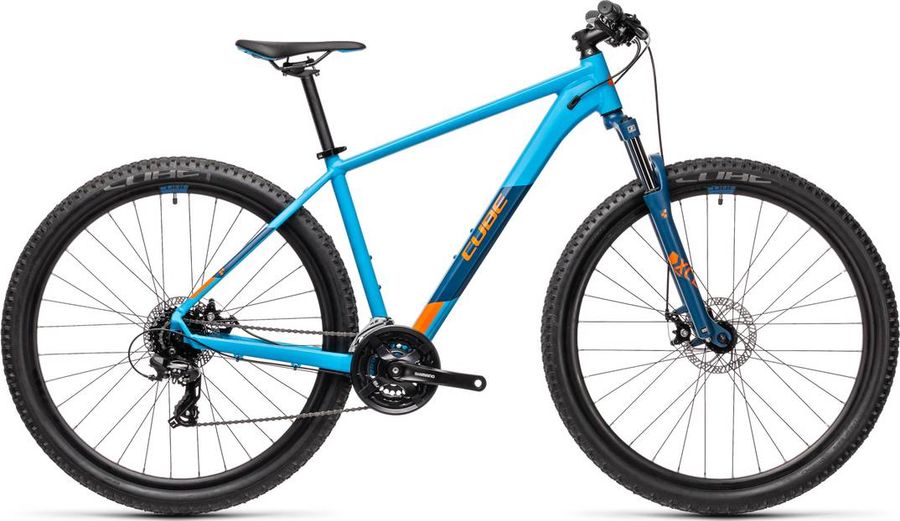

About the CUBE AIM 2021
The CUBE AIM 2021 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Tourney drivetrain of 24 gears (3x8). The bike weighs approximately 14,7 kg.
Specifications
|
Grip
|
CUBE Performance Grip
|
|---|---|
|
Pedals
|
CUBE PP MTB
|
|
Steam
|
CUBE Performance Stem, 31.8mm
|
|---|---|
|
Saddle
|
Natural Fit Venec Lite
|
|
Headset
|
CUBE FPH863, Semi-Integrated
|
|
Seatpost
|
CUBE Performance Post, 27.2mm
|
|
Handlebar
|
CUBE Rise Trail Bar, 680mm
|
|
Brakes
|
Tektro HD-M280
|
|
Crankset
|
Shimano FC-TY 501, 42x34x24T
|
|---|---|
|
Shifter
|
Shimano ST-TX800, EZ Fire Plus
|
|
Front derailleur
|
Shimano FD-TY700-TS6, Topswing, 31.8mm Clamp
|
|
Rear derailleur
|
Shimano Tourney RD-TX800
SGS
8/7s
|
|
|
|
|
Chain
|
KMC Z8
|
|
Cassette
|
Shimano Altus CS-HG200-8
HG
|
|
|
|
|
Frame
|
HPA, High Performance Aluminium
|
|---|---|
|
Front suspension
|
SR Suntour XCE
|
|
Rims
|
CUBE GE803, 32H, Disc
|
|---|---|
|
Tires
|
CUBE IMPAC Smartpac, 2.1
|
|
Rear hub
|
CUBE Alloy Light, QR, 6-Bolt
|
|
Front hub
|
CUBE Alloy Light, QR, 6-Bolt
|
Geometry
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
|
a
Seat tube length
|
355,0
|
405,0
|
420,0
|
470,0
|
515,0
|
|
b
Seat tube angle
|
74,0º
|
73,5º
|
73,5º
|
73,5º
|
73,5º
|
|
c
Top tube length
|
551,0
|
567,0
|
581,0
|
601,0
|
621,0
|
|
d
Head tube length
|
106,0
|
109,0
|
108,5
|
119,5
|
129,5
|
|
e
Head tube angle
|
69,0º
|
69,0º
|
69,0º
|
69,0º
|
69,0º
|
|
f
Rake
|
42,0
|
42,0
|
50,0
|
51,0
|
51,0
|
|
g
Trail
|
91,0
|
91,0
|
90,0
|
89,0
|
89,0
|
|
h
Wheelbase
|
1057,92
|
1068,53
|
1110,56
|
1131,46
|
1152,28
|
|
i
Chainstay length
|
433,0
|
433,0
|
456,0
|
456,0
|
456,0
|
|
j
Bottom bracket drop
|
51,5
|
51,5
|
65,0
|
65,0
|
65,0
|
|
k
Stack height
|
601,0
|
604,0
|
629,0
|
639,0
|
648,0
|
|
l
Reach
|
380,0
|
390,0
|
397,0
|
413,0
|
431,0
|
|
m
Standover height
|
716,0
|
751,0
|
775,0
|
811,0
|
842,0
|
|
x
Bottom bracket height
|
304,0
|
304,0
|
309,0
|
309,0
|
309,0
|
|
y
Front center
|
630,0
|
641,0
|
662,0
|
683,0
|
704,0
|
