BikeWise

CUBE AIM 27.5 2017

MTB Cross Country
Groupset
Shimano Tourney
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Weight
13,5 kg
Front travel
100mm

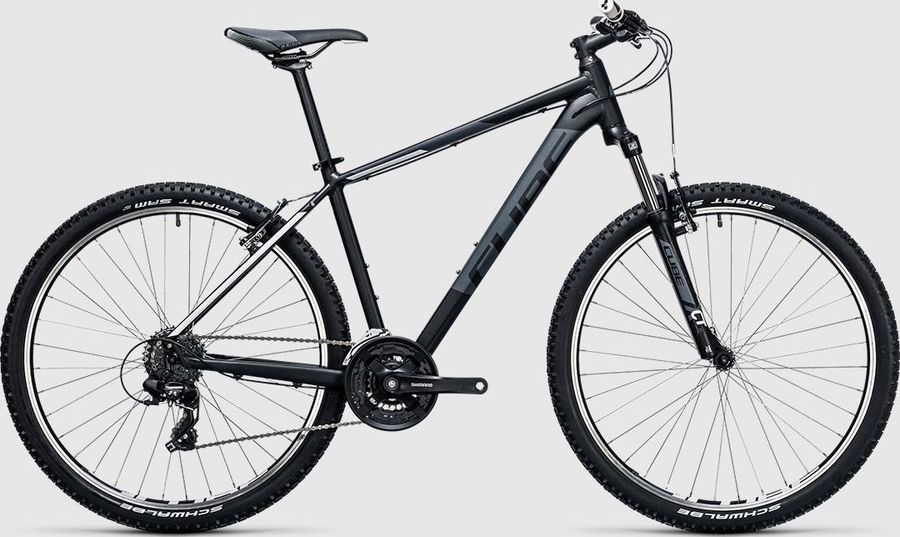

CUBE AIM 27.5 2017

About the CUBE AIM 27.5 2017

The CUBE AIM 27.5 2017 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Tourney drivetrain of 24 gears (3x8). Its features include internal routing. The bike weighs approximately 13,5 kg.

Features

The CUBE AIM 27.5 2017 has 1 features listed below.
cabeamento-interno
Internal routing More info

Specifications

Acessories
Grip
CUBE Performance Grips
Pedals
CUBE PP MTB
Components
Steam
CUBE Performance Stem, 31.8mm
Brakes
Promax, V-Brake
Saddle
CUBE Active 1.1
Headset
CUBE No.10 Semi-Integrated
Seatpost
CUBE Performance Post, 27.2mm
Handlebar
CUBE Rise Trail Bar, 660mm
Drivetrain
Crankset
Shimano FC-M311, 42x32x22T, 170mm
Shifter
Shimano SL-M310, Rapidfire-Plus
Front derailleur
Shimano FD-M313-M6, Downswing, 31.8mm
Rear derailleur
Shimano Tourney RD-TX800 SGS 8/7s
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Resin
Compatible chain
HG 8/7-speed
Lower pulley max
34T
Lower pulley min
28T
Model
RD-TX800
P axle finish
Zinc plated
P axle material
Steel
pulley.screws_material
Steel
Pulley teeth
13/13T
Pulley cage
SGS
Speeds
8/7
Upper pulley max
14T
Upper pulley min
11T
Total capacity
43T
Chain
KMC Z7
Cassette
Shimano Altus CS-HG200-8 HG
Combination names
12-32T
Compatible chain
HG 8-speed
Lock ring finish
Painted
Lock ring material
Steel
Model
CS-HG200-8
Steel gear finish
Phosphate coated
Steel gear pieces
8
Type
HG
Frameset
Frame
Aluminium Lite, AMF, Internal Cable Routing, Easy Mount Kickstand Ready
Front suspension
SR Suntour XCT
Wheels
Rims
CUBE SX, 32H
Tires
Schwalbe Smart Sam, Active, 2.1"
Rear hub
CUBE Aluminium
Front hub
CUBE Aluminium

Geometry

Size 14" 16" 18" 20"
a
Seat tube length
355,0
405,0
450,0
490,0
b
Seat tube angle
73,5º
73,5º
73,5º
73,5º
c
Top tube length
533,0
556,0
578,0
599,0
d
Head tube length
105,0
105,0
125,0
145,0
e
Head tube angle
69,0º
69,0º
70,0º
70,0º
f
Rake
43,0
43,0
44,0
44,0
g
Trail
90,0
90,0
83,0
83,0
h
Wheelbase
1036,0
1059,0
1072,0
1094,0
i
Chainstay length
433,0
433,0
433,0
433,0
j
Bottom bracket drop
51,5
51,5
51,5
51,5
k
Stack height
599,0
599,0
622,0
641,0
l
Reach
358,0
381,0
396,0
411,0
m
Standover height
-
-
-
-
x
Bottom bracket height
304,0
304,0
304,0
304,0
y
Front center
608,0
631,0
644,0
666,0
