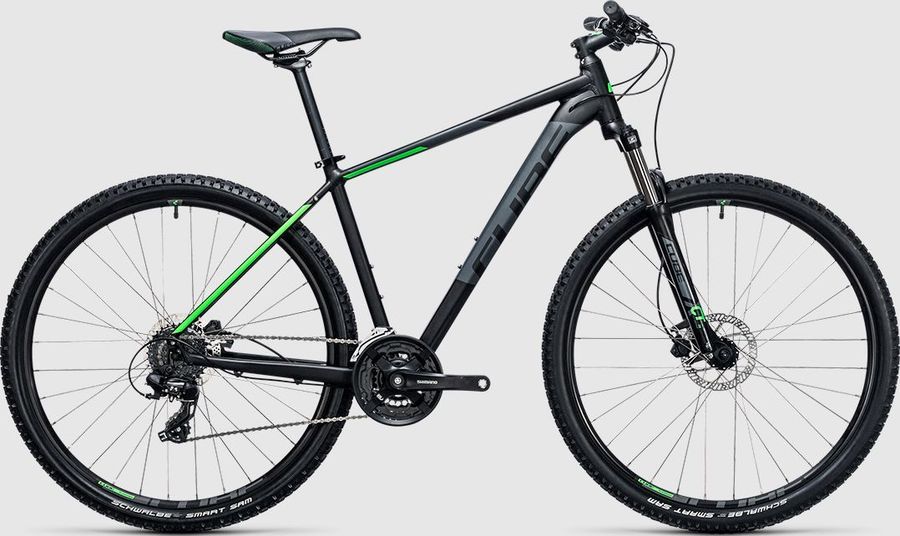

CUBE AIM Pro 2017
Groupset
Shimano Tourney
Frame material
Alloy
Wheel size
27,5" / 29"
Suspension type
Hardtail
Weight
13,95 kg
Front travel
100mm
About the CUBE AIM Pro 2017
The CUBE AIM Pro 2017 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Tourney drivetrain of 24 gears (3x8). Its features include internal routing e hydraulic disc brakes. The bike weighs approximately 13,95 kg.
Features
Internal routing
More info
Internal routing
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Grip
|
CUBE Performance Grips
|
|---|---|
|
Pedals
|
CUBE PP MTB
|
|
Steam
|
CUBE Performance Post, 31.8mm
|
|---|---|
|
Saddle
|
CUBE Active 1.1
|
|
Headset
|
CUBE No.10 Semi-Integrated
|
|
Seatpost
|
CUBE Performance Post, 27.2mm
|
|
Handlebar
|
CUBE Rise Trail Bar, 660mm
|
|
Brakes
|
Tektro HD-M285
|
|
Crankset
|
Shimano FC-TX801, 42x32x22T, 170mm
|
|---|---|
|
Shifter
|
Shimano SL-M310, Rapidfire-Plus
|
|
Front derailleur
|
Shimano FD-M313-M6, Downswing
|
|
Rear derailleur
|
Shimano Tourney RD-TX800
SGS
8/7s
|
|
|
|
|
Chain
|
KMC Z7
|
|
Cassette
|
Shimano Altus CS-HG200-8
HG
|
|
|
|
|
Frame
|
Aluminium Lite, AMF, Internal Cable Routing, Easy Mount Kickstand Ready
|
|---|---|
|
Front suspension
|
SR Suntour XCT
|
|
Rims
|
CUBE SX, 32h, Disc
|
|---|---|
|
Tires
|
Schwalbe Smart Sam Active, 2.1"
|
|
Rear hub
|
CUBE Disc Hub, 6-Bolt
|
|
Front hub
|
CUBE Disc Hub, 6-Bolt
|
Geometry
| Size | 14" | 16" | 17" | 18" | 19" | 20" | 21" | 23" |
|---|---|---|---|---|---|---|---|---|
|
a
Seat tube length
|
355,0
|
405,0
|
420,0
|
450,0
|
470,0
|
490,0
|
515,0
|
565,0
|
|
b
Seat tube angle
|
73,5º
|
73,5º
|
73,0º
|
73,5º
|
73,0º
|
73,5º
|
73,0º
|
73,0º
|
|
c
Top tube length
|
533,0
|
556,0
|
576,0
|
578,0
|
596,0
|
599,0
|
616,0
|
626,0
|
|
d
Head tube length
|
105,0
|
105,0
|
110,0
|
125,0
|
120,0
|
145,0
|
130,0
|
145,0
|
|
e
Head tube angle
|
69,0º
|
69,0º
|
69,5º
|
70,0º
|
70,0º
|
70,0º
|
70,0º
|
70,0º
|
|
f
Rake
|
43,0
|
43,0
|
51,0
|
44,0
|
51,0
|
44,0
|
51,0
|
51,0
|
|
g
Trail
|
90,0
|
90,0
|
86,0
|
83,0
|
82,0
|
83,0
|
82,0
|
82,0
|
|
h
Wheelbase
|
1036,0
|
1059,0
|
1096,0
|
1072,0
|
1111,0
|
1094,0
|
1132,0
|
1142,0
|
|
i
Chainstay length
|
433,0
|
433,0
|
456,0
|
433,0
|
456,0
|
433,0
|
456,0
|
456,0
|
|
j
Bottom bracket drop
|
51,5
|
51,5
|
60,0
|
51,5
|
60,0
|
51,5
|
60,0
|
60,0
|
|
k
Stack height
|
599,0
|
599,0
|
624,0
|
622,0
|
635,0
|
641,0
|
645,0
|
659,0
|
|
l
Reach
|
358,0
|
381,0
|
387,0
|
396,0
|
404,0
|
411,0
|
421,0
|
426,0
|
|
m
Standover height
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
|
x
Bottom bracket height
|
304,0
|
304,0
|
314,0
|
304,0
|
314,0
|
304,0
|
314,0
|
314,0
|
|
y
Front center
|
608,0
|
631,0
|
647,0
|
644,0
|
662,0
|
666,0
|
683,0
|
693,0
|
