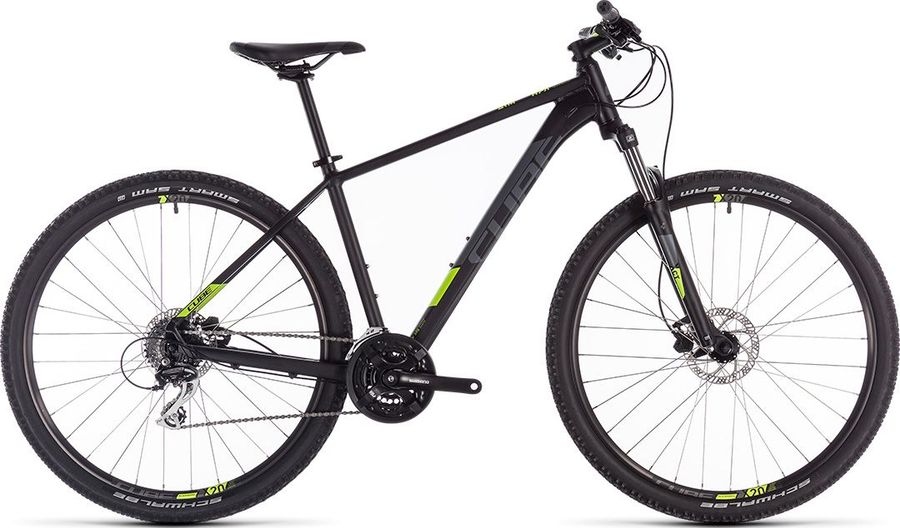

CUBE AIM Pro 2019
Groupset
Shimano Acera
Frame material
Alloy
Wheel size
27,5" / 29"
Suspension type
Hardtail
Weight
14,4 kg
Front travel
100mm
About the CUBE AIM Pro 2019
The CUBE AIM Pro 2019 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Acera drivetrain of 24 gears (3x8). Its features include internal routing e hydraulic disc brakes. The bike weighs approximately 14,4 kg.
Features
Internal routing
More info
Internal routing
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Grip
|
CUBE Race SL Grip 29.5mm, 1-Clamp
|
|---|---|
|
Pedals
|
CUBE PP MTB
|
|
Steam
|
CUBE Performance Stem, 31.8mm
|
|---|---|
|
Saddle
|
CUBE Active 1.1
|
|
Headset
|
CUBE No.10 Semi-Integrated
|
|
Seatpost
|
CUBE Performance Post, 27.2mm
|
|
Handlebar
|
CUBE Rise Trail Bar, 660mm
|
|
Brakes
|
Tektro HD-M275
|
|
Crankset
|
Shimano FC-TY501, 42x34x24T, 170mm
|
|---|---|
|
Shifter
|
Shimano SL-M310, Rapidfire-Plus
|
|
Front derailleur
|
Shimano FD-TY700-TS6, Downswing, 31.8mm Clamp
|
|
Chain
|
KMC Z7
|
|
Cassette
|
Shimano Altus CS-HG200-8
HG
|
|
|
|
|
Rear derailleur
|
Shimano Acera RD-M360
SGS
8/7s
|
|
|
|
|
Frame
|
Aluminium Lite, AMF, Internal Cable Routing, Easy Mount Kickstand Ready
|
|---|---|
|
Front suspension
|
SR Suntour XCT
|
|
Rims
|
CUBE SD20, 32H, Disc
|
|---|---|
|
Tires
|
Schwalbe Smart Sam, Active, 2.1
|
|
Rear hub
|
CUBE Alloy Light, 6-Bolt
|
|
Front hub
|
CUBE Alloy Light, 6-Bolt
|
Geometry
| Size | 14" | 16" | 17" | 18" | 19" | 21" | 23" |
|---|---|---|---|---|---|---|---|
|
a
Seat tube length
|
355,0
|
405,0
|
420,0
|
450,0
|
470,0
|
515,0
|
565,0
|
|
b
Seat tube angle
|
74,0º
|
73,5º
|
73,5º
|
73,5º
|
73,5º
|
73,5º
|
73,5º
|
|
c
Top tube length
|
551,0
|
567,0
|
581,0
|
591,0
|
601,0
|
621,0
|
641,0
|
|
d
Head tube length
|
106,0
|
109,0
|
109,0
|
129,0
|
120,0
|
130,0
|
145,0
|
|
e
Head tube angle
|
69,0º
|
69,0º
|
69,0º
|
69,0º
|
69,0º
|
69,0º
|
69,0º
|
|
f
Rake
|
42,0
|
42,0
|
51,0
|
42,0
|
52,0
|
51,0
|
51,0
|
|
g
Trail
|
91,0
|
91,0
|
89,0
|
91,0
|
88,0
|
89,0
|
89,0
|
|
h
Wheelbase
|
1058,0
|
1069,0
|
1111,0
|
1094,0
|
1132,0
|
1152,0
|
1174,0
|
|
i
Chainstay length
|
433,0
|
433,0
|
456,0
|
433,0
|
456,0
|
456,0
|
456,0
|
|
j
Bottom bracket drop
|
51,5
|
51,5
|
65,0
|
51,5
|
65,0
|
65,0
|
65,0
|
|
k
Stack height
|
601,0
|
604,0
|
629,0
|
623,0
|
639,0
|
648,0
|
663,0
|
|
l
Reach
|
380,0
|
390,0
|
397,0
|
408,0
|
413,0
|
431,0
|
447,0
|
|
m
Standover height
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
|
x
Bottom bracket height
|
304,0
|
304,0
|
309,0
|
304,0
|
309,0
|
309,0
|
309,0
|
|
y
Front center
|
630,0
|
641,0
|
663,0
|
666,0
|
684,0
|
704,0
|
726,0
|
