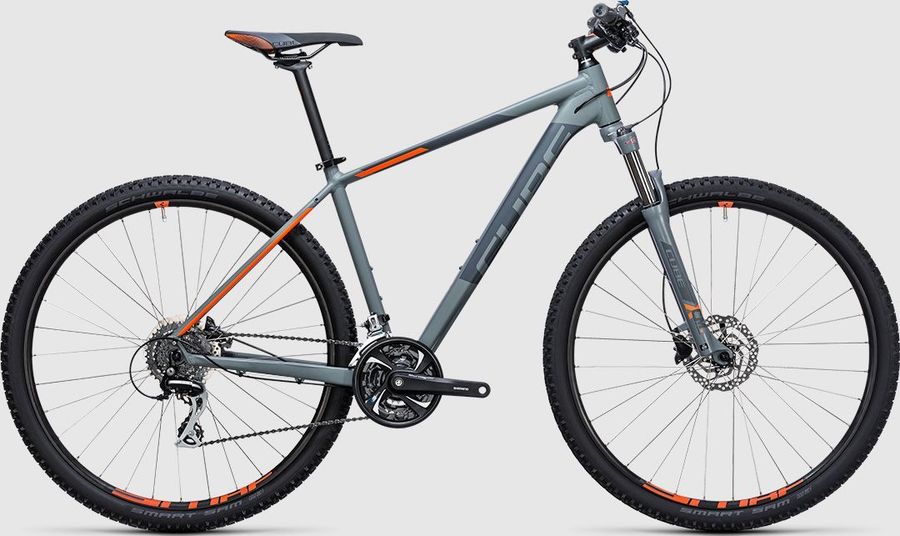

CUBE AIM Race 2017
Groupset
Shimano Acera
Frame material
Alloy
Wheel size
27,5" / 29"
Suspension type
Hardtail
Weight
14 kg
Front travel
100mm
About the CUBE AIM Race 2017
The CUBE AIM Race 2017 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Acera drivetrain. Its features include internal routing, hydraulic disc brakes, and remote lockout. The bike weighs approximately 14 kg.
Features
Internal routing
More info
Internal routing
Hydraulic disc brakes
More info
Hydraulic disc brakes
Remote lockout
More info
Remote lockout
Specifications
|
Grip
|
CUBE Performance Grips
|
|---|---|
|
Pedals
|
CUBE PP MTB
|
|
Steam
|
CUBE Performance Stem, 31.8mm
|
|---|---|
|
Saddle
|
CUBE Active 1.1
|
|
Headset
|
CUBE No.10 Semi-Integrated
|
|
Seatpost
|
CUBE Performance Post, 27.2mm
|
|
Handlebar
|
CUBE Rise Trail Bar, 660mm
|
|
Brakes
|
Shimano Altus BR-M315
|
|
Crankset
|
Shimano FC-TX801, 42x32x22T, 170mm
|
|---|---|
|
Shifter
|
Shimano SL-M310, Rapidfire-Plus
|
|
Front derailleur
|
Shimano FD-M310, Top Swing
|
|
Chain
|
KMC Z7
|
|
Cassette
|
Shimano Altus CS-HG200-8
HG
|
|
|
|
|
Rear derailleur
|
Shimano Acera RD-M360
SGS
8/7s
|
|
|
|
|
Frame
|
Aluminium Lite, AMF, Internal Cable Routing, Easy Mount Kickstand Ready
|
|---|---|
|
Front suspension
|
SR Suntour XCM-RL
|
|
Rims
|
CUBE ZX 20, 32H, Disc
|
|---|---|
|
Tires
|
Schwalbe Smart Sam Active, 2.1"
|
|
Rear hub
|
Shimano FH-TX 505
|
|
Front hub
|
Shimano HB-TX 505
|
Geometry
| Size | 14" | 16" | 17" | 18" | 19" | 20" | 21" | 23" |
|---|---|---|---|---|---|---|---|---|
|
a
Seat tube length
|
355,0
|
405,0
|
420,0
|
450,0
|
470,0
|
490,0
|
515,0
|
565,0
|
|
b
Seat tube angle
|
73,5º
|
73,5º
|
73,0º
|
73,5º
|
73,0º
|
73,5º
|
73,0º
|
73,0º
|
|
c
Top tube length
|
533,0
|
556,0
|
576,0
|
578,0
|
596,0
|
599,0
|
616,0
|
626,0
|
|
d
Head tube length
|
105,0
|
105,0
|
110,0
|
125,0
|
120,0
|
145,0
|
130,0
|
145,0
|
|
e
Head tube angle
|
69,0º
|
69,0º
|
69,5º
|
70,0º
|
70,0º
|
70,0º
|
70,0º
|
70,0º
|
|
f
Rake
|
43,0
|
43,0
|
51,0
|
44,0
|
51,0
|
44,0
|
51,0
|
51,0
|
|
g
Trail
|
90,0
|
90,0
|
86,0
|
83,0
|
82,0
|
83,0
|
82,0
|
82,0
|
|
h
Wheelbase
|
1036,0
|
1059,0
|
1096,0
|
1072,0
|
1111,0
|
1094,0
|
1132,0
|
1142,0
|
|
i
Chainstay length
|
433,0
|
433,0
|
456,0
|
433,0
|
456,0
|
433,0
|
456,0
|
456,0
|
|
j
Bottom bracket drop
|
51,5
|
51,5
|
60,0
|
51,5
|
60,0
|
51,5
|
60,0
|
60,0
|
|
k
Stack height
|
599,0
|
599,0
|
624,0
|
622,0
|
635,0
|
641,0
|
645,0
|
659,0
|
|
l
Reach
|
358,0
|
381,0
|
387,0
|
396,0
|
404,0
|
411,0
|
421,0
|
426,0
|
|
m
Standover height
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
|
x
Bottom bracket height
|
304,0
|
304,0
|
314,0
|
304,0
|
314,0
|
304,0
|
314,0
|
314,0
|
|
y
Front center
|
608,0
|
631,0
|
647,0
|
644,0
|
662,0
|
666,0
|
683,0
|
693,0
|
