CUBE AIM Race 2019

MTB Cross Country
Groupset
Shimano Acera
Frame material
Alloy
Wheel size
27,5" / 29"
Suspension type
Hardtail
Weight
14,4 kg
Front travel
100mm

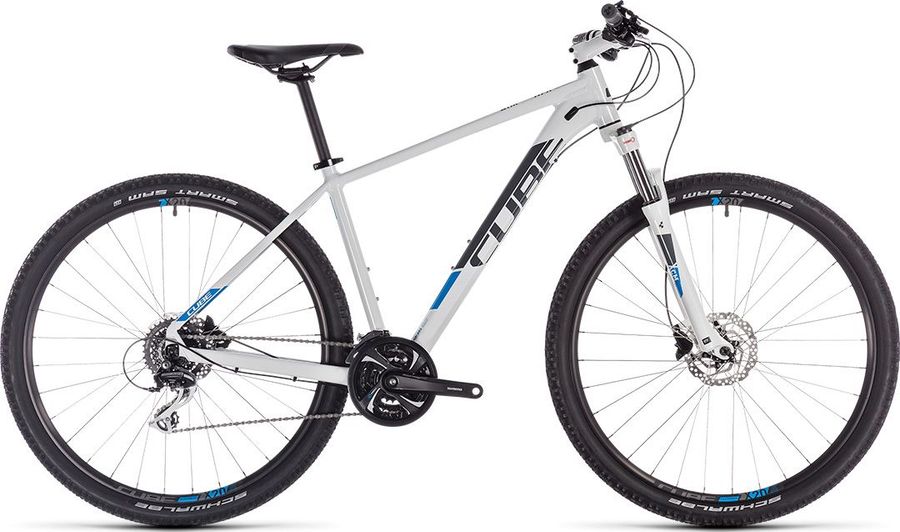

CUBE AIM Race 2019

About the CUBE AIM Race 2019

The CUBE AIM Race 2019 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Acera drivetrain of 24 gears (3x8). Its features include internal routing, hydraulic disc brakes, and remote lockout. The bike weighs approximately 14,4 kg.

Features

The CUBE AIM Race 2019 has 3 features listed below.
cabeamento-interno
Internal routing More info
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info

Specifications

Acessories
Grip
CUBE Race SL Grip 29.5mm, 1-Clamp
Pedals
CUBE PP MTB
Components
Steam
CUBE Performance Stem, 31.8mm
Saddle
CUBE Active 1.1
Headset
CUBE No.10 Semi-Integrated
Seatpost
CUBE Performance Post, 27.2mm
Handlebar
CUBE Rise Trail Bar, 680mm
Brakes
Shimano BR-MT200 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT200
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT201
BL-MT200
Recommended disc brake rotor
SM-RT10*
SM-RT26*
Drivetrain
Crankset
Shimano FC-TY501, 42x34x24T, 170mm
Shifter
Shimano SL-M310, Rapidfire-Plus
Front derailleur
Shimano FD-TY700-TS6, Top Swing, 31.8mm Clamp
Chain
KMC Z7
Cassette
Shimano Altus CS-HG200-8 HG
Combination names
12-32T
Compatible chain
HG 8-speed
Lock ring finish
Painted
Lock ring material
Steel
Model
CS-HG200-8
Steel gear finish
Phosphate coated
Steel gear pieces
8
Type
HG
Rear derailleur
Shimano Acera RD-M360 SGS 8/7s
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 8/7-speed
Lower pulley max
34T
Lower pulley min
28T
Model
RD-M360-SGS
P axle finish
Zinc plated
P axle material
Steel
pulley.screws_material
Steel
Pulley teeth
13/13T
Pulley cage
SGS
Speeds
8/7
Upper pulley max
14T
Upper pulley min
11T
Total capacity
43T
Frameset
Frame
Aluminium Lite, AMF, Internal Cable Routing, Easy Mount Kickstand Ready
Front suspension
SR Suntour XCM
Wheels
Rims
CUBE SD20, 32H, Disc
Tires
Schwalbe Smart Sam, Active, 2.1
Rear hub
FH-TX505, Centerlock
Front hub
HB-TX505, Centerlock

Geometry

Size 14" 16" 17" 18" 19" 21" 23"
a
Seat tube length
355,0
405,0
420,0
450,0
470,0
515,0
565,0
b
Seat tube angle
74,0º
73,5º
73,5º
73,5º
73,5º
73,5º
73,5º
c
Top tube length
551,0
567,0
581,0
591,0
601,0
621,0
641,0
d
Head tube length
106,0
109,0
109,0
129,0
120,0
130,0
145,0
e
Head tube angle
69,0º
69,0º
69,0º
69,0º
69,0º
69,0º
69,0º
f
Rake
42,0
42,0
51,0
42,0
52,0
51,0
51,0
g
Trail
91,0
91,0
89,0
91,0
88,0
89,0
89,0
h
Wheelbase
1058,0
1069,0
1111,0
1094,0
1132,0
1152,0
1174,0
i
Chainstay length
433,0
433,0
456,0
433,0
456,0
456,0
456,0
j
Bottom bracket drop
51,5
51,5
65,0
51,5
65,0
65,0
65,0
k
Stack height
601,0
604,0
629,0
623,0
639,0
648,0
663,0
l
Reach
380,0
390,0
397,0
408,0
413,0
431,0
447,0
m
Standover height
-
-
-
-
-
-
-
x
Bottom bracket height
304,0
304,0
309,0
304,0
309,0
309,0
309,0
y
Front center
630,0
641,0
663,0
666,0
684,0
704,0
726,0
