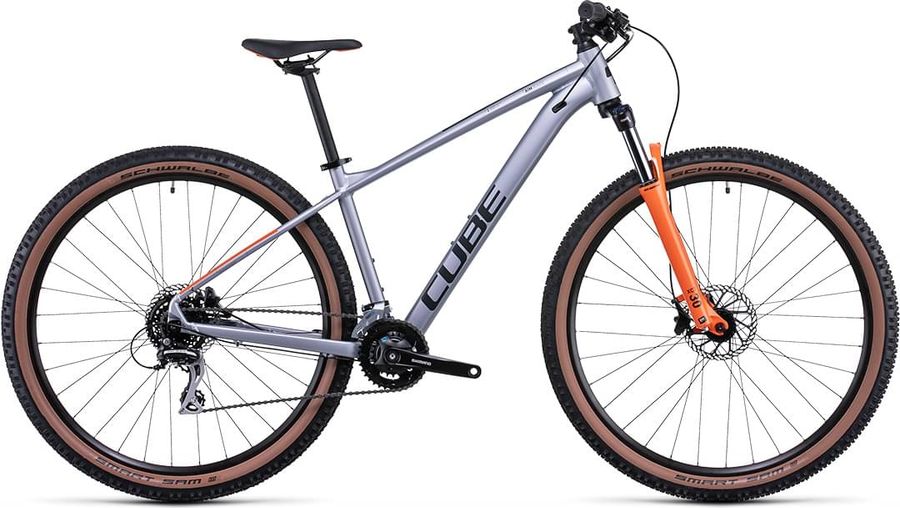

CUBE AIM RACE 2022
Groupset
Shimano Acera
Frame material
Alloy
Wheel size
27,5" / 29"
Suspension type
Hardtail
Weight
14,1 kg
Front travel
100mm
About the CUBE AIM RACE 2022
The CUBE AIM RACE 2022 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Acera drivetrain of 16 gears (2x8). Its features include internal routing, hydraulic disc brakes, and tapered head tube. The bike weighs approximately 14,1 kg.
Features
Internal routing
More info
Internal routing
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Specifications
|
Grip
|
ACID React
|
|---|---|
|
Pedals
|
CUBE PP MTB
|
|
Steam
|
CUBE Performance Stem Pro, 31.8mm
|
|---|---|
|
Saddle
|
Natural Fit Venec Lite
|
|
Headset
|
CUBE FPH868, Top 1 1/8", Bottom 1 1/2", Semi-Integrated
|
|
Seatpost
|
CUBE Performance Post, 27.2mm
|
|
Handlebar
|
CUBE Rise Trail Bar, 680mm
|
|
Brakes
|
Clarks M2
|
|
Crankset
|
Shimano FC-M315, 36x22T
|
|---|---|
|
Shifter
|
Shimano SL-M315, Rapidfire-Plus
|
|
Front derailleur
|
Shimano FD-M315, Top Swing, 31.8mm Clamp
|
|
Cassette
|
Shimano CS-HG31-8
HG
|
|
11-32T 11-34T |
|
|
Chain
|
KMC Z8
|
|
Rear derailleur
|
Shimano Acera RD-M360
SGS
8/7s
|
|
|
|
|
Frame
|
Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Tapered Head Tube, Flat Mount Brake, SIC Mount, FM Kickstand Mount
|
|---|---|
|
Front suspension
|
SR Suntour XCT
|
|
Rims
|
CUBE ZX20, 32H, Disc
|
|---|---|
|
Tires
|
Schwalbe Smart Sam, Active, 2.25
|
|
Rear hub
|
CUBE Alloy Light, QR, 6-Bolt
|
|
Front hub
|
CUBE Alloy Light, QR, 6-Bolt
|
Geometry
| Size | 14" | 16" | 18" | 20" | 22" | 24" |
|---|---|---|---|---|---|---|
|
a
Seat tube length
|
340,0
|
370,0
|
420,0
|
470,0
|
515,0
|
560,0
|
|
b
Seat tube angle
|
74,0º
|
73,5º
|
73,5º
|
73,5º
|
73,5º
|
73,5º
|
|
c
Top tube length
|
546,0
|
566,0
|
586,0
|
606,0
|
626,0
|
646,0
|
|
d
Head tube length
|
108,2
|
111,0
|
111,0
|
121,8
|
141,8
|
156,8
|
|
e
Head tube angle
|
68,5º
|
68,5º
|
68,5º
|
68,5º
|
68,5º
|
68,5º
|
|
f
Rake
|
42,0
|
42,0
|
46,0
|
46,0
|
46,0
|
46,0
|
|
g
Trail
|
95,0
|
95,0
|
98,0
|
98,0
|
98,0
|
98,0
|
|
h
Wheelbase
|
1058,5
|
1073,1
|
1116,4
|
1137,4
|
1159,2
|
1180,6
|
|
i
Chainstay length
|
418,0
|
418,0
|
441,0
|
441,0
|
441,0
|
441,0
|
|
j
Bottom bracket drop
|
51,5
|
51,5
|
65,0
|
65,0
|
65,0
|
65,0
|
|
k
Stack height
|
586,0
|
588,6
|
618,3
|
628,4
|
647,0
|
660,9
|
|
l
Reach
|
375,4
|
389,0
|
400,2
|
417,2
|
431,7
|
447,6
|
|
m
Standover height
|
698,0
|
711,0
|
750,0
|
783,0
|
815,0
|
849,0
|
|
x
Bottom bracket height
|
304,0
|
304,0
|
309,0
|
309,0
|
309,0
|
309,0
|
|
y
Front center
|
646,0
|
660,0
|
683,0
|
704,0
|
726,0
|
747,0
|
