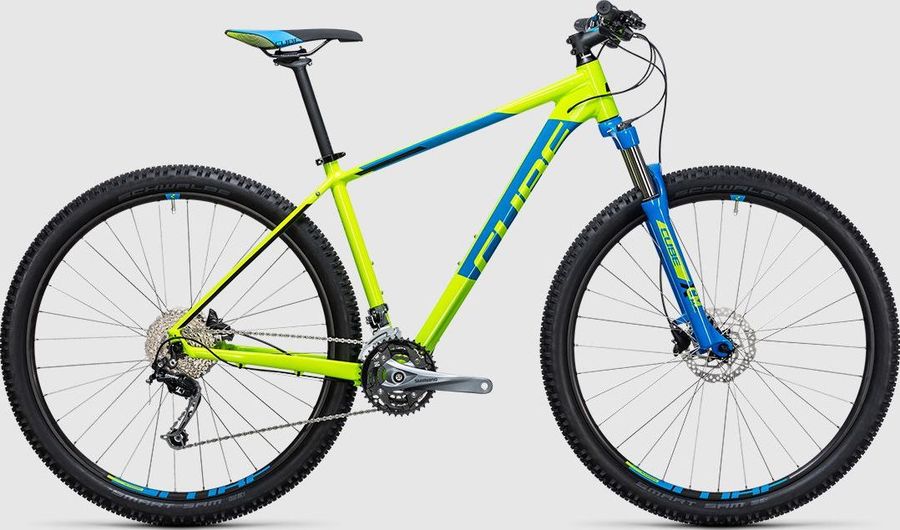

CUBE AIM SL 2017
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
27,5" / 29"
Suspension type
Hardtail
Weight
14,4 kg
Front travel
100mm
About the CUBE AIM SL 2017
The CUBE AIM SL 2017 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 27 gears (3x9). Its features include internal routing, hydraulic disc brakes, and remote lockout. The bike weighs approximately 14,4 kg.
Features
Internal routing
More info
Internal routing
Hydraulic disc brakes
More info
Hydraulic disc brakes
Remote lockout
More info
Remote lockout
Specifications
|
Grip
|
CUBE Performance Grip
|
|---|---|
|
Pedals
|
CUBE PP MTB
|
|
Steam
|
CUBE Performance Stem Pro, 31.8mm
|
|---|---|
|
Saddle
|
CUBE Active 1.1
|
|
Headset
|
FSA No.10, Semi-Integrated
|
|
Seatpost
|
CUBE Performance Post, 27.2mm
|
|
Handlebar
|
CUBE Rise Trail Bar, 680mm
|
|
Brakes
|
Shimano Altus BR-M315
|
|
Crankset
|
Shimano FC-M3000, 40x30x22T, 175mm
|
|---|---|
|
Shifter
|
Shimano SL-M370, Rapidfire-Plus
|
|
Front derailleur
|
Shimano FD-M4000, Downswing, 31,8
|
|
Cassette
|
Shimano CS-HG300
|
|
Rear derailleur
|
Shimano Deore RD-M592
SGS
9s
|
|
|
|
|
Chain
|
Shimano CN-HG53
299 g
|
|
|
|
|
Frame
|
Aluminium Lite, AMF, Internal Cable Routing, Easy Mount Kickstand Ready
|
|---|---|
|
Front suspension
|
SR Suntour XCM-RL
|
|
Rims
|
CUBE ZX20, 32H, Disc
|
|---|---|
|
Tires
|
Schwalbe Smart Sam, Active, 2.25"
|
|
Rear hub
|
Shimano FH-TX505
|
|
Front hub
|
Shimano HB-TX505
|
Geometry
| Size | 14" | 16" | 17" | 18" | 19" | 20" | 21" | 23" |
|---|---|---|---|---|---|---|---|---|
|
a
Seat tube length
|
355,0
|
405,0
|
420,0
|
450,0
|
470,0
|
490,0
|
515,0
|
565,0
|
|
b
Seat tube angle
|
73,5º
|
73,5º
|
73,0º
|
73,5º
|
73,0º
|
73,5º
|
73,0º
|
73,0º
|
|
c
Top tube length
|
533,0
|
556,0
|
576,0
|
578,0
|
596,0
|
599,0
|
616,0
|
626,0
|
|
d
Head tube length
|
105,0
|
105,0
|
110,0
|
125,0
|
120,0
|
145,0
|
130,0
|
145,0
|
|
e
Head tube angle
|
69,0º
|
69,0º
|
69,5º
|
70,0º
|
70,0º
|
70,0º
|
70,0º
|
70,0º
|
|
f
Rake
|
43,0
|
43,0
|
51,0
|
44,0
|
51,0
|
44,0
|
51,0
|
51,0
|
|
g
Trail
|
90,0
|
90,0
|
86,0
|
83,0
|
82,0
|
83,0
|
82,0
|
82,0
|
|
h
Wheelbase
|
1036,0
|
1059,0
|
1096,0
|
1072,0
|
1111,0
|
1094,0
|
1132,0
|
1142,0
|
|
i
Chainstay length
|
433,0
|
433,0
|
456,0
|
433,0
|
456,0
|
433,0
|
456,0
|
456,0
|
|
j
Bottom bracket drop
|
51,5
|
51,5
|
60,0
|
51,5
|
60,0
|
51,5
|
60,0
|
60,0
|
|
k
Stack height
|
599,0
|
599,0
|
624,0
|
622,0
|
635,0
|
641,0
|
645,0
|
659,0
|
|
l
Reach
|
358,0
|
381,0
|
387,0
|
396,0
|
404,0
|
411,0
|
421,0
|
426,0
|
|
m
Standover height
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
|
x
Bottom bracket height
|
304,0
|
304,0
|
314,0
|
304,0
|
314,0
|
304,0
|
314,0
|
314,0
|
|
y
Front center
|
608,0
|
631,0
|
647,0
|
644,0
|
662,0
|
666,0
|
683,0
|
693,0
|
