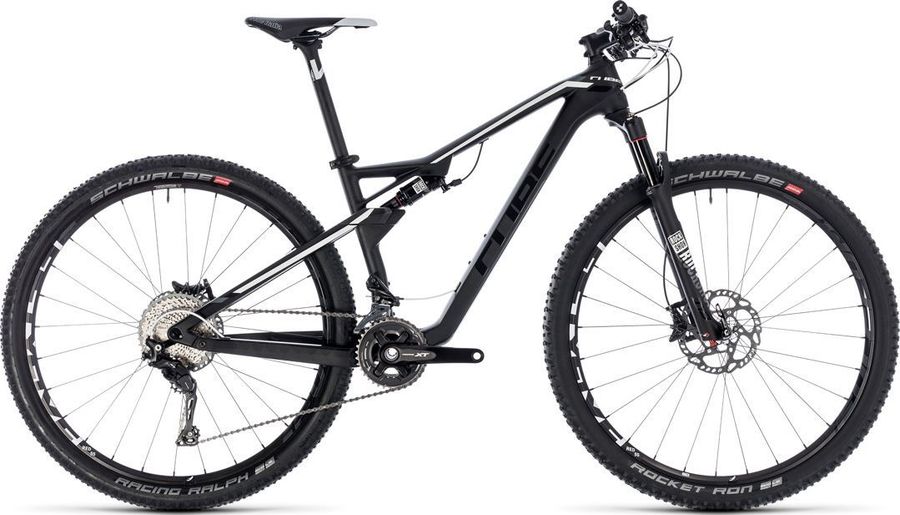

CUBE AMS 100 C:68 Race 29 2018

MTB Cross Country

Groupset

Shimano XT

Frame material

Carbon

Wheel size

29"

Suspension type

Full suspension

Weight

11,6 kg

Front travel

100mm

Rear travel

100mm

About the CUBE AMS 100 C:68 Race 29 2018

The CUBE AMS 100 C:68 Race 29 2018 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a Shimano XT drivetrain of 22 gears (2x11). Its features include boost 110 , boost 148, and hydraulic disc brakes. The bike weighs approximately 11,6 kg.

Features

The CUBE AMS 100 C:68 Race 29 2018 has 5 features listed below.

Boost 110 More info

Boost 148 More info

Hydraulic disc brakes More info

Tapered head tube More info

Tubeless ready More info

Specifications

Acessories
Grip	CUBE Race SL Grip 29.5 1-Clamp

Components
Steam	Newmen Evolution SL 318.4, 31.8mm
Saddle	Selle Italia X3
Headset	FSA Orbit I-t, Integrated, Top 1 1/8", Bottom 1 1/2"
Seatpost	Newmen Advanced, 31.6mm
Handlebar	Newmen Advanced 318.0, 740mm
Brakes	Shimano Deore XT BR-M8000 403 (BL-M8000) g Hydraulic disc brake 2 piston
Average weight (g) 403 (BL-M8000) Brake hose color kit Black Brake hose kit SM-BH90-SB Brake type Hydraulic disc brake Caliper finish Painted Caliper material Aluminum Caliper fixing bolt anti loosen method Snap ring Caliper fixing bolt material Steel Caliper fixing bolt tool size 5 mm Primary color Series color Hose joint Banjo ICE TECHNOLOGIES pad compatible caliper Model BR-M8000 Mount type Post-type Oil SHIMANO Mineral One way bleeding Pad option G04S Metal Pad option J04C Metal Pad standard G02A Resin G03A Resin Pad standard J02A Resin J03A Resin Pad mount Pad axle Piston 2 Piston material Ceramic Recommended brake lever BL-M8000 BL-T8000 Recommended disc brake rotor RT-MT800 SM-RT86

Drivetrain
Crankset	Shimano XT FC-M8000-B2, Boost, 36x26T, 175mm (180mm for largest frame size)
Shifter	Shimano XT SL-M8000-I, Direct Attach
Front derailleur	Shimano XT FD-M8020-D, Side Swing
Cassette	Shimano Deore XT CS-M8000 HG
Aluminum gear pieces 2 Aluminum spider arm finish Anodized Aluminum spider arm pieces 2 Combination names 11-40T 11-42T 11-46T Compatible chain HG 11-speed, LG Lock ring finish Anodized Lock ring material Aluminum Model CS-M8000 Steel gear finish Shot-Ni Steel gear pieces 9 Type HG Weights 11-40T: 411g 11-42T: 434g 11-46T: 437g
Chain	Shimano CN-HG601 257 g
Average weight (g) 257 Chromizing treatment roller link pin Model CN-HG601-11 Pin link plate Gray Roller link plate SIL-TEC Type HG-X11
Rear derailleur	Shimano RD-M8000-SGS 275 g SGS 11s
Average weight (g) 275 B axle hollow B axle material Stainless steel Bracket finish Painted Bracket material Aluminum Bracket body finish Painted Bracket body material Aluminum Compatible chain HG-X 11-speed Lower pulley max 40T(3x11-speed), 42T(2x11-speed), 46T(1x11-speed) Lower pulley min 40T Model RD-M8000-SGS P axle material Steel pulley.guide_pulley_bearing Sealed bearing pulley.screws_material Stainless steel pulley.sunken_type_pulley_screw Pulley teeth 11T pulley.tension_pulley_bearing Sealed bearing Pulley cage SGS Speeds 11 Upper pulley max 11T Upper pulley min 11T Total capacity 47T

Frameset
Frame	C:68 Monocoque Advanced Twin Mold Technology, ARG, ERC, FSP 4-Link, Boost148, AXH
Rear suspension	RockShox Monarch XX 275 g
Body eyelet Standard Compression tune H, L, L3, M Eye to eye stroke 152x31, 165x38, 184x44, 190x51, 200x51, 200x57, 216x63 Lockout force 320, 380, 430 Model RS-MNR-XX-C2 Name Monarch XX Rebound tune H, L, M Shaft eyelet Standard Weight based on 165x38, standard air can, standard eyelet, no hardware Weight 275
Front suspension	RockShox SID XX Solo Air 1420 g
Color Diffusion Black, Gloss Black, Gloss White fork offset 40mm (26"), 42mm (27.5"), 46mm (29"), 51mm (29") Max tire width (mm) 62 Maximum rotor size 200mm Minimum rotor size 160mm, n/a Model FS-SID-XX-A4 Name SID XX Spring Solo Air Travel (mm) 100mm, 120mm, 80mm Upper tube type 32mm straight wall aluminum Weight based on 26", 265mm tapered steerer with XLoc, QR lower leg. Weight 1420 Wheel size 26", 27.5", 29"

Wheels
Rims	Fulcrum Red 55, 28/28 Spokes, 15x110mm / 12x148mm, 622x23C, Tubeless Ready
Tires	Schwalbe Rocket Ron, Addix Speed, Kevlar, 2.25, LiteSkin

Follow your favorite drivers

Receive notifications when your favorite riders finish UCI races.

XT 2 × 11

Crank: 36-26T

Cassette: 11-42T

Speeds: 22s

Gearing

Average

0,62

Average

3,28

Compared to similar bikes, the CUBE AMS 100 C:68 Race 29 2018 has an excellent uphill performance and a good downhill performance.

Report incorrect information

Geometry

Size	16"	18"	20"	22"
a Seat tube length	370,0	420,0	470,0	520,0
b Seat tube angle	74,5º	74,5º	74,5º	74,5º
c Top tube length	569,0	594,0	617,0	640,0
d Head tube length	97,0	107,0	117,0	127,0
e Head tube angle	70,0º	70,0º	70,0º	70,0º
f Rake	50,0	51,0	51,0	51,0
g Trail	83,0	82,0	82,0	82,0
h Wheelbase	1103,0	1129,0	1153,0	1176,0
i Chainstay length	447,0	447,0	447,0	447,0
j Bottom bracket drop	42,0	42,0	42,0	42,0
k Stack height	594,0	604,0	613,0	622,0
l Reach	409,0	431,0	451,0	471,0
m Standover height	-	-	-	-
x Bottom bracket height	332,0	332,0	332,0	332,0
y Front center	659,0	685,0	709,0	732,0
