CUBE AMS 100 C:68 RACE 29 2021

MTB Cross Country
Groupset
SRAM GX Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
12,4 kg
Front travel
120mm
Rear travel
100mm

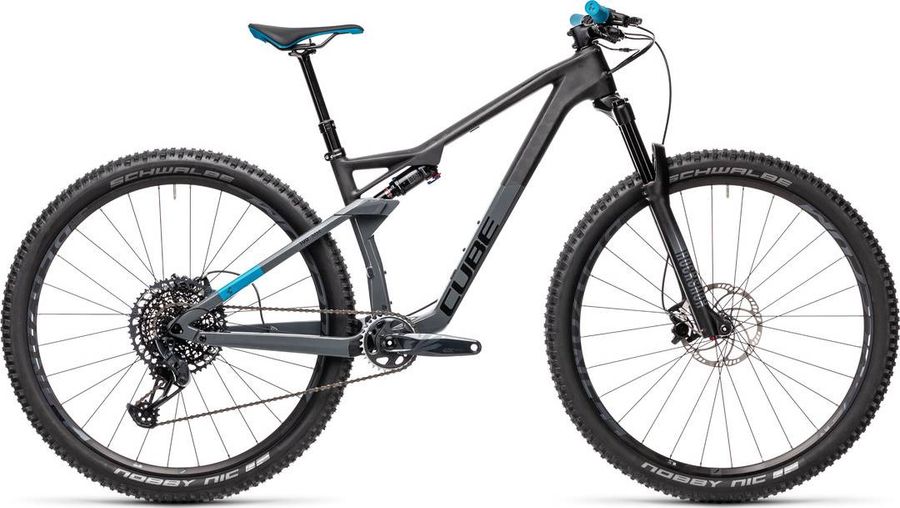

CUBE AMS 100 C:68 RACE 29 2021

About the CUBE AMS 100 C:68 RACE 29 2021

The CUBE AMS 100 C:68 RACE 29 2021 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost e hydraulic disc brakes. The bike weighs approximately 12,4 kg.

Features

The CUBE AMS 100 C:68 RACE 29 2021 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
CUBE Race SL Grip 29.5mm, 1-Clamp
Components
Steam
Newmen Evolution 318.4, 31.8mm
Saddle
Natural Fit Nuance Lite
Headset
VP Integrated, Top 1 1/8", Bottom 1 1/2"
Seatpost
CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm, 130mm (120mm for size S)
Handlebar
Newmen Evolution SL 318.10, 760mm
Brakes
Magura MT Thirty
Drivetrain
Crankset
SRAM GX Eagle™, 30T
Shifter
SRAM GX Eagle™ Trigger
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Chain
SRAM SX Eagle
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
C:68, Carbon Technology
Front suspension
RockShox Recon Gold RL Solo Air
Color
Diffusion Black, Gloss Black
fork offset
42mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
62, n/a
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-RCNG-RL-A5
Name
Recon Gold RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 130mm, 80mm
Upper tube type
32mm straight wall aluminum
Wheel size
27.5", 29"
Rear suspension
RockShox Monarch RL 215 g
Body eyelet
Standard
Compression tune
H, L, L3, M
Eye to eye stroke
152x31, 165x38, 184x44, 190x51, 200x51, 200x57, 216x63
Lockout force
430
Model
RS-MNR-RL-C2
Name
Monarch RL
Rebound tune
H, L, M
Shaft eyelet
Standard
Weight based on
165x38, standard air can, standard eyelet, no hardware
Weight
215
Wheels
Rims
Fulcrum Red 77
Tires
Schwalbe Nobby Nic, Addix Performance, Kevlar, 2.35

Geometry

Size SM MD LG XL
a
Seat tube length
370,0
420,0
470,0
520,0
b
Seat tube angle
73,2º
73,2º
73,2º
73,2º
c
Top tube length
573,0
598,0
621,0
644,0
d
Head tube length
97,0
107,0
117,0
127,0
e
Head tube angle
68,7º
68,7º
68,7º
68,7º
f
Rake
51,0
50,0
50,0
49,0
g
Trail
91,0
92,0
92,0
93,0
h
Wheelbase
1113,0
1138,0
1162,0
1185,0
i
Chainstay length
447,0
447,0
447,0
447,0
j
Bottom bracket drop
32,0
32,0
32,0
32,0
k
Stack height
603,0
613,0
622,0
632,0
l
Reach
395,0
418,0
438,0
458,0
m
Standover height
754,0
752,0
753,0
757,0
x
Bottom bracket height
342,0
342,0
342,0
342,0
y
Front center
668,0
693,0
717,0
740,0
