BikeWise

CUBE AMS 100 C:68 SL 29 2018

MTB Cross Country
Groupset
Shimano XTR
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
10,8 kg
Front travel
100mm
Rear travel
100mm

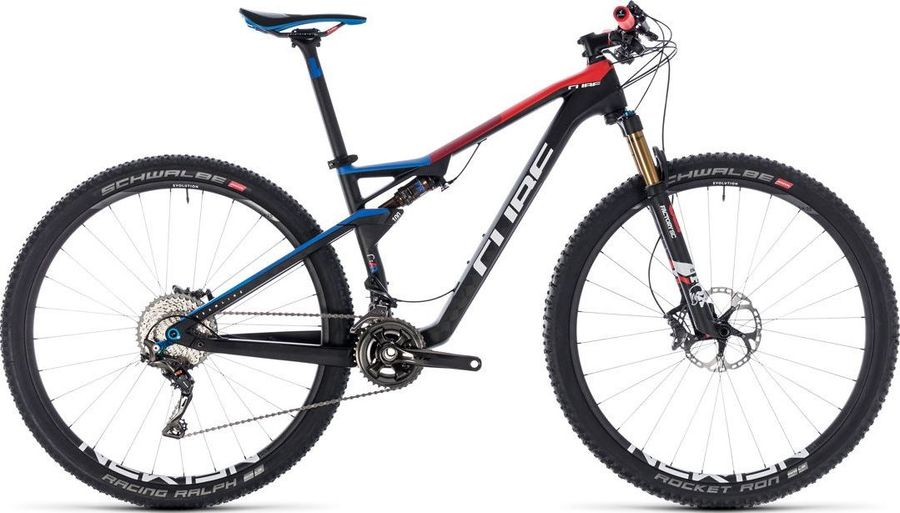

CUBE AMS 100 C:68 SL 29 2018

About the CUBE AMS 100 C:68 SL 29 2018

The CUBE AMS 100 C:68 SL 29 2018 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a Shimano XTR drivetrain of 22 gears (2x11). Its features include boost 110 , boost 148, and hydraulic disc brakes. The bike weighs approximately 10,8 kg.

Features

The CUBE AMS 100 C:68 SL 29 2018 has 6 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
trava-remota-guidao
Remote lockout More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
CUBE SCR
Components
Steam
Newmen Evolution 318.4, 31.8mm
Saddle
CUBE Race SL Carbon 145
Headset
FSA Orbit I-t, Integrated, Top 1 1/8", Bottom 1 1/2"
Seatpost
Newmen Advanced, 31.6mm
Handlebar
Newmen Advanced 318.0, 740mm
Brakes
Shimano XTR BR-M9000 316.1 g Hydraulic disc brake 2 piston
Average weight (g)
316.1
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Magnesium
Caliper fixing bolt anti loosen method
Wiring
Caliper fixing bolt material
Ti
Caliper fixing bolt tool size
** 4 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M9000
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
J02A Resin
J03A Resin
Pad option
J04C Metal
Pad standard
G02A Resin
G03A Resin
Pad standard
G04Ti Metal
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended disc brake rotor
SM-RT99
* SM-RT99-A
Drivetrain
Crankset
Shimano XTR FC-M9020-B2, Boost, 36x26T, 175mm
Shifter
Shimano XTR SL-M9000-I Direct Attach
Front derailleur
Shimano XTR FD-M9020-D, Direct Mount, Side Swing
Cassette
Shimano Deore XT CS-M8000 HG
Aluminum gear pieces
2
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
2
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M8000
Steel gear finish
Shot-Ni
Steel gear pieces
9
Type
HG
Weights
11-40T: 411g
11-42T: 434g
11-46T: 437g
Chain
Shimano CN-HG601 257 g
Average weight (g)
257
Chromizing treatment roller link pin
Model
CN-HG601-11
Pin link plate
Gray
Roller link plate
SIL-TEC
Type
HG-X11
Rear derailleur
Shimano XTR RD-M9000-SGS 224 g SGS 11s
Average weight (g)
224
B axle finish
Anodized
B axle hollow
B axle material
Aluminum
Bracket finish
Anodized
Bracket material
Aluminum
Bracket body finish
Anodized
Bracket body material
Aluminum
Cable fixing bolt finish
Black
Cable fixing bolt material
Stainless steel
Compatible chain
HG-X 11-speed
Lower pulley max
40T(3x11-speed),
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M9000-SGS
P axle material
Steel
Pulley bolts material
Stainless steel
G pulley bearing
Sealed bearing
Sunken type pulley bolt
T pulley bearing
Sealed bearing
Pulley teeth
11T
Pulley cage
SGS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
45T
Frameset
Frame
C:68 Monocoque Advanced Twin Mold Technology, ARG, ERC, FSP 4-Link, Boost148, AXH
Front suspension
Fox 32 SC Float Factory Kashima
Rear suspension
Fox Float DPS Factory Kashima
Wheels
Rims
Newmen Evolution SL A.25, 28/28 Spokes, 15x110mm / 12x148mm, Tubeless Ready
Tires
Schwalbe Rocket Ron, Addix Speed, Kevlar, 2.25, LiteSkin

Geometry

Size 16" 18" 20" 22"
a
Seat tube length
370,0
420,0
470,0
520,0
b
Seat tube angle
74,5º
74,5º
74,5º
74,5º
c
Top tube length
569,0
594,0
617,0
640,0
d
Head tube length
97,0
107,0
117,0
127,0
e
Head tube angle
70,0º
70,0º
70,0º
70,0º
f
Rake
50,0
51,0
51,0
51,0
g
Trail
83,0
82,0
82,0
82,0
h
Wheelbase
1103,0
1129,0
1153,0
1176,0
i
Chainstay length
447,0
447,0
447,0
447,0
j
Bottom bracket drop
42,0
42,0
42,0
42,0
k
Stack height
594,0
604,0
613,0
622,0
l
Reach
409,0
431,0
451,0
471,0
m
Standover height
-
-
-
-
x
Bottom bracket height
332,0
332,0
332,0
332,0
y
Front center
659,0
685,0
709,0
732,0
