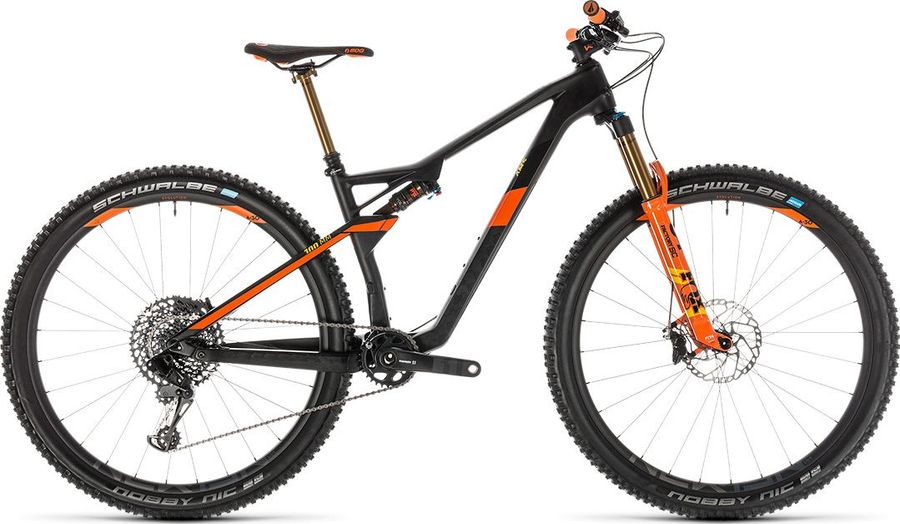

CUBE AMS 100 C:68 TM 29 2019

MTB Cross Country
Groupset
SRAM GX Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
11,9 kg
Front travel
120mm
Rear travel
100mm
CUBE AMS 100 C:68 TM 29 2019

About the CUBE AMS 100 C:68 TM 29 2019

The CUBE AMS 100 C:68 TM 29 2019 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 11,9 kg.

Features

The CUBE AMS 100 C:68 TM 29 2019 has 6 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
SDG Slater
Pedals
None included
Components
Steam
Newmen Evolution 318.4, 31.8mm
Saddle
SDG FLY MTN 2
Headset
FSA Orbit I-t, Integrated, Top 1 1/8", Bottom 1 1/2"
Seatpost
Fox Transfer Factory 31.6mm, Kashima coated, 457x150mm (409x125mm for smallest frame size)
Handlebar
Newmen Evolution 318.20, 760mm
Brake lever
Shimano XT BR-M8000
Brakes
Shimano Deore XT BR-M8020 Hydraulic disc brake 4 piston
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBLS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M8020
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
D01S Resin
D03S Resin
Pad standard
H01A Resin
H03A Resin
Pad standard
H03C Metal
Pad mount
Pad axle
Piston
4
Piston material
Ceramic
Recommended disc brake rotor
RT-MT800
SM-RT99
RT-EM810
RT-EM910
Drivetrain
Crankset
SRAM X1 Carbon Boost Eagle™ DUB, 30T, 175mm (170mm for smallest frame size)
Shifter
SRAM GX Eagle™ Trigger
Bottom bracket
Press-fit
Front derailleur
Direct mount (none included)
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
C:68 Monocoque Advanced Twin Mold Technology, ARG, ERC, FSP 4-Link, Boost 148, AXH
Rear suspension
Fox Float DPS Factory
Front suspension
Fox 34 Float Factory Kashima
Wheels
Rims
Newmen Evolution SL A.30, 28/28 Spokes, 15x110mm / 12x148mm, Tubeless Ready
Tires
Schwalbe Nobby Nic, Addix Speedgrip, Kevlar, Tubeless Easy, 2.35
Spokes
Newmen Evolution SL A.30 wheelset, straightpull
Rear hub
Newmen Evolution SL A.30 wheelset, 15mm x 110mm front, 12mm x 148mm rear
Front hub
Newmen Evolution SL A.30 wheelset, 15mm x 110mm front, 12mm x 148mm rear

Geometry

Size 16" 18" 20" 22"
a
Seat tube length
370,0
420,0
470,0
520,0
b
Seat tube angle
73,5º
73,5º
73,5º
73,5º
c
Top tube length
573,0
598,0
621,0
644,0
d
Head tube length
97,0
107,0
117,0
127,0
e
Head tube angle
69,0º
69,0º
69,0º
69,0º
f
Rake
55,0
53,0
52,0
53,0
g
Trail
85,0
87,0
88,0
87,0
h
Wheelbase
1113,0
1138,0
1161,0
1185,0
i
Chainstay length
447,0
447,0
447,0
447,0
j
Bottom bracket drop
32,0
32,0
32,0
32,0
k
Stack height
603,0
613,0
622,0
632,0
l
Reach
395,0
418,0
438,0
458,0
m
Standover height
-
-
-
-
x
Bottom bracket height
342,0
342,0
342,0
342,0
y
Front center
668,0
693,0
716,0
740,0
