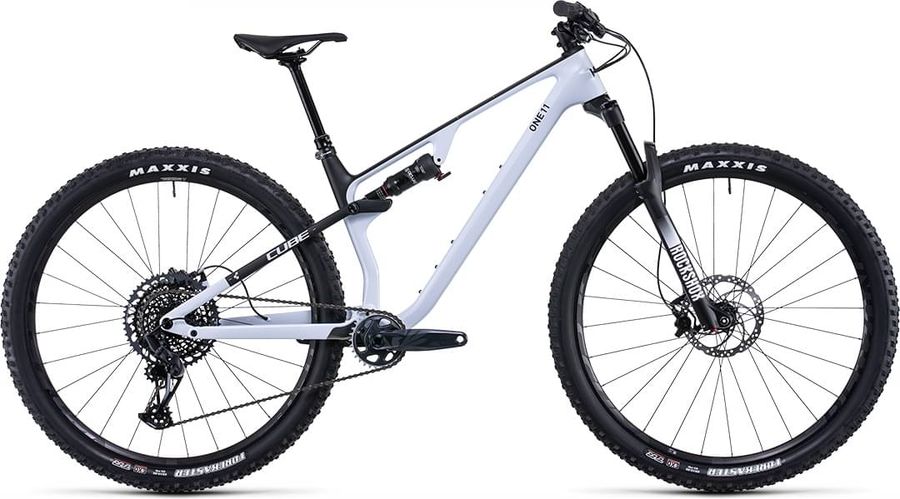

CUBE AMS ONE11 C:68X PRO 29 2022

MTB Trail
Groupset
SRAM GX Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
12,4 kg
Front travel
120mm
CUBE AMS ONE11 C:68X PRO 29 2022

About the CUBE AMS ONE11 C:68X PRO 29 2022

The CUBE AMS ONE11 C:68X PRO 29 2022 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 12,4 kg.

Features

The CUBE AMS ONE11 C:68X PRO 29 2022 has 6 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
SDG Thrice
Components
Steam
Newmen Evolution SL 318.4, 31.8mm
Saddle
Natural Fit Nuance
Headset
ACROS Integrated, Top 1 1/8", Bottom 1 1/2", Fiber Inserts for 0.6° Angle Adjustment
Seatpost
CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 30.9mm, (S: 125mm, M/L/XL: 150mm)
Handlebar
Newmen Evolution 318.20, 760mm
Brakes
Magura MT Thirty
Drivetrain
Crankset
SRAM GX Eagle™ Boost DUB, 30T, 175mm (170mm for size S)
Shifter
SRAM GX Eagle™ Trigger
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Chain
SRAM SX Eagle
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
C:68X Monocoque Advanced Twin Mold Technology, FSP 4-Link, Boost 148, UDH™
Front suspension
RockShox Recon Gold RL Solo Air
Color
Diffusion Black, Gloss Black
fork offset
42mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
62, n/a
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-RCNG-RL-A5
Name
Recon Gold RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 130mm, 80mm
Upper tube type
32mm straight wall aluminum
Wheel size
27.5", 29"
Rear suspension
RockShox Deluxe Select+ 340 g
Body eyelet
No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
RL, RT
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x50(TR), 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Lockout force
320, 380, 430
Model
RS-DLX-SELP-B2
Name
Deluxe Select+
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
340
Wheels
Rims
Fulcrum Red 77, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
Tires
Maxxis Forekaster, EXO, Tubeless Ready, 2.35

Geometry

Size SM MD LG XL
a
Seat tube length
370,0
420,0
470,0
520,0
b
Seat tube angle
73,33º
73,36º
73,38º
73,41º
c
Top tube length
577,22
602,22
627,22
652,17
d
Head tube length
100,0
110,0
120,0
135,0
e
Head tube angle
66,03º
66,06º
66,08º
66,11º
f
Rake
44,0
44,0
44,0
44,0
g
Trail
118,0
118,0
118,0
118,0
h
Wheelbase
1145,32
1171,09
1196,87
1223,03
i
Chainstay length
448,5
448,5
448,5
448,5
j
Bottom bracket drop
32,94
33,15
33,35
33,55
k
Stack height
595,95
605,44
614,91
628,97
l
Reach
405,33
427,32
449,32
469,68
m
Standover height
769,81
768,1
773,69
768,57
x
Bottom bracket height
342,0
341,0
341,0
341,0
y
Front center
699,0
725,0
750,0
777,0
