CUBE AMS ONE11 C:68X TM 29 2022

MTB Trail
Groupset
Shimano XT
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
11,5 kg
Front travel
120mm

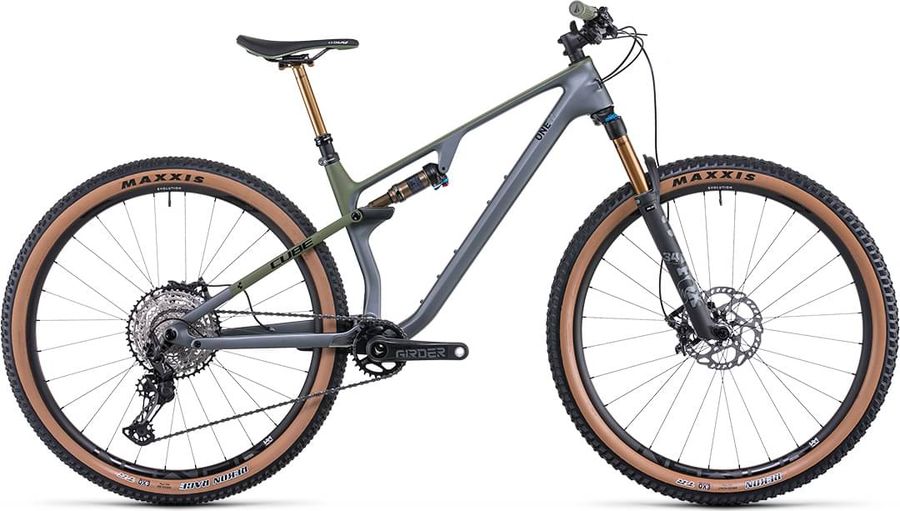

CUBE AMS ONE11 C:68X TM 29 2022

About the CUBE AMS ONE11 C:68X TM 29 2022

The CUBE AMS ONE11 C:68X TM 29 2022 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a Shimano XT drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 11,5 kg.

Features

The CUBE AMS ONE11 C:68X TM 29 2022 has 6 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
SDG Thrice
Components
Steam
Newmen Evolution SL 318.4, 31.8mm
Saddle
SDG Bel Air V3 Lux Alloy
Headset
ACROS Integrated, Top 1 1/8", Bottom 1 1/2", Fiber Inserts for 0.6° Angle Adjustment
Seatpost
Fox Transfer Factory 30.9mm, Kashima Coated, (S: 125mm, M/L/XL: 150mm)
Handlebar
Newmen Evolution 318.20, 760mm
Brakes
Shimano Deore XT BR-M8120 410 (BL-M8100) g Hydraulic disc brake 4 piston
Average weight (g)
410 (BL-M8100)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M8120
Mount type
Post-type
Oil
SHIMANO Mineral
Pad option
D03S Resin (w/o fin)
Pad option
D02S Metal (w/o fin)
Pad standard
N03A Resin (w/ fin)
Pad standard
N04C Metal (w/ fin)
Pad mount
Pad axle
Piston
4
Piston material
Ceramic
Recommended brake lever
BL-M8100
BL-T8100
Drivetrain
Crankset
Praxis Girder Carbon, Boost, 30T, sealed Enduro™ Bearings, 170mm
Shifter
Shimano XT SL-M8100-IR, Direct Attach
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Chain
Shimano CN-M6100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M6100
Pin link plate
Gray
Roller link plate
Brown
Type
HG 12-speed
Cassette
Shimano SLX CS-M7100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
1
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M7100-12
Steel gear finish
Plated
Steel gear pieces
11
Type
HYPERGLIDE+
Weights
10-45T: 513g
10-51T: 534g
Frameset
Frame
C:68X Monocoque Advanced Twin Mold Technology, FSP 4-Link, Boost 148, UDH™
Front suspension
Fox 34 Float Factory Kashima
Rear suspension
Fox Float DPS Factory Kashima
Wheels
Rims
Newmen Evolution SL A.30, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
Tires
Maxxis Rekon, EXO, Tubeless Ready, 2.4

Geometry

Size SM MD LG XL
a
Seat tube length
370,0
420,0
470,0
520,0
b
Seat tube angle
73,33º
73,36º
73,38º
73,41º
c
Top tube length
577,22
602,22
627,22
652,17
d
Head tube length
100,0
110,0
120,0
135,0
e
Head tube angle
66,03º
66,06º
66,08º
66,11º
f
Rake
44,0
44,0
44,0
44,0
g
Trail
118,0
118,0
118,0
118,0
h
Wheelbase
1145,32
1171,09
1196,87
1223,03
i
Chainstay length
448,5
448,5
448,5
448,5
j
Bottom bracket drop
32,94
33,15
33,35
33,55
k
Stack height
595,95
605,44
614,91
628,97
l
Reach
405,33
427,32
449,32
469,68
m
Standover height
769,81
768,1
773,69
768,57
x
Bottom bracket height
342,0
341,0
341,0
341,0
y
Front center
699,0
725,0
750,0
777,0
