CUBE AMS ZERO99 C:68X SL 29 2022

MTB Cross Country
Groupset
SRAM X01 Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
9,7 kg
Front travel
100mm

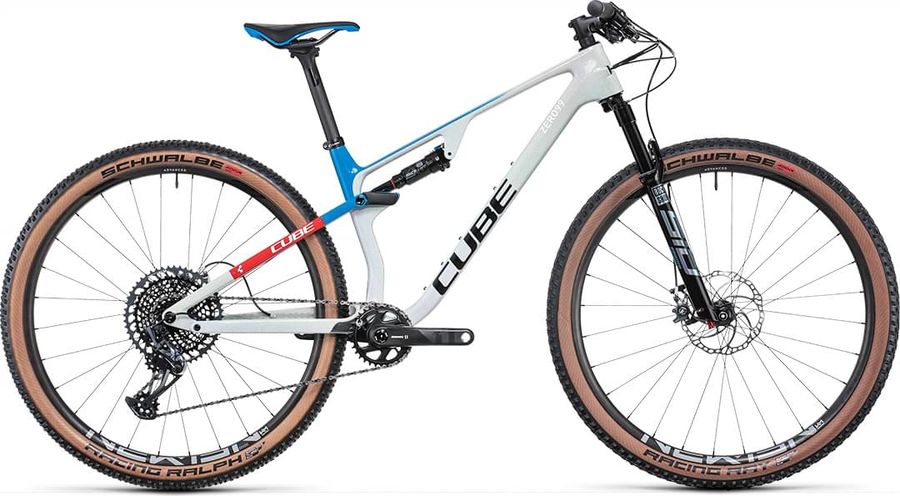

CUBE AMS ZERO99 C:68X SL 29 2022

About the CUBE AMS ZERO99 C:68X SL 29 2022

The CUBE AMS ZERO99 C:68X SL 29 2022 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include boost 110 , boost 148, and hydraulic disc brakes. The bike weighs approximately 9,7 kg.

Features

The CUBE AMS ZERO99 C:68X SL 29 2022 has 5 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
RockShox TwistLoc w/ fixed right grip
Components
Steam
Newmen Evolution SL 318.2, 31.8mm
Saddle
Natural Fit Nuance SLT Carbon
Headset
ACROS Integrated, Top 1 1/8", Bottom 1 1/2", Fiber Inserts for 0.6° Angle Adjustment
Seatpost
Newmen Advanced, Carbon, 30.9mm
Handlebar
Newmen Advanced 318.0, Carbon, 740mm
Brakes
Magura MT8
Drivetrain
Crankset
SRAM X1 Eagle™ Carbon, 32T, 175mm (170mm for size S)
Shifter
SRAM GX Eagle™ Trigger
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1295 Eagle 12s 350 g
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1295-B1
Name
XG-1295 Eagle Cassette
Speed
12s
Technology cassete
XG
Weight
350
Rear derailleur
SRAM X01 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar, Red
Max tooth
52
Model
RD-X0-1-B2
Name
X01 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
C:68X Monocoque Advanced Twin Mold Technology, FSP 4-Link, Boost 148, UDH™
Rear suspension
RockShox SIDluxe Ultimate 231 g
Body eyelet
No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
RL, RLR
Eye to eye stroke
145x27.5(TR), 145x30(TR), 145x32.5(TR), 145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x27.5, 170x30, 170x32.5, 170x35, 185x47.5(TR), 185x50(TR), 190x37.5, 190x40, 190x42.5, 190x45, 210x47.5, 210x50
Lockout force
380, 430
Model
RS-SIDL-ULT-A1
Name
SIDLuxe Ultimate
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard, Trunnion
Weight based on
RL 190x45 0 Tokens
Weight
231
Front suspension
RockShox SID SL Ultimate DebonAir 1326 g
Color
Gloss Black, Gloss Black W/Copper Decal, Gloss Black W/Rainbow Decal, Gloss Blue
Damper type
Charger Race Day
fork offset
44mm (29")
Max tire width (mm)
60
Maximum rotor size
200mm
Minimum rotor size
160mm
Model
FS-SIDS-ULT-C1
Name
SID SL Ultimate
Spring
DebonAir
Travel (mm)
100mm
Upper tube type
32mm straight wall aluminum
Weight based on
100mm travel W/Maxle Stealth
Weight
1326
Wheel size
29"
Wheels
Rims
Newmen Advanced SL X.A.30 Carbon, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
Tires
Schwalbe Racing Ray, Super Race, Addix Speedgrip, Kevlar, 2.25

Geometry

Size SM MD LG XL
a
Seat tube length
370,0
420,0
470,0
520,0
b
Seat tube angle
74,68º
74,68º
74,67º
74,67º
c
Top tube length
572,68
597,59
622,5
647,37
d
Head tube length
100,0
110,0
120,0
135,0
e
Head tube angle
67,38º
67,38º
67,38º
67,38º
f
Rake
51,0
51,0
51,0
51,0
g
Trail
101,0
101,0
101,0
101,0
h
Wheelbase
1133,91
1159,69
1185,47
1211,64
i
Chainstay length
441,0
441,0
441,0
441,0
j
Bottom bracket drop
43,39
43,37
43,35
43,34
k
Stack height
587,32
596,51
605,71
619,93
l
Reach
418,89
440,79
462,7
483,08
m
Standover height
750,0
749,25
754,86
765,3
x
Bottom bracket height
331,0
331,0
331,0
331,0
y
Front center
696,0
722,0
748,0
774,0
