CUBE AMS ZERO99 C:68X SLT 29 2022

MTB Cross Country
Groupset
SRAM XX1 Eagle AXS
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
9,3 kg
Front travel
100mm

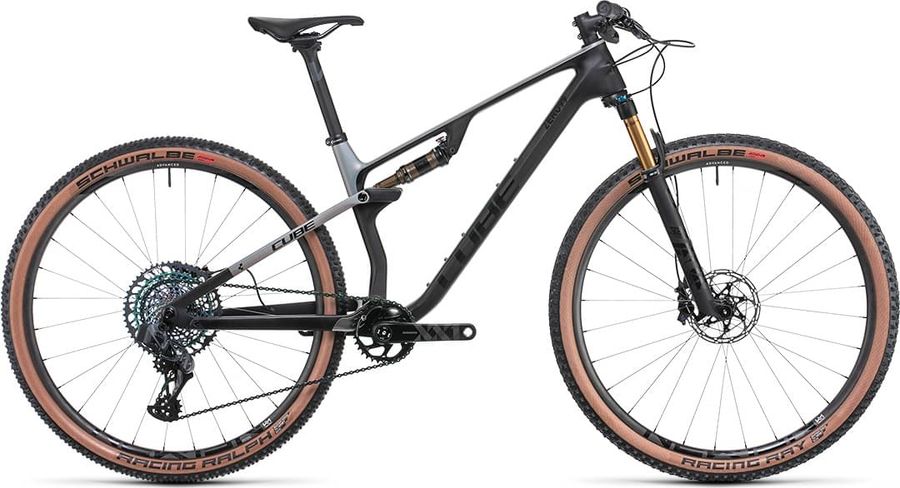

CUBE AMS ZERO99 C:68X SLT 29 2022

About the CUBE AMS ZERO99 C:68X SLT 29 2022

The CUBE AMS ZERO99 C:68X SLT 29 2022 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM XX1 Eagle AXS drivetrain of 12 gears (1x12). Its features include boost 110 , boost 148, and hydraulic disc brakes. The bike weighs approximately 9,3 kg.

Features

The CUBE AMS ZERO99 C:68X SLT 29 2022 has 6 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
trava-remota-guidao
Remote lockout More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
ACID React Pro
Components
Steam
Newmen Evolution SL 318.2, 31.8mm
Saddle
Natural Fit Nuance SLT Carbon
Headset
ACROS Integrated, Top 1 1/8", Bottom 1 1/2", Fiber Inserts for 0.6° Angle Adjustment
Seatpost
Newmen Advanced, Carbon, 30.9mm
Handlebar
Newmen Advanced SL 318.0, Carbon, 740mm
Brakes
SRAM Level Ultimate Hydraulic 317 g
Application
MTB
Blade material
Carbon
Bracket disk brake
Direct mount DIR, Flat Mount 20mm offset, Flat Mount no offset, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black Anodized, Gold
Model
DB-LVL-ULT-A1
Name
Level Ultimate
Orientation
Front, Rear
Pad type disc
Aluminum-backed organic, Steel-backed metal sintered
Weight based on
Direct Mount (Ti Bolts), 800mm hose, 160mm CLX Rotor (Ti Bolts)
Weight
317
Drivetrain
Crankset
SRAM XX1 Eagle™ DUB SL, 32T, 175mm (170mm for size S)
Shifter
SRAM Eagle AXS™ Controller
Chain
SRAM Eagle XX1 Rainbow
Cassette
SRAM XG-1299 Eagle 12s
Cog finish cassete
Copper, Gold, Rainbow
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1299-B1
Name
XG-1299 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM XX1 Eagle AXS 12s
Cage material
Carbon
Color
Black
Max tooth
52
Model
RD-XX-1E-A1
Name
XX1 Eagle AXS derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
C:68X Monocoque Advanced Twin Mold Technology, FSP 4-Link, Boost 148, UDH™
Front suspension
Fox 32 SC Float Factory Kashima
Rear suspension
Fox Float DPS Factory Kashima
Wheels
Rims
Newmen Advanced SL X.A.25 Carbon, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
Tires
Schwalbe Racing Ray, Super Race, Addix Speedgrip, Kevlar, 2.1

Geometry

Size SM MD LG XL
a
Seat tube length
370,0
420,0
470,0
520,0
b
Seat tube angle
74,68º
74,68º
74,67º
74,67º
c
Top tube length
572,68
597,59
622,5
647,37
d
Head tube length
100,0
110,0
120,0
135,0
e
Head tube angle
67,38º
67,38º
67,38º
67,38º
f
Rake
51,0
51,0
51,0
51,0
g
Trail
101,0
101,0
101,0
101,0
h
Wheelbase
1133,91
1159,69
1185,47
1211,64
i
Chainstay length
441,0
441,0
441,0
441,0
j
Bottom bracket drop
43,39
43,37
43,35
43,34
k
Stack height
587,32
596,51
605,71
619,93
l
Reach
418,89
440,79
462,7
483,08
m
Standover height
750,0
749,25
754,86
765,3
x
Bottom bracket height
331,0
331,0
331,0
331,0
y
Front center
696,0
722,0
748,0
774,0
