CUBE ANALOG 2019

MTB Cross Country
Groupset
Shimano XT
Frame material
Alloy
Wheel size
27,5" / 29"
Suspension type
Hardtail
Weight
14,1 kg
Front travel
100mm

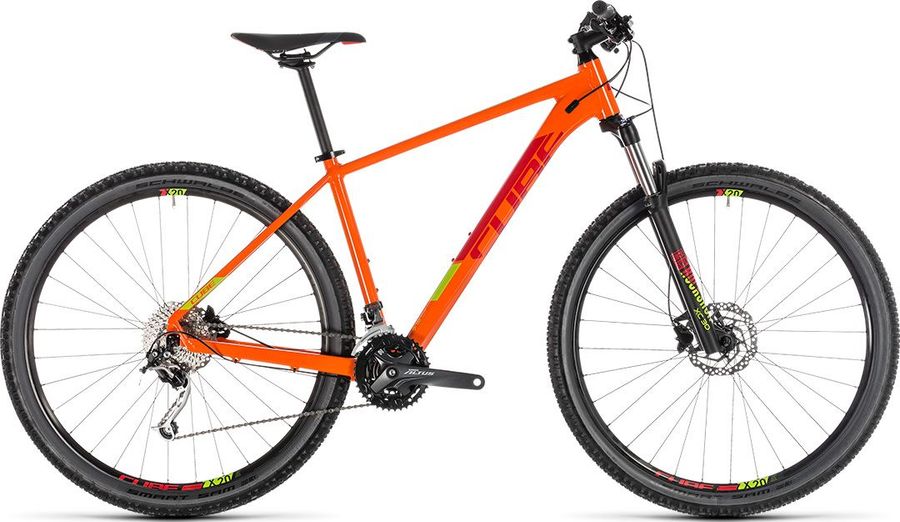

CUBE ANALOG 2019

About the CUBE ANALOG 2019

The CUBE ANALOG 2019 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 27 gears (3x9). Its features include internal routing, hydraulic disc brakes, and remote lockout. The bike weighs approximately 14,1 kg.

Features

The CUBE ANALOG 2019 has 3 features listed below.
cabeamento-interno
Internal routing More info
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info

Specifications

Acessories
Grip
CUBE Performance Grip
Pedals
CUBE PP MTB
Components
Steam
CUBE Performance Stem Pro, 31.8mm
Saddle
CUBE Active 1.1
Headset
FSA No.10, Semi-Integrated
Seatpost
CUBE Performance Post, 27.2mm
Handlebar
CUBE Rise Trail Bar, 680mm
Brakes
Shimano BR-MT200 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT200
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT201
BL-MT200
Recommended disc brake rotor
SM-RT10*
SM-RT26*
Drivetrain
Crankset
Shimano FC-M2000, 40x30x22T, 175mm
Shifter
Shimano SL-M2000, Rapidfire-Plus
Front derailleur
Shimano FD-M4000, Downswing, 31.8mm Clamp
Chain
Shimano CN-HG53 299 g
Average weight (g)
299
Chromizing treatment roller link pin
Model
CN-HG53
Pin link plate
Gray
Roller link plate
Brown
Type
HG 9-speed
Cassette
Shimano Alivio CS-HG400-9 HG
Combination names
11-28T
11-32T
11-34T
12-36T
11-36T
Compatible chain
HG 9-speed
Lock ring finish
Ni-Ni plated
Lock ring material
Steel
Model
CS-HG400-9
Steel gear finish
Ni-Ni plated
Steel gear pieces
9
Type
HG
Rear derailleur
Shimano Deore XT RD-M772
Frameset
Frame
Aluminium Lite, AMF, Internal Cable Routing, Easy Mount Kickstand Ready
Front suspension
RockShox XC30 TK Coil
Color
Diffusion Black, Gloss Black
Damper type
TurnKey
fork offset
42mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
62
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-XC30-TK-B4
Name
XC30 TK
Spring
Coil
Travel (mm)
100mm, 120mm, 80mm
Upper tube type
30mm straight wall steel
Wheel size
27.5", 29"
Wheels
Rims
CUBE ZX20, 32H, Disc
Tires
Schwalbe Smart Sam, Active, 2.25
Rear hub
Shimano FH-TX505, QR, Centerlock
Front hub
Shimano HB-TX505, QR, Centerlock

Geometry

Size 14" 16" 17" 18" 19" 21" 23"
a
Seat tube length
355,0
405,0
420,0
450,0
470,0
515,0
565,0
b
Seat tube angle
74,0º
73,5º
73,5º
73,5º
73,5º
73,5º
73,5º
c
Top tube length
551,0
567,0
581,0
591,0
601,0
621,0
641,0
d
Head tube length
106,0
109,0
109,0
129,0
120,0
130,0
145,0
e
Head tube angle
69,0º
69,0º
69,0º
69,0º
69,0º
69,0º
69,0º
f
Rake
42,0
42,0
51,0
42,0
52,0
51,0
51,0
g
Trail
91,0
91,0
89,0
91,0
88,0
89,0
89,0
h
Wheelbase
1058,0
1069,0
1111,0
1094,0
1132,0
1152,0
1174,0
i
Chainstay length
433,0
433,0
456,0
433,0
456,0
456,0
456,0
j
Bottom bracket drop
51,5
51,5
65,0
51,5
65,0
65,0
65,0
k
Stack height
601,0
604,0
629,0
623,0
639,0
648,0
663,0
l
Reach
380,0
390,0
397,0
408,0
413,0
431,0
447,0
m
Standover height
-
-
-
-
-
-
-
x
Bottom bracket height
304,0
304,0
309,0
304,0
309,0
309,0
309,0
y
Front center
630,0
641,0
663,0
666,0
684,0
704,0
726,0
