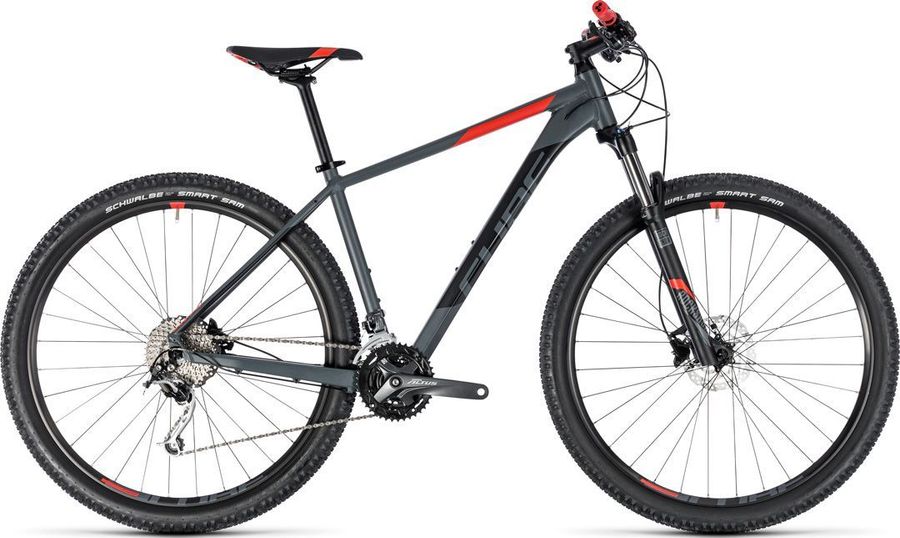

CUBE ANALOG 29 2018
Groupset
Shimano XT
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Weight
14,3 kg
Front travel
100mm
About the CUBE ANALOG 29 2018
The CUBE ANALOG 29 2018 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 27 gears (3x9). Its features include internal routing, hydraulic disc brakes, and remote lockout. The bike weighs approximately 14,3 kg.
Features
Internal routing
More info
Internal routing
Hydraulic disc brakes
More info
Hydraulic disc brakes
Remote lockout
More info
Remote lockout
Specifications
|
Grip
|
CUBE Performance Grip
|
|---|---|
|
Pedals
|
CUBE PP MTB
|
|
Steam
|
CUBE Performance Stem Pro, 31.8mm
|
|---|---|
|
Saddle
|
Selle Royal MTB
|
|
Headset
|
FSA No.10, Semi-Integrated
|
|
Seatpost
|
CUBE Performance Post, 27.2mm
|
|
Handlebar
|
CUBE Rise Trail Bar, 660mm
|
|
Brakes
|
Shimano Altus BR-M315
|
|
Crankset
|
Shimano FC-M2000, 40x30x22T, 175mm
|
|---|---|
|
Shifter
|
Shimano SL-M4000, Rapidfire-Plus
|
|
Front derailleur
|
Shimano FD-M4000, Downswing, 31.8mm Clamp
|
|
Chain
|
Shimano CN-HG53
299 g
|
|
|
|
|
Cassette
|
Shimano Alivio CS-HG400-9
HG
|
|
11-32T 11-34T 12-36T 11-36T |
|
|
Rear derailleur
|
Shimano Deore XT RD-M772
|
|
Frame
|
Aluminium Lite, AMF, Internal Cable Routing, Easy Mount Kickstand Ready
|
|---|---|
|
Front suspension
|
RockShox XC30 TK
Coil
|
|
|
|
|
Rims
|
CUBE ZX20, 32H, Disc
|
|---|---|
|
Tires
|
Schwalbe Smart Sam, Active, 2.25"
|
|
Rear hub
|
Shimano FH-TX505, QR, Centerlock
|
|
Front hub
|
Shimano HB-TX505, QR
|
Geometry
| Size | 17" | 19" | 21" | 23" |
|---|---|---|---|---|
|
a
Seat tube length
|
420,0
|
470,0
|
515,0
|
565,0
|
|
b
Seat tube angle
|
73,0º
|
73,0º
|
73,0º
|
73,0º
|
|
c
Top tube length
|
573,0
|
593,0
|
613,0
|
623,0
|
|
d
Head tube length
|
110,0
|
120,0
|
130,0
|
145,0
|
|
e
Head tube angle
|
69,5º
|
70,0º
|
70,0º
|
70,0º
|
|
f
Rake
|
51,0
|
51,0
|
51,0
|
51,0
|
|
g
Trail
|
86,0
|
82,0
|
82,0
|
82,0
|
|
h
Wheelbase
|
1093,0
|
1108,0
|
1129,0
|
1139,0
|
|
i
Chainstay length
|
453,0
|
453,0
|
453,0
|
453,0
|
|
j
Bottom bracket drop
|
60,0
|
60,0
|
60,0
|
60,0
|
|
k
Stack height
|
621,0
|
632,0
|
642,0
|
656,0
|
|
l
Reach
|
384,0
|
401,0
|
418,0
|
423,0
|
|
m
Standover height
|
-
|
-
|
-
|
-
|
|
x
Bottom bracket height
|
314,0
|
314,0
|
314,0
|
314,0
|
|
y
Front center
|
647,0
|
662,0
|
683,0
|
693,0
|
