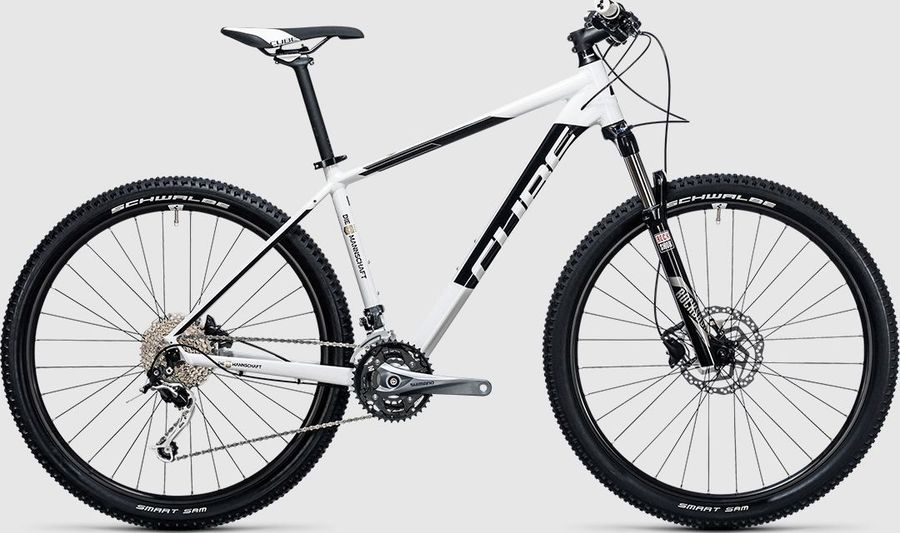

CUBE Analog "Die Mannschaft" DFB Edition 2017
Groupset
Shimano XT
Frame material
Alloy
Wheel size
27,5" / 29"
Suspension type
Hardtail
Weight
13,7 kg
Front travel
100mm
About the CUBE Analog "Die Mannschaft" DFB Edition 2017
The CUBE Analog "Die Mannschaft" DFB Edition 2017 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 27 gears (3x9). Its features include internal routing, hydraulic disc brakes, and remote lockout. The bike weighs approximately 13,7 kg.
Features
Internal routing
More info
Internal routing
Hydraulic disc brakes
More info
Hydraulic disc brakes
Remote lockout
More info
Remote lockout
Specifications
|
Grip
|
CUBE Performance Grips
|
|---|---|
|
Pedals
|
CUBE PP MTB
|
|
Steam
|
CUBE Performance Stem Pro, 31.8mm
|
|---|---|
|
Saddle
|
CUBE Active 1.1
|
|
Headset
|
FSA No.10, Semi-Integrated
|
|
Seatpost
|
CUBE Performance Post, 27.2mm
|
|
Handlebar
|
CUBE Rise Trail Bar, 680mm
|
|
Brakes
|
Shimano Altus BR-M315
|
|
Crankset
|
Shimano FC-M3000, 40x30x22T, 175mm
|
|---|---|
|
Shifter
|
Shimano SL-M4000
|
|
Front derailleur
|
Shimano FD-M4000, Downswing, 31.8mm Clamp
|
|
Cassette
|
Shimano CS-HG300
|
|
Chain
|
Shimano CN-HG53
299 g
|
|
|
|
|
Rear derailleur
|
Shimano Deore XT RD-M772
|
|
Frame
|
Aluminium Lite, AMF, Internal Cable Routing, Easy Mount Kickstand Ready
|
|---|---|
|
Front suspension
|
RockShox XC30 TK
Coil
|
|
|
|
|
Rims
|
CUBE SX20, 32H, Disc
|
|---|---|
|
Tires
|
Schwalbe Smart Sam, Active, 2.25"
|
|
Rear hub
|
Shimano FH-TX505 Disc
|
|
Front hub
|
Shimano HB-TX505 Disc
|
Geometry
| Size | 14" | 16" | 17" | 18" | 19" | 20" | 21" | 23" |
|---|---|---|---|---|---|---|---|---|
|
a
Seat tube length
|
355,0
|
405,0
|
420,0
|
450,0
|
470,0
|
490,0
|
515,0
|
565,0
|
|
b
Seat tube angle
|
73,5º
|
73,5º
|
73,0º
|
73,5º
|
73,0º
|
73,5º
|
73,0º
|
73,0º
|
|
c
Top tube length
|
533,0
|
556,0
|
576,0
|
578,0
|
596,0
|
599,0
|
616,0
|
626,0
|
|
d
Head tube length
|
105,0
|
105,0
|
110,0
|
125,0
|
120,0
|
145,0
|
130,0
|
145,0
|
|
e
Head tube angle
|
69,0º
|
69,0º
|
69,5º
|
70,0º
|
70,0º
|
70,0º
|
70,0º
|
70,0º
|
|
f
Rake
|
43,0
|
43,0
|
51,0
|
44,0
|
51,0
|
44,0
|
51,0
|
51,0
|
|
g
Trail
|
90,0
|
90,0
|
86,0
|
83,0
|
82,0
|
83,0
|
82,0
|
82,0
|
|
h
Wheelbase
|
1036,0
|
1059,0
|
1096,0
|
1072,0
|
1111,0
|
1094,0
|
1132,0
|
1142,0
|
|
i
Chainstay length
|
433,0
|
433,0
|
456,0
|
433,0
|
456,0
|
433,0
|
456,0
|
456,0
|
|
j
Bottom bracket drop
|
51,5
|
51,5
|
60,0
|
51,5
|
60,0
|
51,5
|
60,0
|
60,0
|
|
k
Stack height
|
599,0
|
599,0
|
624,0
|
622,0
|
635,0
|
641,0
|
645,0
|
659,0
|
|
l
Reach
|
358,0
|
381,0
|
387,0
|
396,0
|
404,0
|
411,0
|
421,0
|
426,0
|
|
m
Standover height
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
|
x
Bottom bracket height
|
304,0
|
304,0
|
314,0
|
304,0
|
314,0
|
304,0
|
314,0
|
314,0
|
|
y
Front center
|
608,0
|
631,0
|
647,0
|
644,0
|
662,0
|
666,0
|
683,0
|
693,0
|
