CUBE ATTENTION SL 2022

MTB Cross Country
Groupset
Shimano XT
Frame material
Alloy
Wheel size
27,5" / 29"
Suspension type
Hardtail
Weight
13,6 kg
Front travel
100mm

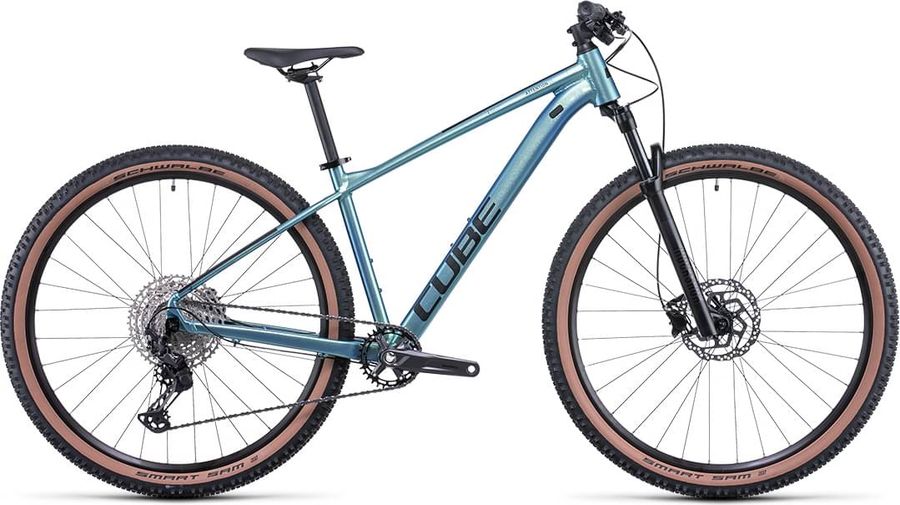

CUBE ATTENTION SL 2022

About the CUBE ATTENTION SL 2022

The CUBE ATTENTION SL 2022 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 12 gears (1x12). Its features include internal routing, hydraulic disc brakes, and tapered head tube. The bike weighs approximately 13,6 kg.

Features

The CUBE ATTENTION SL 2022 has 3 features listed below.
cabeamento-interno
Internal routing More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info

Specifications

Acessories
Grip
ACID React
Pedals
CUBE PP MTB
Components
Steam
CUBE Performance Stem SL, 31.8mm
Saddle
Natural Fit Venec Lite
Headset
CUBE FPH868, Top 1 1/8", Bottom 1 1/2", Semi-Integrated
Seatpost
CUBE Performance Post, 27.2mm
Handlebar
CUBE Rise Trail Bar, 680mm
Brakes
Shimano BR-MT200 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT200
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT201
BL-MT200
Recommended disc brake rotor
SM-RT10*
SM-RT26*
Drivetrain
Crankset
Shimano FC.MT511, 32T
Shifter
Shimano Deore SL-M6100, Rapidfire-Plus
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Chain
Shimano CN-M6100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M6100
Pin link plate
Gray
Roller link plate
Brown
Type
HG 12-speed
Cassette
Shimano Deore CS-M6100-12 HYPERGLIDE+
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M6100-12
Steel gear finish
Plated
Steel gear pieces
12
Type
HYPERGLIDE+
Frameset
Frame
Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Tapered Head Tube, Flat Mount Brake, SIC Mount, FM Kickstand Mount
Front suspension
RockShox Judy Silver TK Solo Air
Color
Diffusion Black, Gloss Black
Damper type
TurnKey
fork offset
42mm (27.5"), 51mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-JDYS-TK-A2
Name
Judy Silver TK
Spring
Solo Air
Travel (mm)
100mm, 120mm, 130mm, 80mm
Upper tube type
30mm straight wall steel
Wheel size
27.5", 29"
Wheels
Rims
CUBE ZX20, 32H, Disc
Tires
Schwalbe Smart Sam, Active, 2.25
Rear hub
Shimano FH-MT401, QR, Centerlock
Front hub
Shimano HB-M4050, QR, Centerlock

Geometry

Size 14" 16" 18" 20" 22" 24"
a
Seat tube length
340,0
370,0
420,0
470,0
515,0
560,0
b
Seat tube angle
74,0º
73,5º
73,5º
73,5º
73,5º
73,5º
c
Top tube length
546,0
566,0
586,0
606,0
626,0
646,0
d
Head tube length
108,2
111,0
111,0
121,8
141,8
156,8
e
Head tube angle
68,5º
68,5º
68,5º
68,5º
68,5º
68,5º
f
Rake
42,0
42,0
46,0
46,0
46,0
46,0
g
Trail
95,0
95,0
98,0
98,0
98,0
98,0
h
Wheelbase
1058,5
1073,1
1116,4
1137,4
1159,2
1180,6
i
Chainstay length
418,0
418,0
441,0
441,0
441,0
441,0
j
Bottom bracket drop
51,5
51,5
65,0
65,0
65,0
65,0
k
Stack height
586,0
588,6
618,3
628,4
647,0
660,9
l
Reach
375,4
389,0
400,2
417,2
431,7
447,6
m
Standover height
698,0
711,0
750,0
783,0
815,0
849,0
x
Bottom bracket height
304,0
304,0
309,0
309,0
309,0
309,0
y
Front center
646,0
660,0
683,0
704,0
726,0
747,0
