BikeWise

CUBE ELITE C:62 PRO 2022

MTB Cross Country
Groupset
Shimano XT
Frame material
Carbon
Wheel size
29"
Suspension type
Hardtail
Weight
9,5 kg
Front travel
100mm

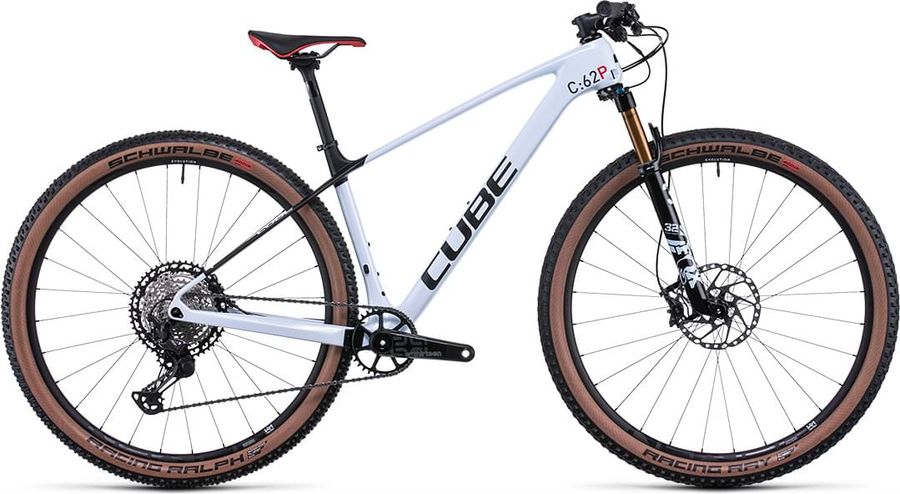

CUBE ELITE C:62 PRO 2022

About the CUBE ELITE C:62 PRO 2022

The CUBE ELITE C:62 PRO 2022 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a Shimano XT drivetrain of 12 gears (1x12). Its features include internal routing, boost 110 , and boost 148. The bike weighs approximately 9,5 kg.

Features

The CUBE ELITE C:62 PRO 2022 has 7 features listed below.
cabeamento-interno
Internal routing More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
trava-remota-guidao
Remote lockout More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
ACID React Pro
Components
Steam
Newmen Evolution SL 318.4, 31.8mm
Saddle
Natural Fit Nuance SL
Headset
Acros AzX/AiX, block lock, Top: semi 1 1/8", Bottom: 1 1/2"
Seatpost
Newmen Advanced Custom, Carbon, 27.2mm
Handlebar
Newmen Advanced 318.0, Carbon, 740mm
Brakes
Shimano Deore XT BR-M8100 392 (BL-M8100) g Hydraulic disc brake 2 piston
Average weight (g)
392 (BL-M8100)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M8100
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
J03A Resin (w/ fin)
Pad option
J04C Metal (w/ fin)
Pad standard
G03A Resin (w/o fin)
Pad standard
G04S Metal (w/o fin)
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended brake lever
BL-M8100
BL-T8100
Drivetrain
Crankset
e*thirteen XCX Race Carbon, 34T, Boost
Shifter
Shimano XT SL-M8100-IR, Direct Attach
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Chain
Shimano CN-M8100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M8100
Pin link plate
Gray
Roller link plate
Chromizing
Type
HG 12-speed
Cassette
Shimano Deore XT CS-M8100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
2
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M8100-12
Steel gear finish
Plated
Steel gear pieces
10
Type
HYPERGLIDE+
Weights
10-45T: 461g
10-51T: 470g
Frameset
Frame
C:62 Monocoque Advanced Twin Mold Technology, ARG2, Tapered Headtube, PressFit BB, Boost 12x148mm, Internal Cable Routing, Dropper Post ready
Front suspension
Fox 32 Float Performance SC
Wheels
Rims
Newmen Evolution SL X.A.25, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
Tires
Schwalbe Racing Ray, Super Race, Addix Speedgrip, Kevlar, 2.25

Geometry

Size 16" 18" 20" 22"
a
Seat tube length
370,0
420,0
470,0
515,0
b
Seat tube angle
73,8º
73,8º
73,8º
73,8º
c
Top tube length
579,0
604,0
629,0
654,0
d
Head tube length
90,0
98,0
111,0
129,0
e
Head tube angle
69,0º
69,0º
69,0º
69,0º
f
Rake
46,0
46,0
46,0
45,0
g
Trail
94,0
94,0
94,0
96,0
h
Wheelbase
1081,1
1106,6
1132,4
1158,5
i
Chainstay length
428,0
428,0
428,0
428,0
j
Bottom bracket drop
63,0
63,0
63,0
63,0
k
Stack height
606,4
613,9
626,0
642,9
l
Reach
405,7
428,4
449,6
469,5
m
Standover height
743,0
754,0
785,0
808,0
x
Bottom bracket height
311,0
311,0
311,0
311,0
y
Front center
661,0
686,0
712,0
738,0
