CUBE ELITE C:62 Race 29 2017

MTB Cross Country
Groupset
SRAM X01
Frame material
Carbon
Wheel size
29"
Suspension type
Hardtail
Weight
10,05 kg
Front travel
100mm

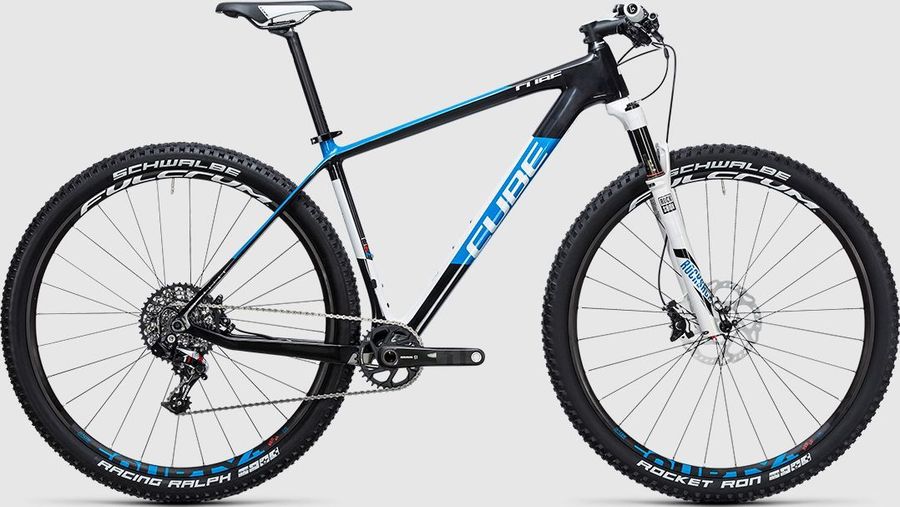

CUBE ELITE C:62 Race 29 2017

About the CUBE ELITE C:62 Race 29 2017

The CUBE ELITE C:62 Race 29 2017 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM X01 drivetrain of 11 gears (1x11). Its features include hydraulic disc brakes e tapered head tube. The bike weighs approximately 10,05 kg.

Features

The CUBE ELITE C:62 Race 29 2017 has 2 features listed below.
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info

Specifications

Acessories
Grip
CUBE SCR
Components
Steam
CUBE Performance Stem Pro, 31.8mm
Saddle
Selle Italia SC1
Headset
FSA Orbit I-t, Integrated, Top 1 1/8", Bottom 1 1/2"
Seatpost
CUBE Prolight, 27.2mm
Handlebar
CUBE Flat Race Bar Pro, 720mm
Brakes
Shimano Deore XT BR-M8000 403 (BL-M8000) g Hydraulic disc brake 2 piston
Average weight (g)
403 (BL-M8000)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SB
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
Model
BR-M8000
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
G04S Metal
Pad option
J04C Metal
Pad standard
G02A Resin
G03A Resin
Pad standard
J02A Resin
J03A Resin
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended brake lever
BL-M8000
BL-T8000
Recommended disc brake rotor
RT-MT800
SM-RT86
Drivetrain
Chain
SRAM 11-Speed
Crankset
SRAM X1 Carbon, 34T,175mm
Shifter
SRAM X1 Trigger
Rear derailleur
SRAM X01 11s 250 g
Cable pull ratio
X-actuation
Cage
Long, n/a
Cage material
Aluminum, Carbon
Color
Black, Blue, Green, Red
Max tooth
42
Model
RD-X0-1-A2
Name
X01® X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
11s
Weight
250
Cassette
SRAM XG-1180 MINI CLUSTER Cassette 11s
Cog finish cassete
Black
Cog sizes
10-42t:10,12,14,16,18,21,24,28,32,36,42
Gearing
10-42t
Model
CS-XG-1180-A1
Name
XG-1180 MINI CLUSTER Cassette
Speed
11s
Technology cassete
XG
Frameset
Frame
C:62 Monocoque Advanced Twin Mold Technology, ARG2, Tapered Headtube, PressFit BB, X12, Integrated Cable Routing
Front suspension
RockShox Reba RL Solo Air 1620 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
n/a, RL
fork offset
40mm (26"), 42mm (27.5"), 46mm (29"), 51mm (29")
Maximum rotor size
200mm
Minimum rotor size
160mm
Model
FS-REBA-RL-A6
Name
Reba RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 80mm
Upper tube type
32mm straight wall aluminum
Weight based on
15x100 Maxle Stealth, Tapered steerer, 120mm travel
Weight
1620
Wheel size
26", 27.5", 27.5" B, 29", 29" B/27.5"+
Wheels
Rims
Fulcrum Red 44, 28/28 Spokes, 15QR/X12
Tires
Schwalbe Rocket Ron, Kevlar, 2.25, Lite Skin

Geometry

Size 15" 17" 19" 21" 23"
a
Seat tube length
370,0
420,0
470,0
515,0
565,0
b
Seat tube angle
73,0º
73,0º
73,0º
73,0º
73,0º
c
Top tube length
579,0
599,0
622,0
641,0
652,0
d
Head tube length
95,0
100,0
110,0
120,0
135,0
e
Head tube angle
70,0º
70,0º
70,5º
70,5º
70,5º
f
Rake
52,0
51,0
51,0
51,0
50,0
g
Trail
81,0
82,0
79,0
79,0
80,0
h
Wheelbase
1077,0
1097,0
1115,0
1134,0
1145,0
i
Chainstay length
439,0
439,0
439,0
439,0
439,0
j
Bottom bracket drop
65,0
65,0
65,0
65,0
65,0
k
Stack height
613,0
617,0
629,0
638,0
652,0
l
Reach
394,0
413,0
432,0
448,0
455,0
m
Standover height
-
-
-
-
-
x
Bottom bracket height
309,0
309,0
309,0
309,0
309,0
y
Front center
646,0
666,0
684,0
703,0
714,0
