CUBE ELITE C:68 SL 29 2017

MTB Cross Country
Groupset
SRAM XX1
Wheel size
29"
Suspension type
Hardtail
Weight
9,15 kg
Front travel
100mm
CUBE ELITE C:68 SL 29 2017

About the CUBE ELITE C:68 SL 29 2017

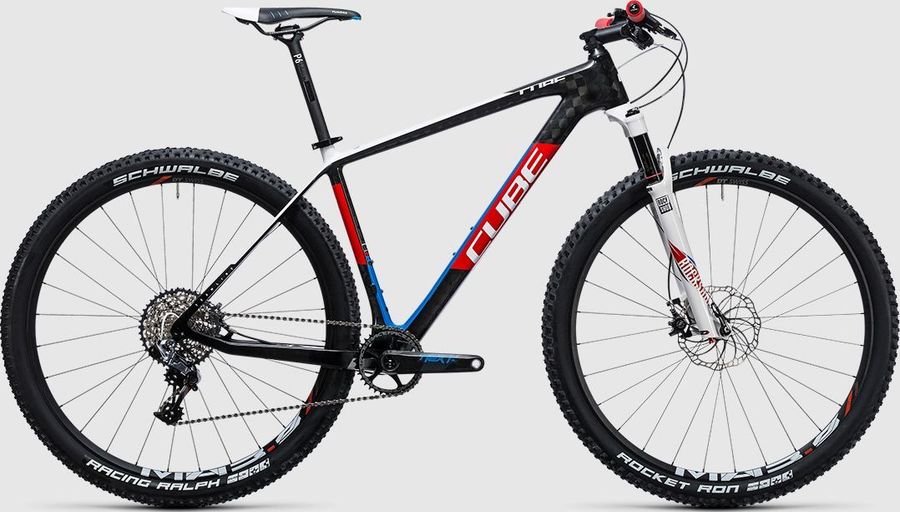

The CUBE ELITE C:68 SL 29 2017 is a Hardtail Cross Country Mountain Bike. Equipped with a SRAM XX1 drivetrain of 11 gears (1x11). Its features include hydraulic disc brakes, tapered head tube, and tubeless ready. The bike weighs approximately 9,15 kg.

Features

The CUBE ELITE C:68 SL 29 2017 has 3 features listed below.
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
CUBE SCR
Components
Steam
Syntace F109, 31.8mm
Saddle
Fi`zi:k Tundra M5
Headset
FSA Orbit I-t, Integrated, Top 1 1/8", Bottom 1 1/2"
Seatpost
Syntace P6 Carbon Raceflex, 27.2mm
Handlebar
Syntace Vector Carbon High10, 760mm
Brakes
Magura MT8
Drivetrain
Crankset
Race Face Next SL Carbon, 34T, 175mm, Oversized Aluminum Axle
Shifter
SRAM XX1 Trigger
Rear derailleur
SRAM XX1 11s 245 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Carbon
Color
Black, Blue, Green, Red
Max tooth
42
Model
RD-XX-1-A2
Name
XX1 X-HORIZON™ Rear Derailleur
Pulley bearings material
Ceramic
Speed
11s
Weight
245
Cassette
SRAM XG-1199 11s 268 g
Cog finish cassete
Silver
Cog sizes
10-42t:10,12,14,16,18,21,24,28,32,36,42
Gearing
10-42t
11-42t
Model
CS-XG-1199-A1
Name
XG-1199 X-DOME Cassette
Speed
11s
Technology cassete
XG
Weight
268
Chain
KMC X11
Frameset
Frame
C:68 Monocoque Advanced Twin Mold Technology, ARG2, Tapered Headtube, PressFit BB, X12, Integrated Cable Routing
Front suspension
RockShox SID RL Solo Air
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
Charger 2
fork offset
42mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
62, 81
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-SID-RL-B2
Name
SID RL
Spring
Solo Air
Travel (mm)
100mm
Upper tube type
32mm straight wall aluminum
Wheel size
27.5", 27.5" B, 29", 29" B
Wheels
Rims
DT CSW MA 3.9 Straightpull Wheelset, 28/32 Spokes, 15mm / X12, Tubeless Ready, DT Swiss Pro Head® Reinforcement System, Squorx® Alloy Nipples
Tires
Schwalbe Rocket Ron, Kevlar, 2.25, Lite Skin

Geometry

Size 15" 17" 19" 21" 23"
a
Seat tube length
370,0
420,0
470,0
515,0
565,0
b
Seat tube angle
73,0º
73,0º
73,0º
73,0º
73,0º
c
Top tube length
579,0
599,0
622,0
641,0
652,0
d
Head tube length
95,0
100,0
110,0
120,0
135,0
e
Head tube angle
70,0º
70,0º
70,5º
70,5º
70,5º
f
Rake
52,0
51,0
51,0
51,0
50,0
g
Trail
81,0
82,0
79,0
79,0
80,0
h
Wheelbase
1077,0
1097,0
1115,0
1134,0
1145,0
i
Chainstay length
439,0
439,0
439,0
439,0
439,0
j
Bottom bracket drop
65,0
65,0
65,0
65,0
65,0
k
Stack height
613,0
617,0
629,0
638,0
652,0
l
Reach
394,0
413,0
432,0
448,0
455,0
m
Standover height
-
-
-
-
-
x
Bottom bracket height
309,0
309,0
309,0
309,0
309,0
y
Front center
646,0
666,0
684,0
703,0
714,0
