CUBE ELITE C:68 SLT 2018

MTB Cross Country
Groupset
Shimano XTR Di2
Frame material
Carbon
Wheel size
29"
Suspension type
Hardtail
Weight
8,9 kg
Front travel
100mm

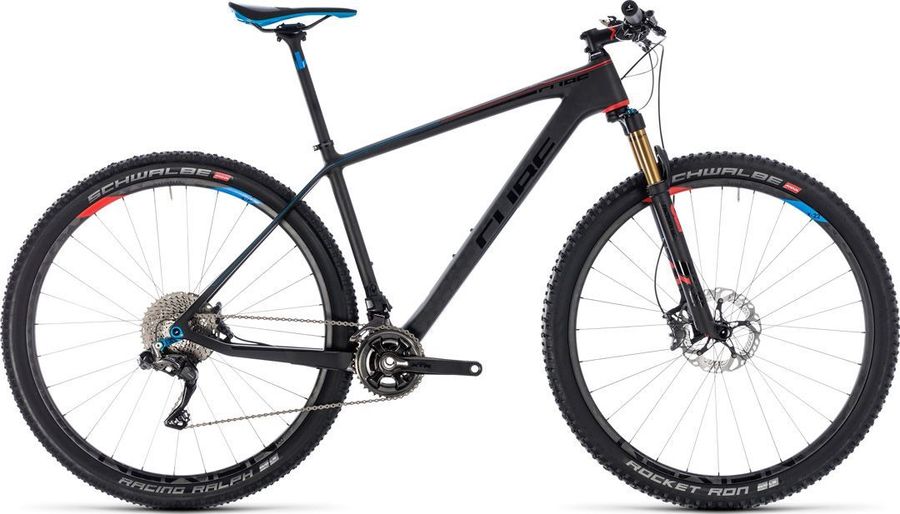

CUBE ELITE C:68 SLT 2018

About the CUBE ELITE C:68 SLT 2018

The CUBE ELITE C:68 SLT 2018 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a Shimano XTR Di2 drivetrain of 22 gears (2x11). Its features include boost 110 , hydraulic disc brakes, and tapered head tube. The bike weighs approximately 8,9 kg.

Features

The CUBE ELITE C:68 SLT 2018 has 5 features listed below.
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
trava-remota-guidao
Remote lockout More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
CUBE SCR
Components
Steam
Newmen Evolution SL 318.2, 31.8mm
Saddle
CUBE Race SL Carbon 145
Headset
FSA Orbit I-t, Integrated, Top 1 1/8", Bottom 1 1/2"
Seatpost
Newmen Advanced SL Carbon, 31.6mm
Handlebar
Newmen Advanced SL 318.0 Carbon, 740mm
Brakes
Shimano XTR BR-M9000 316.1 g Hydraulic disc brake 2 piston
Average weight (g)
316.1
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Magnesium
Caliper fixing bolt anti loosen method
Wiring
Caliper fixing bolt material
Ti
Caliper fixing bolt tool size
** 4 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M9000
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
J02A Resin
J03A Resin
Pad option
J04C Metal
Pad standard
G02A Resin
G03A Resin
Pad standard
G04Ti Metal
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended disc brake rotor
SM-RT99
* SM-RT99-A
Drivetrain
Crankset
Shimano XTR FC-M9020, 36x26T
Shifter
Shimano XTR Di2, SW-M9050
Front derailleur
Shimano XTR Di2 FD-M9070, 2x11-Speed
Rear derailleur
Shimano XTR RD-M9050 Di2
Chain
Shimano CN-HG901 247 g
Average weight (g)
247
Chromizing treatment roller link pin
Model
CN-HG901-11
Pin link plate
SIL-TEC
Roller
SIL-TEC
Roller link plate
SIL-TEC
Type
HG-X11
Cassette
Shimano XTR CS-M9001 11s HG
Aluminum gear pieces
6
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
2
Carbon spider arm pieces
2
Combination names
11-40T
Combination
11-13-15-17-19*-21*-24*-27*-31*-35*-40**
Compatible chain
HG-X11
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M9001
Speeds
11
Steel gear finish
Shot-Ni
Steel gear pieces
4
Titanium gear finish
Shot
Titanium gear pieces
1
Type
HG
Frameset
Frame
C:68 Monocoque Advanced Twin Mold Technology, ARG2, Tapered Headtube, PressFit BB, 12x142mm, Integrated Cable Routing
Front suspension
Fox 32 SC Float Factory Kashima
Wheels
Rims
Newmen Advanced SL X.22 Carbon, 28/28 Spokes, 15x110mm / 12x142mm, Tubeless Ready
Tires
Schwalbe Rocket Ron, Addix Speed, Kevlar, 2.25, LiteSkin

Geometry

Size 15" 17" 19" 21" 23"
a
Seat tube length
370,0
420,0
470,0
515,0
565,0
b
Seat tube angle
73,0º
73,0º
73,0º
73,0º
73,0º
c
Top tube length
579,0
599,0
622,0
641,0
652,0
d
Head tube length
95,0
100,0
110,0
120,0
135,0
e
Head tube angle
70,0º
70,0º
70,5º
70,5º
70,5º
f
Rake
51,0
51,0
51,0
51,0
51,0
g
Trail
82,0
82,0
79,0
79,0
79,0
h
Wheelbase
1077,0
1097,0
1115,0
1134,0
1145,0
i
Chainstay length
439,0
439,0
439,0
439,0
439,0
j
Bottom bracket drop
65,0
65,0
65,0
65,0
65,0
k
Stack height
612,5
617,3
628,9
638,3
652,4
l
Reach
394,3
412,8
432,1
448,1
454,5
m
Standover height
-
-
-
-
-
x
Bottom bracket height
309,0
309,0
309,0
309,0
309,0
y
Front center
646,0
666,0
684,0
703,0
714,0
