BikeWise

CUBE ELITE C:68X RACE 2020

MTB Cross Country
Groupset
SRAM X01 Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Hardtail
Weight
9,3 kg
Front travel
100mm

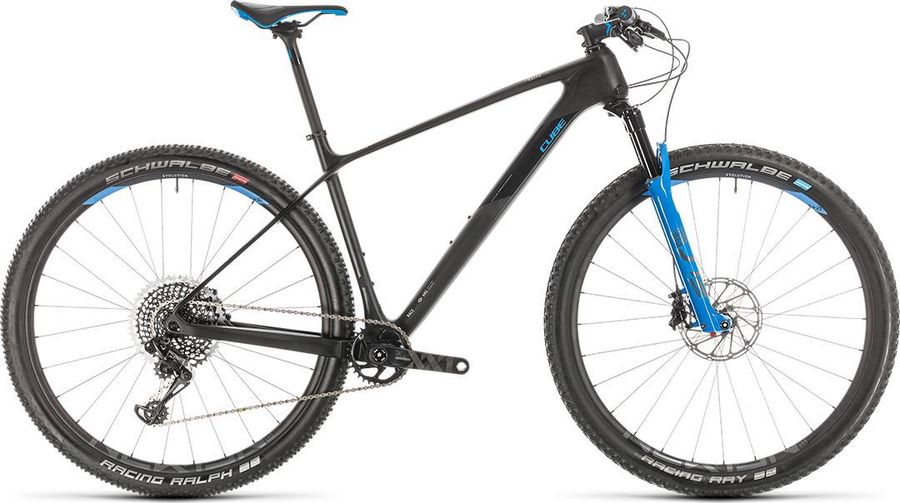

CUBE ELITE C:68X RACE 2020

About the CUBE ELITE C:68X RACE 2020

The CUBE ELITE C:68X RACE 2020 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include hydraulic disc brakes. The bike weighs approximately 9,3 kg.

Features

The CUBE ELITE C:68X RACE 2020 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
CUBE Race SL Grip 29.5mm, 1-Clamp
Components
Steam
Newmen Evolution SL 318.4, 31.8mm
Saddle
Natural Fit Nuance SLT Carbon
Headset
Acros AzX/AiX, block lock, Top: semi 1 1/8", Bottom: 1 1/2"
Seatpost
Newmen Advanced Custom, Carbon, 27.2mm
Handlebar
Newmen Advanced 318.0, Carbon, 740mm
Brakes
SRAM Level Ultimate Hydraulic 317 g
Application
MTB
Blade material
Carbon
Bracket disk brake
Direct mount DIR, Flat Mount 20mm offset, Flat Mount no offset, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black Anodized, Gold
Model
DB-LVL-ULT-A1
Name
Level Ultimate
Orientation
Front, Rear
Pad type disc
Aluminum-backed organic, Steel-backed metal sintered
Weight based on
Direct Mount (Ti Bolts), 800mm hose, 160mm CLX Rotor (Ti Bolts)
Weight
317
Drivetrain
Crankset
SRAM XX1 Eagle™, 34T
Shifter
SRAM X01 Eagle™ Trigger
Chain
SRAM X01 Eagle 239 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Silver
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Chrome Plated
Model
CN-EAGL-X01-A1
Name
X01 Eagle Chain
Outer link finish
Nickel
Pin variant
Hollow Pin
Weight based on
114 links
Weight
239
Cassette
SRAM XG-1295 Eagle 12s 350 g
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1295-B1
Name
XG-1295 Eagle Cassette
Speed
12s
Technology cassete
XG
Weight
350
Rear derailleur
SRAM X01 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar, Red
Max tooth
52
Model
RD-X0-1-B2
Name
X01 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
C:68X, Carbon Technology
Front suspension
RockShox SID Ultimate DebonAir 1582 g
Color
Gloss Black, Gloss Blue
Damper type
Charger 2 RLC
fork offset
42mm (27.5"), 42mm (29"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-SID-ULT-B4
Name
SID Ultimate
Spring
DebonAir
Travel (mm)
100mm, 120mm
Upper tube type
32mm straight wall aluminum
Weight based on
27.5" BOOST, 100mm, Maxle Stealth
Weight
1582
Wheel size
27.5", 29"
Wheels
Rims
Newmen Evolution SL X.A.25
Tires
Schwalbe Racing Ray, Addix Speedgrip, Kevlar, 2.25, LiteSkin

Geometry

Size 16" 18" 20" 22"
a
Seat tube length
370,0
420,0
470,0
515,0
b
Seat tube angle
73,8º
73,8º
73,8º
73,8º
c
Top tube length
579,0
604,0
629,0
654,0
d
Head tube length
90,0
98,0
111,0
129,0
e
Head tube angle
69,0º
69,0º
69,0º
69,0º
f
Rake
46,0
46,0
45,0
46,0
g
Trail
94,0
94,0
96,0
94,0
h
Wheelbase
1081,0
1107,0
1132,0
1159,0
i
Chainstay length
428,0
428,0
428,0
428,0
j
Bottom bracket drop
63,0
63,0
63,0
63,0
k
Stack height
606,0
614,0
626,0
643,0
l
Reach
406,0
428,0
450,0
469,0
m
Standover height
743,0
754,0
785,0
808,0
x
Bottom bracket height
311,0
311,0
311,0
311,0
y
Front center
661,0
687,0
712,0
738,0
