CUBE ELITE C:68X SL 2020

MTB Cross Country
Groupset
Shimano XTR
Frame material
Carbon
Wheel size
29"
Suspension type
Hardtail
Weight
8,7 kg
Front travel
100mm
CUBE ELITE C:68X SL 2020

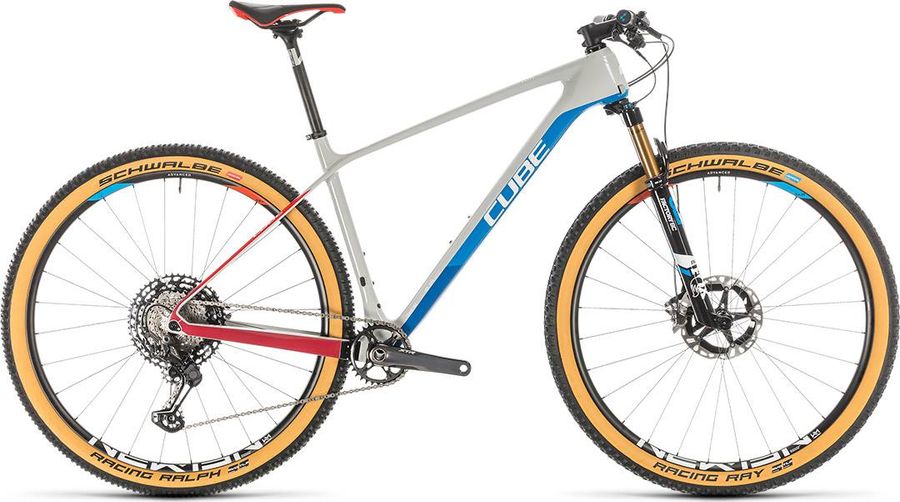

About the CUBE ELITE C:68X SL 2020

The CUBE ELITE C:68X SL 2020 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a Shimano XTR drivetrain of 12 gears (1x12). Its features include hydraulic disc brakes. The bike weighs approximately 8,7 kg.

Features

The CUBE ELITE C:68X SL 2020 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
CUBE Race SL Grip 29.5mm, 1-Clamp
Components
Steam
Newmen Evolution SL 318.2, 31.8mm
Saddle
Natural Fit Nuance SLT
Headset
Acros AzX/AiX, block lock, Top: semi 1 1/8", Bottom: 1 1/2"
Seatpost
Newmen Advanced Custom, Carbon, 27.2mm
Handlebar
Newmen Advanced SL 318.0, Carbon, 740mm
Brakes
Shimano XTR BR-M9100 312 (BL-M9100) g Hydraulic disc brake 2 piston
Average weight (g)
312 (BL-M9100)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Anodizing
Caliper material
Aluminum
caliper.mono_body
Caliper fixing bolt anti loosen method
Wiring
Caliper fixing bolt material
Ti
Caliper fixing bolt tool size
** 4 mm
Primary color
Series color
Hose joint
Straight
J-Kit spec for OEM
Model
BR-M9100
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
K03Ti Resin pad w/o fin (w/ titanium back plate)
Pad standard
K04Ti Metal pad w/o fin (w/ titanium back plate)
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Drivetrain
Crankset
Shimano XTR, 32T
Shifter
Shimano XTR SL-M9100-I, Direct Attach
Chain
Shimano CN-M9100 242 g
Average weight (g)
242
Chromizing treatment roller link pin
Model
CN-M9100
Pin link plate
SIL-TEC
Roller
SIL-TEC
Roller link plate
Chromizing
Type
HG 12-speed
Cassette
Shimano XTR CS-M9100-12 12s HYPERGLIDE+
Aluminum gear finish
Painted
Aluminum gear pieces
3
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Combination
10-12-14-16-18-21-24-28-32-36-40-45
10-12-14-16-18-21-24-28-33-39-45-51
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Micro spline
Model
CS-M9100-12
Speeds
12
Steel gear finish
Plated
Steel gear pieces
4
Titanium gear finish
Shot
Titanium gear pieces
5
Type
HYPERGLIDE+
Weights
10-45T: 357g
10-51T: 367g
Rear derailleur
Shimano XTR RD-M9100-SGS 240 g SGS 12s
Average weight (g)
240
B axle finish
Anodized
B axle hollow
B axle material
Aluminum
Bracket body finish
Anodized
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M9100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Frameset
Frame
C:68X, Carbon Technology
Front suspension
Fox 32 Float Factory
Wheels
Rims
Newmen Advanced SL X.A.25 Carbon
Tires
Schwalbe Racing Ray, Addix Speedgrip, Kevlar, 2.25

Geometry

Size 16" 18" 20" 22"
a
Seat tube length
370,0
420,0
470,0
515,0
b
Seat tube angle
73,8º
73,8º
73,8º
73,8º
c
Top tube length
579,0
604,0
629,0
654,0
d
Head tube length
90,0
98,0
111,0
129,0
e
Head tube angle
69,0º
69,0º
69,0º
69,0º
f
Rake
46,0
46,0
45,0
46,0
g
Trail
94,0
94,0
96,0
94,0
h
Wheelbase
1081,0
1107,0
1132,0
1159,0
i
Chainstay length
428,0
428,0
428,0
428,0
j
Bottom bracket drop
63,0
63,0
63,0
63,0
k
Stack height
606,0
614,0
626,0
643,0
l
Reach
406,0
428,0
450,0
469,0
m
Standover height
743,0
754,0
785,0
808,0
x
Bottom bracket height
311,0
311,0
311,0
311,0
y
Front center
661,0
687,0
712,0
738,0
