BikeWise

CUBE ELITE C:68X SL 2022

MTB Cross Country
Groupset
Shimano XTR
Frame material
Carbon
Wheel size
29"
Suspension type
Hardtail
Weight
8,7 kg
Front travel
100mm

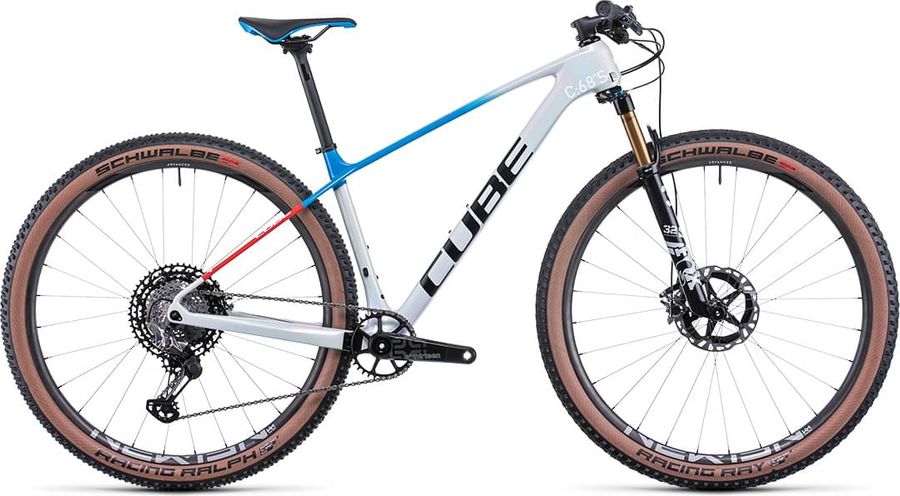

CUBE ELITE C:68X SL 2022

About the CUBE ELITE C:68X SL 2022

The CUBE ELITE C:68X SL 2022 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a Shimano XTR drivetrain of 12 gears (1x12). Its features include internal routing, boost 110 , and boost 148. The bike weighs approximately 8,7 kg.

Features

The CUBE ELITE C:68X SL 2022 has 7 features listed below.
cabeamento-interno
Internal routing More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
trava-remota-guidao
Remote lockout More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
ACID React Pro
Components
Steam
Newmen Evolution SL 318.2, 31.8mm
Saddle
Natural Fit Nuance SLT Carbon
Headset
Acros AzX/AiX, block lock, Top: semi 1 1/8", Bottom: 1 1/2"
Seatpost
Newmen Advanced Custom, Carbon, 27.2mm
Handlebar
Newmen Advanced SL 318.0, Carbon, 740mm
Brakes
Shimano XTR BR-M9100 312 (BL-M9100) g Hydraulic disc brake 2 piston
Average weight (g)
312 (BL-M9100)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Anodizing
Caliper material
Aluminum
caliper.mono_body
Caliper fixing bolt anti loosen method
Wiring
Caliper fixing bolt material
Ti
Caliper fixing bolt tool size
** 4 mm
Primary color
Series color
Hose joint
Straight
J-Kit spec for OEM
Model
BR-M9100
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
K03Ti Resin pad w/o fin (w/ titanium back plate)
Pad standard
K04Ti Metal pad w/o fin (w/ titanium back plate)
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Drivetrain
Crankset
e*thirteen XCX Race Carbon, 34T, Boost
Shifter
Shimano XTR SL-M9100-I, Direct Attach
Chain
Shimano CN-M9100 242 g
Average weight (g)
242
Chromizing treatment roller link pin
Model
CN-M9100
Pin link plate
SIL-TEC
Roller
SIL-TEC
Roller link plate
Chromizing
Type
HG 12-speed
Cassette
Shimano XTR CS-M9100-12 12s HYPERGLIDE+
Aluminum gear finish
Painted
Aluminum gear pieces
3
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Combination
10-12-14-16-18-21-24-28-32-36-40-45
10-12-14-16-18-21-24-28-33-39-45-51
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Micro spline
Model
CS-M9100-12
Speeds
12
Steel gear finish
Plated
Steel gear pieces
4
Titanium gear finish
Shot
Titanium gear pieces
5
Type
HYPERGLIDE+
Weights
10-45T: 357g
10-51T: 367g
Rear derailleur
Shimano XTR RD-M9100-SGS 240 g SGS 12s
Average weight (g)
240
B axle finish
Anodized
B axle hollow
B axle material
Aluminum
Bracket body finish
Anodized
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M9100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Frameset
Frame
C:68X Monocoque Advanced Twin Mold Technology, ARG2, Tapered Headtube, PressFit BB, Boost 12x148mm, Internal Cable Routing
Front suspension
Fox 32 SC Float Factory Kashima
Wheels
Rims
Newmen Advanced SL X.A.30 Carbon, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
Tires
Schwalbe Racing Ray, Super Race, Addix Speedgrip, Kevlar, 2.25

Geometry

Size 16" 18" 20" 22"
a
Seat tube length
370,0
420,0
470,0
515,0
b
Seat tube angle
73,8º
73,8º
73,8º
73,8º
c
Top tube length
579,0
604,0
629,0
654,0
d
Head tube length
90,0
98,0
111,0
129,0
e
Head tube angle
69,0º
69,0º
69,0º
69,0º
f
Rake
46,0
46,0
46,0
45,0
g
Trail
94,0
94,0
94,0
96,0
h
Wheelbase
1081,1
1106,6
1132,4
1158,5
i
Chainstay length
428,0
428,0
428,0
428,0
j
Bottom bracket drop
63,0
63,0
63,0
63,0
k
Stack height
606,4
613,9
626,0
642,9
l
Reach
405,7
428,4
449,6
469,5
m
Standover height
743,0
754,0
785,0
808,0
x
Bottom bracket height
311,0
311,0
311,0
311,0
y
Front center
661,0
686,0
712,0
738,0
