CUBE ELITE C:68X SLT 2021
Groupset
SRAM XX1 Eagle AXS
Frame material
Carbon
Wheel size
29"
Suspension type
Hardtail
Weight
8,6 kg
Front travel
100mm

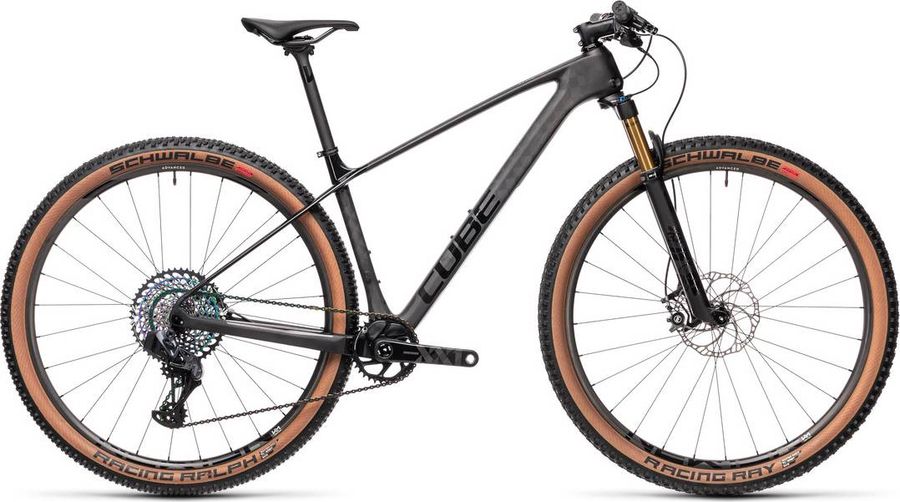

About the CUBE ELITE C:68X SLT 2021
The CUBE ELITE C:68X SLT 2021 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM XX1 Eagle AXS drivetrain of 12 gears (1x12). Its features include hydraulic disc brakes. The bike weighs approximately 8,6 kg.
Features
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Grip
|
CUBE Race SL Grip 29.5mm, 1-Clamp
|
|---|
|
Steam
|
Newmen Evolution SL 318.2, 31.8mm
|
|---|---|
|
Saddle
|
Natural Fit Nuance SLT Carbon
|
|
Headset
|
Acros AzX/AiX, block lock, Top: semi 1 1/8", Bottom: 1 1/2"
|
|
Seatpost
|
Newmen Advanced Custom, Carbon, 27.2mm
|
|
Handlebar
|
Newmen Advanced SL 318.0, Carbon, 740mm
|
|
Brakes
|
Magura MT8
|
|
Crankset
|
SRAM XX1 Eagle™, 34T
|
|---|---|
|
Shifter
|
SRAM Eagle AXS™ Controller
|
|
Chain
|
SRAM Eagle XX1 Rainbow
|
|
Cassette
|
SRAM XG-1299 Eagle
12s
|
|
|
|
|
Rear derailleur
|
SRAM XX1 Eagle AXS
12s
|
|
|
|
|
Frame
|
C:68X, Carbon Technology
|
|---|---|
|
Front suspension
|
Fox 32 Float Factory
|
|
Rims
|
Newmen Advanced SL X.A.25 Carbon
|
|---|---|
|
Tires
|
Schwalbe Racing Ray, Super Race, Addix Speedgrip, Kevlar, 2.25
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
370,0
|
420,0
|
470,0
|
515,0
|
|
b
Seat tube angle
|
73,8º
|
73,8º
|
73,8º
|
73,8º
|
|
c
Top tube length
|
579,0
|
604,0
|
629,0
|
654,0
|
|
d
Head tube length
|
90,0
|
98,0
|
111,0
|
129,0
|
|
e
Head tube angle
|
69,0º
|
69,0º
|
69,0º
|
69,0º
|
|
f
Rake
|
46,0
|
46,0
|
45,0
|
46,0
|
|
g
Trail
|
94,0
|
94,0
|
96,0
|
94,0
|
|
h
Wheelbase
|
1081,0
|
1107,0
|
1132,0
|
1159,0
|
|
i
Chainstay length
|
428,0
|
428,0
|
428,0
|
428,0
|
|
j
Bottom bracket drop
|
63,0
|
63,0
|
63,0
|
63,0
|
|
k
Stack height
|
606,0
|
614,0
|
626,0
|
643,0
|
|
l
Reach
|
406,0
|
428,0
|
450,0
|
469,0
|
|
m
Standover height
|
743,0
|
754,0
|
785,0
|
808,0
|
|
x
Bottom bracket height
|
311,0
|
311,0
|
311,0
|
311,0
|
|
y
Front center
|
661,0
|
687,0
|
712,0
|
738,0
|
