CUBE ELITE HYBRID C:62 Race 500 29 2019

E-Bike

MTB Cross Country

Groupset

Shimano XT

Frame material

Carbon

Wheel size

29"

Suspension type

Hardtail

Weight

20,3 kg

Front travel

100mm

About the CUBE ELITE HYBRID C:62 Race 500 29 2019

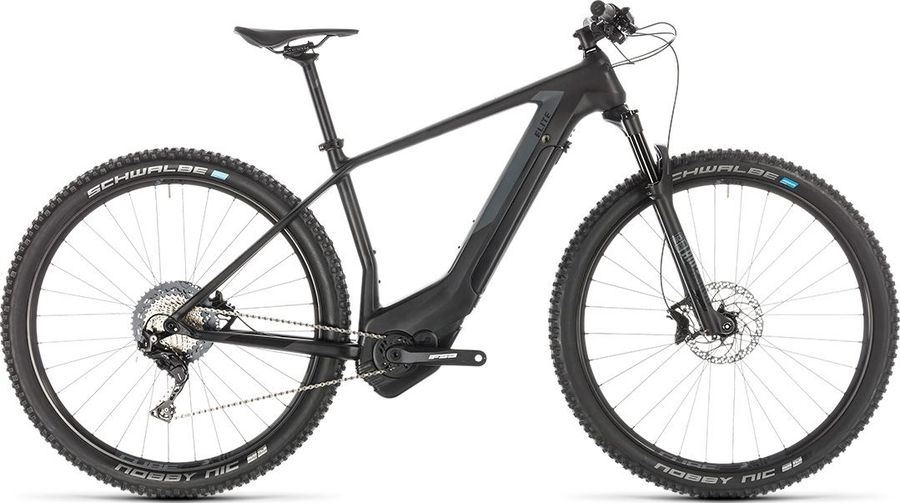

The CUBE ELITE HYBRID C:62 Race 500 29 2019 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a Shimano XT drivetrain of 11 gears (1x11). Its features include boost 110 , boost 148, and hydraulic disc brakes. The bike weighs approximately 20,3 kg.

Features

The CUBE ELITE HYBRID C:62 Race 500 29 2019 has 5 features listed below.

Boost 110 More info

Boost 148 More info

Hydraulic disc brakes More info

Tapered head tube More info

Tubeless ready More info

Specifications

Acessories
Grip	CUBE Race Grip 31mm, 1-Clamp
Pedals	CUBE PP MTB
Remote	Bosch Purion

Components
Steam	Newmen Evolution 318.4, 31.8mm
Saddle	Natural Fit Active Race
Battery	Bosch PowerTube 500
Charger	Bosch 2A
Headset	FSA Orbit I-t, Integrated, Top 1 1/8", Bottom 1 1/2"
Seatpost	Newmen Evolution, 30.9mm
Handlebar	Newmen Evolution 318.10, 720mm
Brakes	Shimano BR-MT500 Hydraulic disc brake 2 piston
Brake hose color kit Black Brake hose kit SM-BH59-JK-SS Brake type Hydraulic disc brake Caliper finish Painted Caliper material Aluminum Caliper fixing bolt anti loosen method Snap ring Caliper fixing bolt material Steel Caliper fixing bolt tool size 5 mm Primary color Black Hose joint Straight J-Kit spec for OEM Model BR-MT500 Mount type Post-type Oil SHIMANO Mineral One way bleeding Pad standard B03S Resin Pad mount Split pin (stainless steel) Piston 2 Piston material Resin Recommended disc brake rotor SM-RT54* SM-RT56*

Drivetrain
Crankset	FSA CK-745, 15T, 175mm
Motor	Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt)
Shifter	Shimano XT SL-M8000-I, Direct Attach
Cassette	Shimano SLX CS-M7000-11 HG
Aluminum gear pieces 1 (11-40T) 1 (11-42T) 2 (11-46T) Aluminum spider arm finish Anodized Aluminum spider arm pieces 1 Combination names 11-40T 11-42T 11-46T Compatible chain HG 11-speed, LG Lock ring finish Plated Lock ring material Steel Model CS-M7000-11 Steel gear finish Shot-Ni Steel gear pieces 10 (11-40T) 10 (11-42T) 9 (11-46T) Type HG Weights 11-40T: 450g 11-42T: 476g 11-46T: 482g
Chain	KMC X11
Rear derailleur	Shimano RD-M8000-SGS 275 g SGS 11s
Average weight (g) 275 B axle hollow B axle material Stainless steel Bracket finish Painted Bracket material Aluminum Bracket body finish Painted Bracket body material Aluminum Compatible chain HG-X 11-speed Lower pulley max 40T(3x11-speed), 42T(2x11-speed), 46T(1x11-speed) Lower pulley min 40T Model RD-M8000-SGS P axle material Steel pulley.guide_pulley_bearing Sealed bearing pulley.screws_material Stainless steel pulley.sunken_type_pulley_screw Pulley teeth 11T pulley.tension_pulley_bearing Sealed bearing Pulley cage SGS Speeds 11 Upper pulley max 11T Upper pulley min 11T Total capacity 47T

Frameset
Frame	C:62 Monocoque Advanced Twin Mold Technology, Boost 148, AXH, Full Integrated Battery
Front suspension	RockShox Judy Gold Solo Air
Color Diffusion Black, Gloss Black Damper type Motion Control fork offset 40mm (26"), 42mm (27.5"), 46mm (29"), 51mm (27.5"), 51mm (29") Max tire width (mm) 58, 62, 81 Maximum rotor size 185mm, 210mm Minimum rotor size 160mm Model FS-JDYG-RL-A3 Name Judy Gold RL Spring Solo Air Travel (mm) 100mm, 120mm, 80mm Upper tube type 30mm straight wall aluminum Wheel size 26", 27.5", 29"

Wheels
Rims	CUBE EX30, 32H, Disc, Tubeless Ready
Tires	Schwalbe Nobby Nic, Addix Speedgrip, Kevlar, Tubeless Easy, 2.35
Rear hub	Shimano FH-MT400-B, 12mm, Boost, Centerlock
Front hub	Shimano HB-MT400-B, 15QR, Boost, Centerlock

Follow your favorite drivers

Receive notifications when your favorite riders finish UCI races.

XT 1 × 11

Crank: 15T

Cassette: 11-46T

Speeds: 11s

Gearing

Average

0,33

Average

1,37

Compared to similar bikes, the CUBE ELITE HYBRID C:62 Race 500 29 2019 has an excellent uphill performance and a bad downhill performance.

Report incorrect information

Geometry

Size	17"	19"	21"	23"
a Seat tube length	420,0	470,0	515,0	565,0
b Seat tube angle	73,5º	73,5º	73,5º	73,5º
c Top tube length	591,0	612,0	631,0	651,0
d Head tube length	110,0	120,0	130,0	145,0
e Head tube angle	69,0º	69,0º	69,0º	69,0º
f Rake	52,0	51,0	51,0	51,0
g Trail	88,0	89,0	89,0	89,0
h Wheelbase	1145,0	1167,0	1187,0	1208,0
i Chainstay length	478,0	478,0	478,0	478,0
j Bottom bracket drop	65,0	65,0	65,0	65,0
k Stack height	621,0	630,0	640,0	654,0
l Reach	407,0	426,0	442,0	458,0
m Standover height	-	-	-	-
x Bottom bracket height	309,0	309,0	309,0	309,0
y Front center	675,0	697,0	716,0	737,0
