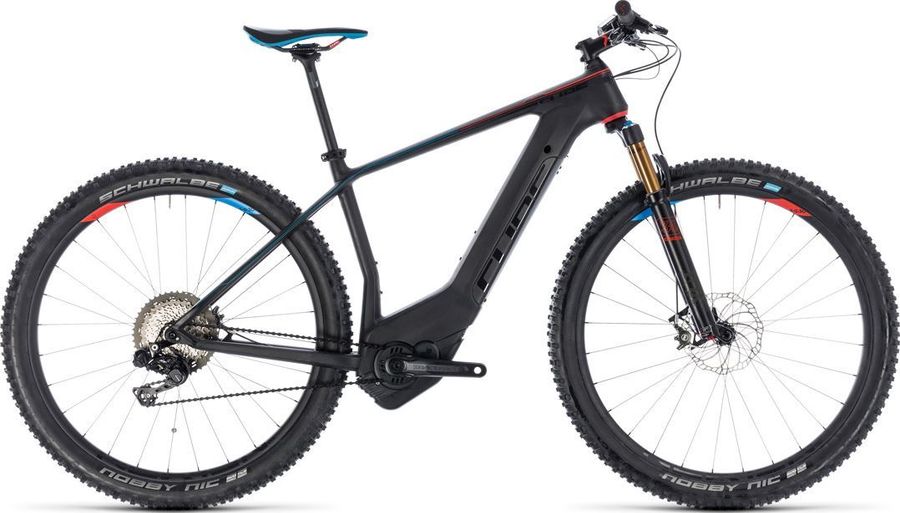

CUBE ELITE HYBRID C:62 SLT 500 29 2018
The CUBE ELITE HYBRID C:62 SLT 500 29 2018 is an electric-bike. E-bikes are bicycles with a battery-powered assist that comes via pedaling, so when you push the pedals a motor engages and gives you a boost.
E-Bike
Groupset
Shimano XT Di2
Frame material
Carbon
Wheel size
29"
Suspension type
Hardtail
Weight
19,3 kg
Front travel
100mm
About the CUBE ELITE HYBRID C:62 SLT 500 29 2018
The CUBE ELITE HYBRID C:62 SLT 500 29 2018 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a Shimano XT Di2 drivetrain of 11 gears (1x11). Its features include boost 110 , boost 148, and hydraulic disc brakes. The bike weighs approximately 19,3 kg.
Features
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Tubeless ready
More info
Tubeless ready
Specifications
|
Grip
|
CUBE Race Grip 31, 1-Clamp
|
|---|---|
|
Remote
|
Bosch Purion
|
|
Steam
|
Newmen Evolution SL 318.4, 31.8mm
|
|---|---|
|
Saddle
|
CUBE Race SL Carbon 145
|
|
Battery
|
Bosch PowerTube 500
|
|
Headset
|
FSA Orbit I-t, Integrated, Top 1 1/8", Bottom 1 1/2"
|
|
Seatpost
|
Newmen Advanced Carbon, 30.9mm
|
|
Handlebar
|
Newmen Advanced SL 318.0 Carbon, 740mm
|
|
Brakes
|
Magura MT8
|
|
Crankset
|
Race Face Aeffect, 170mm, 15T
|
|---|---|
|
Motor
|
Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt)
|
|
Shifter
|
Shimano XT Di2 SW-M8050-R
|
|
Cassette
|
Shimano Deore XT CS-M8000
HG
|
|
11-42T 11-46T 11-42T: 434g 11-46T: 437g |
|
|
Rear derailleur
|
Shimano Deore XT RD-M8050 Di2
|
|
Chain
|
KMC X11
|
|
Frame
|
C:62 Monocoque Advanced Twin Mold Technology, Boost148, AXH, FIB
|
|---|---|
|
Front suspension
|
Fox 34 Float Factory Kashima
|
|
Rims
|
Newmen Evolution SL A.30, 28/28 Spokes, 15x110mm / 12x148mm, Tubeless Ready
|
|---|---|
|
Tires
|
Nobby Nic Kevlar 2.60, Addix Speedgrip, Tubeless Easy
|
Geometry
| Size | 17" | 19" | 21" | 23" |
|---|---|---|---|---|
|
a
Seat tube length
|
420,0
|
470,0
|
515,0
|
565,0
|
|
b
Seat tube angle
|
73,5º
|
73,5º
|
73,5º
|
73,5º
|
|
c
Top tube length
|
591,0
|
612,0
|
631,0
|
651,0
|
|
d
Head tube length
|
110,0
|
120,0
|
130,0
|
145,0
|
|
e
Head tube angle
|
69,0º
|
69,0º
|
69,0º
|
69,0º
|
|
f
Rake
|
52,0
|
51,0
|
51,0
|
51,0
|
|
g
Trail
|
88,0
|
89,0
|
89,0
|
89,0
|
|
h
Wheelbase
|
1145,0
|
1167,0
|
1187,0
|
1208,0
|
|
i
Chainstay length
|
478,0
|
478,0
|
478,0
|
478,0
|
|
j
Bottom bracket drop
|
65,0
|
65,0
|
65,0
|
65,0
|
|
k
Stack height
|
621,0
|
630,0
|
640,0
|
654,0
|
|
l
Reach
|
407,0
|
426,0
|
442,0
|
458,0
|
|
m
Standover height
|
-
|
-
|
-
|
-
|
|
x
Bottom bracket height
|
309,0
|
309,0
|
309,0
|
309,0
|
|
y
Front center
|
675,0
|
697,0
|
716,0
|
737,0
|
