CUBE FRITZZ 180 HPA Race 27.5 2017

MTB Enduro
Groupset
SRAM X1
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
14,05 kg
Front travel
180mm
Rear travel
180mm

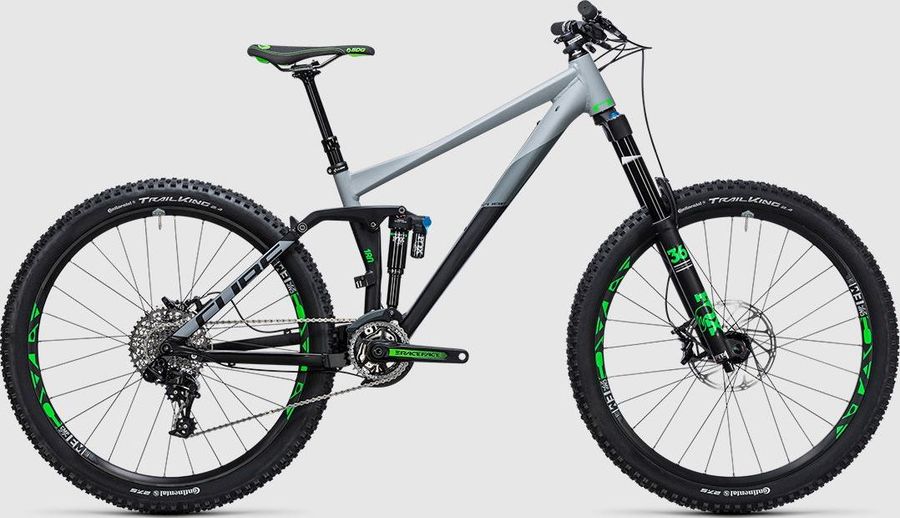

CUBE FRITZZ 180 HPA Race 27.5 2017

About the CUBE FRITZZ 180 HPA Race 27.5 2017

The CUBE FRITZZ 180 HPA Race 27.5 2017 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a SRAM X1 drivetrain of 11 gears (1x11). Its features include dropper seatpost, hydraulic disc brakes, and tapered head tube. The bike weighs approximately 14,05 kg.

Features

The CUBE FRITZZ 180 HPA Race 27.5 2017 has 4 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
CUBE Race Grip, 1-Clamp
Components
Steam
Race Face Ride 35
Saddle
SDG FLY MTN 2
Headset
FSA 1.5E ZS, Tapered, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
Seatpost
CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm, 458x150mm (400x120mm for smallest frame size)
Handlebar
Race Face Chester 35, 780mm
Brakes
SRAM Guide R Hydraulic 392 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-R-B1
Name
Guide R
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
392
Drivetrain
Chain
SRAM 11-Speed
Crankset
Race Face Aeffect SL 32T, 175mm
Shifter
SRAM GX Trigger
Front derailleur
e*thirteen TRS 1X Chain Guide, ISCG05
Cassette
SRAM XG-1150 11s
Cog finish cassete
Black
Cog sizes
10-42t:10,12,14,16,18,21,24,28,32,36,42
Gearing
10-42t
Model
CS-XG-1150-A1
Name
XG-1150 FULL PIN Cassette
Speed
11s
Technology cassete
XG
Rear derailleur
SRAM X1 X-HORIZON Rear Derailleur 11s 256 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Black
Max tooth
42
Model
RD-X-1-A2
Name
X1 X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
11s
Weight
256
Frameset
Frame
HPA Ultralight, Advanced Hydroform, Triple Butted, ETC 4-Link, ISCG Mount, AXH
Front suspension
Fox 36 Float
Rear suspension
Fox Float X Performance
Wheels
Rims
Answer Atac EM, 15mm / X12, 584x25C, Tubeless Ready
Tires
Conti Trail King, folding, 2.4

Geometry

Size 16" 18" 20" 22"
a
Seat tube length
390,0
400,0
450,0
500,0
b
Seat tube angle
74,7º
74,7º
74,7º
74,7º
c
Top tube length
577,0
597,0
615,0
626,0
d
Head tube length
113,0
123,0
133,0
153,0
e
Head tube angle
65,5º
65,5º
65,5º
65,5º
f
Rake
43,0
44,0
44,0
44,0
g
Trail
115,0
114,0
114,0
114,0
h
Wheelbase
1181,5
1202,5
1221,6
1234,6
i
Chainstay length
448,0
448,0
448,0
448,0
j
Bottom bracket drop
4,0
4,0
4,0
4,0
k
Stack height
616,0
625,0
634,0
652,0
l
Reach
417,0
433,0
448,0
453,0
m
Standover height
-
-
-
-
x
Bottom bracket height
351,0
351,0
351,0
351,0
y
Front center
734,0
755,0
774,0
787,0
