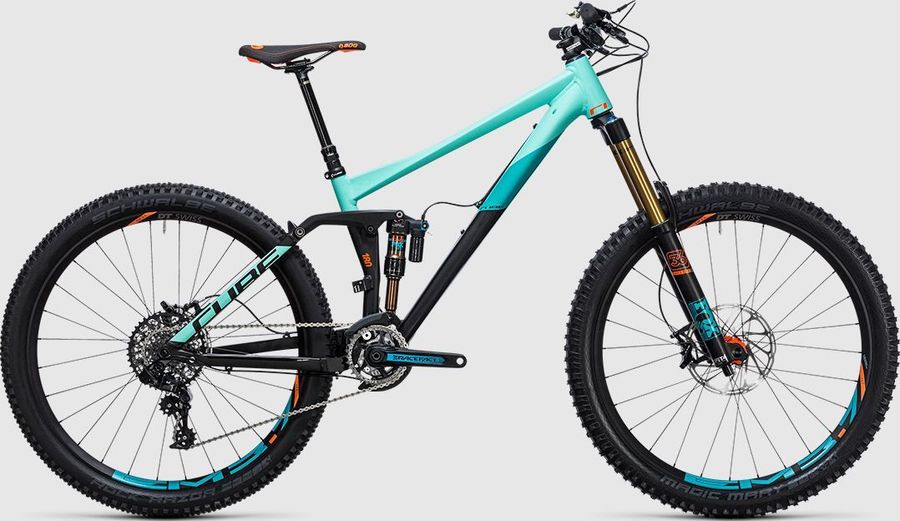

CUBE FRITZZ 180 HPA SL 27.5 2017

MTB Enduro
Groupset
SRAM X1
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
14,25 kg
Front travel
180mm
Rear travel
180mm
CUBE FRITZZ 180 HPA SL 27.5 2017

About the CUBE FRITZZ 180 HPA SL 27.5 2017

The CUBE FRITZZ 180 HPA SL 27.5 2017 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a SRAM X1 drivetrain of 11 gears (1x11). Its features include dropper seatpost, hydraulic disc brakes, and tapered head tube. The bike weighs approximately 14,25 kg.

Features

The CUBE FRITZZ 180 HPA SL 27.5 2017 has 4 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
CUBE Race Grip, 1-Clamp
Components
Steam
Race Face Ride 35
Saddle
SDG Fly MTN 2
Headset
Cane Creek 40.ZS44 / 40.ZS5640
Seatpost
Rock Shox Reverb Stealth 31.6mm, 440x150mm (390x125mm for smallest frame size)
Handlebar
Race Face Chester 35, 780mm
Brakes
SRAM Guide RS Hydraulic 384 g
Application
MTB
Blade material
Aluminum - Forged, Carbon
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-RS-B1
Name
Guide RS
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
384
Drivetrain
Chain
SRAM 11-Speed
Crankset
Race Face Aeffect SL 32T, 175mm
Shifter
SRAM X1 Trigger
Front derailleur
e*thirteen TRS+ 1X Chain Guide, ISCG05
Cassette
SRAM XG-1175 11s 325 g
Cog finish cassete
Black
Cog sizes
10-42t:10,12,14,16,18,21,24,28,32,36,42
Gearing
10-42t
Model
CS-XG-1175-A1
Name
XG-1175 FULL PIN Cassette
Speed
11s
Technology cassete
XG
Weight
325
Rear derailleur
SRAM X1 X-HORIZON Rear Derailleur 11s 256 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Black
Max tooth
42
Model
RD-X-1-A2
Name
X1 X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
11s
Weight
256
Frameset
Frame
HPA Ultralight, Advanced Hydroform, Triple Butted, ETC 4-Link, ISCG Mount, AXH
Rear suspension
Fox Float X Factory
Front suspension
Fox 36 Float Factory Kashima
Wheels
Rims
DT CSW EM 3.7 Straightpull Wheelset, 28/28 Spokes, 20mm / X12, 584x30C Tubeless Ready, DT Swiss Pro Head® Reinforcement System, Squorx® Alloy Nipples
Tires
Schwalbe Magic Mary 2.35, Super Gravity, VertStar Tubeless Easy

Geometry

Size 16" 18" 20" 22"
a
Seat tube length
390,0
400,0
450,0
500,0
b
Seat tube angle
74,7º
74,7º
74,7º
74,7º
c
Top tube length
577,0
597,0
615,0
626,0
d
Head tube length
113,0
123,0
133,0
153,0
e
Head tube angle
65,5º
65,5º
65,5º
65,5º
f
Rake
43,0
44,0
44,0
44,0
g
Trail
115,0
114,0
114,0
114,0
h
Wheelbase
1181,5
1202,5
1221,6
1234,6
i
Chainstay length
448,0
448,0
448,0
448,0
j
Bottom bracket drop
4,0
4,0
4,0
4,0
k
Stack height
616,0
625,0
634,0
652,0
l
Reach
417,0
433,0
448,0
453,0
m
Standover height
-
-
-
-
x
Bottom bracket height
351,0
351,0
351,0
351,0
y
Front center
734,0
755,0
774,0
787,0
